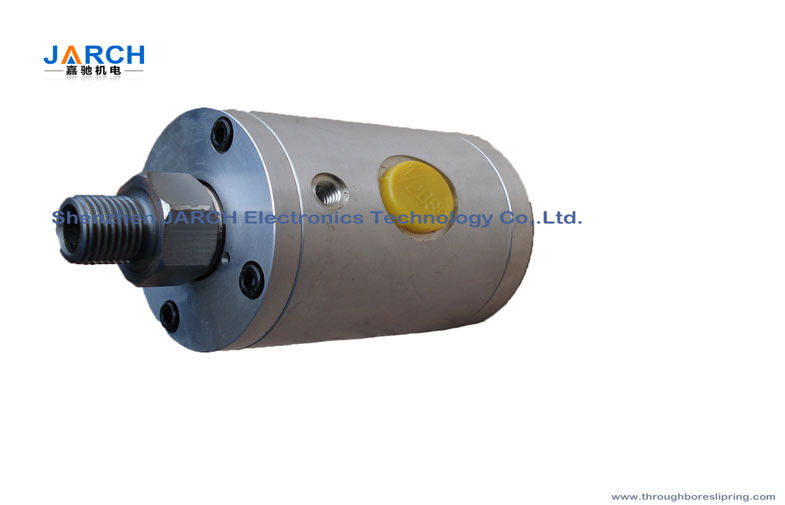

3000rpm High Speed Hydraulic Rotary Joint 1 Passage Threaded Connection for Gas Water
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Price:||US $ 100 - 300 / Piece|
|Packaging Details:||Gift box|
|Delivery Time:||5-10 days|
|Payment Terms:||Ex works, L/C,T/T, Western Union|
|Material:||Stainless Steel||Size:||1/4" - 1 1/2"|
|Max Speed:||3000RPM||Max Water Pressure:||500 Bar|
hydraulic rotary joint,
hydraulic rotary coupling
3000rpm High Speed Hydraulic Rotary Joint 1 Passage Threaded connection for Gas Water
1. Ideal for high pressure and high speed hydraulic oil and air
2. The maximum working temperature is at 100 °C
3.Long service life with easy field repair and maintenance
4.Available in both thread and flange connection
5.Max pressure could be 500bar
|Place of Origin:||Shenzhen China||Model Number:||JSR-RJ-BC|
1 Passage,Threaded connection , Gas,Water, 3000rpm High Speed Hydraulic Rotary Joint
Packaging & Delivery:
|Packaging Details:||Standard Export carton Package|
Order 15 days after got the payment
A rotary joint, also referred to as a rotary joint or rotating joint, provides a mechanical seal between a stationary supply pipe and a rotating drum or cylinder to permit the flow of heat transfer media into and/or out of the rotating roll. Heat transfer media typically used with rotary joints and rotating joints include steam,water,hermal oil,coolant,air,hydraulic oil.
BC series rotary joint consists of two large precision bearings and seals principles of design using smooth, sealed bearing and wear to a minimum, extend the service life.
- Simple structure, standard product, rapid delivery;
- Two precision bearings support to ensure long-term trouble-free operation;
- Balanced mechanical seal design, reducing the load on the sealing surface of the seal wear, greatly extend the service life;
- Narrow sealing surface friction minimum;
- Standard silicon carbide pairing graphite sealing surface, can be set according to the customer with the condition;
- Anti-corrosion materials, long-term use complex conditions;
- Housing is provided with the observation hole, and friction can be observed leaks case
BC series can provid max 3000rpm ,1.1Mpa colling water or compressed air.
BCD Series--Duplex wth fixed internal pipe(Use in fixed siphon)
BCR Series--Duplex wth rotating internal pipe(Use in revolvin siphon)
Primary Industries:Chemical • printing • rubber • metals • textiles • plastics • food • paper •
machine tools • building materials • construction equipment
Your Rotary Systems rotary union is a precision component which, when installed properly, will provide a long, leak free life. Please follow these general guidelines when installing your union:
Rotary Systems unions should always be installed using flexible connections. To avoid damage to the bearings, the union needs to find its center during operation. It is imperative that either the shaft or the housing is not hard-piped.
The housing of the union should be held in a vise and the flexible connection should be installed before installing the union to the machine.
Clean female threads and face of shaft prior to installation. Use Teflon pipe tape or pipe sealant on NPT threads. As a guideline, NPT threads should be hand tight plus 1- 3 turns to seal the threads. When installing parallel threads, appropriate gaskets or o-rings should be used.
There should be a slight, kink-free curve in the hose when installed on the equipment. It is essential the housing or shaft is allowed to float to compensate for any eccentricities and/or misalignment.
In many instances, the flexible hose connections are used for anti-rotation. Other applications require an external device for anti-rotation such as a fork around the fittings, pin, yoke or bracket. Anti-rotation devices need to “float” to prevent damage to the union.
To prevent damage to the shaft or the seals, Rotary Systems requires filtration to 10 microns or less. Failure to do so may invalidate your warranty and cause premature failure.
If your union has grease fittings, lubricate union with no more than two pumps of appropriate grease per fitting.
Jarch main products:
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
|Q1: Are you a factory or a trading company?|
|A: We are a professional manufactory with High-level R & D team.|
|Q2: How many types of the slip rings do you have?|
|A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
|Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.|
|A: Yes, we can supply mixed signals slip rings as your request.|
|Q4: what's the working life of your slip rings.|
|A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
|Q5: Do you supply OEM and ODM ?|
|A: Yes, we supply OEM and ODM.|
|Q6: What technical data should be provided for our customized slip ring model.|
A: If you want to costomize the special slip ring model, you need provide details as below:
d.channels(the No. of single wire besides cable)
f.the signal type and related
g.operating temperature h.IP(sealing requirements)
|Q7: How long is your production lead time?|
|A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
|Q8: What's your delivery port?|
|A: Our delivery port is Shenzhen|
|Q9: How do you delivery our goods?|
|A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
|If you have any other question, pls contac us without any hesitation.|
