Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-MQR6-M5

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 350 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 100pcs/week
Get Best Price Contact Now

Detail Information

Material: Aluminum Rotor Material: Aluminum
Size: M5 Connection: M5 Screw
Medium: Air Max Speed: 3000RPM
Max Pressure: 0.8Mpa Max Temperature: 80℃
Passage Quantity: 6
High Light:

3000RPM Aluminum RF Rotary Joint

,

5A RF Rotary Joint

,

M5 Screw RF Rotary Slip Ring

Product Description

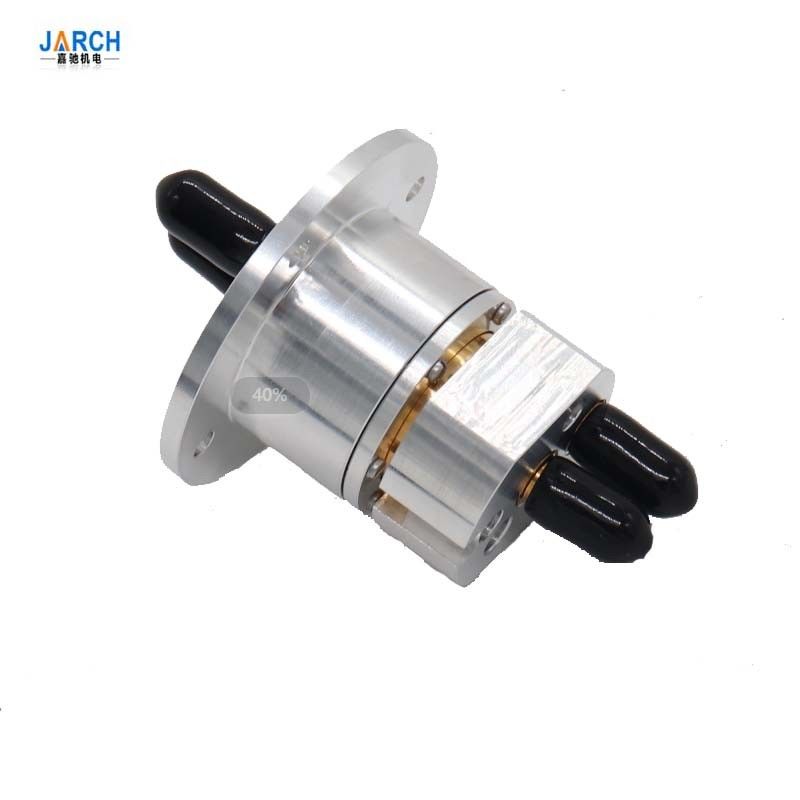

RF Coaxial Connector 2 channel 4GHz DC current 5A RF rotary joint RF rotary slip ring manufacturer



Description:



RF Coaxial Connector refers to an element which installed on the cable or instrument as transmitting or breaking the line of electrical connections. Also, it belongs to Mechanical & Electrical Integration product.





Contact part adopts rare metal and solid gold plating process, the slip ring of long wear-resisting and antioxidant properties, and ensure the slip ring long service life effectively.



The contact pairing material and its shape makes the signal transmission reliable and continuative even in the application where precision is required in the transmission of the signal





Quick Details:

Material: Aluminum Technics:  Type: Coupling
Place of Origin: Shenzhen, China

 Model Number: JSR-MQR6-M5

Brand name: JARCH
Connection: M5 Screw Shape: round Head Code: round
Size: M5   Medium: compressed air Rotor material: Aluminum
Max speed: 3000RPM Max pressure: 0.8Mpa Max temperature: 80℃
























RF Coaxial Connector 2 channel 4GHz DC current 5A RF rotary joint RF rotary slip ring manufacturer



RF rotary joint is used in devices that rotate continuously, and transmit high frequency and high speed rate signal from stationary part to rotating part. This kind of slip ring is compact in structure and easy to integrate into other devices. It is reliable in performance and excellent in shielded effect.

Meanwhile, RF coaxial connector also enjoys a good function of processing signal besides the performance that mentioned above. For example, Filtering, phase-modulation, frequency mixing, attenuation, detection and so forth. Furthermore, the low VSWR and wastage could better satisfy the needs of weapon system and precise measurement instrument.



Benefits:



1.Standard products, may replace completely SMC MQR series products,the size is the same.

2.It is metal sealed structure, low torque.

3. Its speed is up to 200-3000 rpm

4.Long lifetime,it is up to 50 million revolutions.



RF Coaxial Connector 2 channel 4GHz DC current 5A RF rotary joint RF rotary slip ring manufacturer


Dimensions:



3000RPM Aluminum 5A RF Rotary Joint 2 Channel 4GHz M5 Screw 0

Contact Us:

3000RPM Aluminum 5A RF Rotary Joint 2 Channel 4GHz M5 Screw 1
Applications:

• Auto Machine

•Robot

•Dyeing, Rubber, Plastics, Chemical,Machine tool



Installation Instructions:

Your Rotary Systems rotary union is a precision component which, when installed properly, will provide a long, leak free life. Please follow these general guidelines when installing your union:
Connections
Rotary Systems unions should always be installed using flexible connections.  To avoid damage to the bearings, the union needs to find its center during operation.  It is imperative that either the shaft or the housing is not hard-piped.
The housing of the union should be held in a vise and the flexible connection should be installed before installing the union to the machine.
Clean female threads and face of shaft prior to installation. Use Teflon pipe tape or pipe sealant on NPT threads. As a guideline, NPT threads should be hand tight plus 1- 3 turns to seal the threads. When installing parallel threads, appropriate gaskets or o-rings should be used.
There should be a slight, kink-free curve in the hose when installed on the equipment. It is essential the housing or shaft is allowed to float to compensate for any eccentricities and/or misalignment.

Anti-rotation
In many instances, the flexible hose connections are used for anti-rotation. Other applications require an external device for anti-rotation such as a fork around the fittings, pin, yoke or bracket.  Anti-rotation devices need to “float” to prevent damage to the union.
Filtration
To prevent damage to the shaft or the seals, Rotary Systems requires filtration to 10 microns or less.  Failure to do so may invalidate your warranty and cause premature failure.
Lubrication
If your union has grease fittings, lubricate union with no more than two pumps of appropriate grease per fitting.



Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
