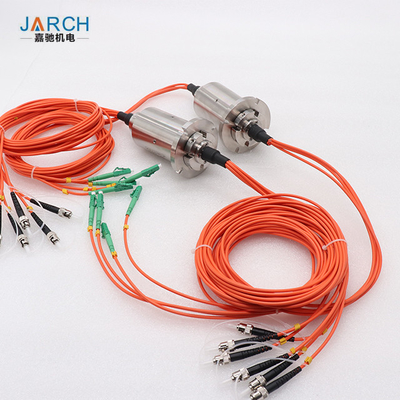

Multi-Channels Fiber Optic Rotary Joint High Speed With S304 Housing IP68 Single channel six channels
Product Details:
| Place of Origin: | Shenzhen , China |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-FE-rotary joint |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Gift box or custom packing |
| Delivery Time: | 20 days |
| Payment Terms: | Ex works, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 20pcs/week |
|
Detail Information |
|||
| Housing Material: | Aluminum | Channnel: | 4 |
|---|---|---|---|
| Optical Power Handling: | 690/ 220V | Max Speed: | 150RPM |
| Estimated Cycle: | 200-400 Million Revolutions | Dimention: | Stator: 5m ; Rotor: 1m |
| Protection: | IP55,IP68 | Weight: | 2500g/pcs |
| Name: | 4 Channels FORJ Slip Ring IP65 Fiber Optic Cable Joint With Stainless Steel House | ||
Product Description

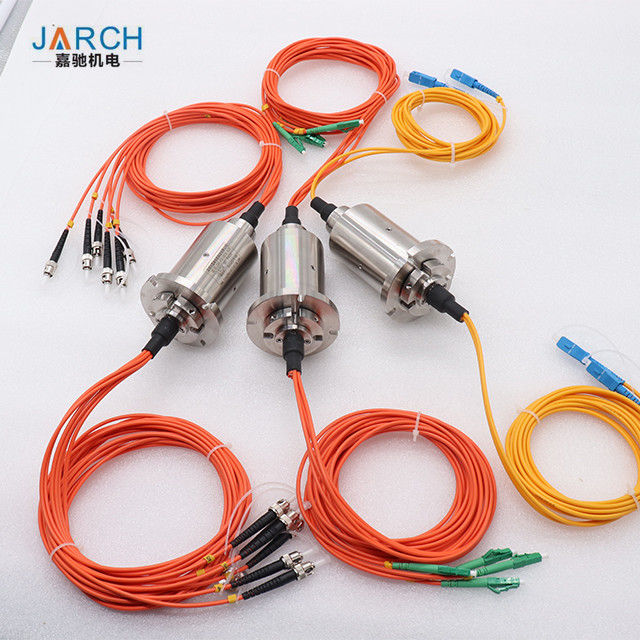

JARCH Multi-Channels Fiber Optic Rotary Joint High Speed With S304 Housing IP68 Single channel six channels
Feature:
1. Fiber Optic Rotary Joints are to optical signals
2. It covers single mode single channel, single mode multi channel and multi mode multi channel.
3. Optical signal only or hybrid unit(optical+electric) is transmitted
4. Capsule and through bore fiber optic rotary joints are available
5. OEM and ODM are welcome
Description:
Fiber Optic Rotary Joints (FORJ) are to optical signals what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. JARCH has been producing Fiber Optic Rotary Joints for over 10 years.
Benefits:
- Using light signal transmission, no electromagnetic leakage.
- Good sealing.
- Resistance to electromagnetic interference
- No contact transmission, no wear and tear.
- Long life, can be up to 10 million RPM.
- No friction, can be used in inflammable and explosive environment.
- Can be used in extreme natural environment.
- High magnetic current interference, also can work normally.
Dimensions:
Specifications:
| Wavelength range | 1310/1550 nm | Insertion loss | <4.0dB |
| Insertion loss ripple | <2.0dB | Return loss (SM) | ≥40 dB |
| Maximum speed | ≤150 rpm | Pulling strength | 3 N |
| Start up torque | <0.01 Nm | Estimated life cycle | 200-400 million revolutions |
| Optical power handling | 23 dBm | Working temperature | -40°C to +70 °C |
| Storage temperature | -50°C to +80 C°C | Package style | Pigtails on both ends |
| Housing material | Stainless steel | Fiber types | SM 3mm Fiber |
| Connector types | FC, SC, ST, SMA, or LC | Dimensions | 10mm dia. |
| Estimated life cycle | 50-80million | IP rating | IP65 |
| Vibration | MIL-STD-167-1A | Mechanical shock | MIL-STD-810G |
Fiber Length:
Stator: 5m (SM FO with ST/PC termination)
Rotor: 1m (SM FO with ST/PC termination)
Applications:
• Between in undersea robot and control ship
• Between in radar antenna and on-board signal processing system
• With the chariot rotating tower car body console
• Between in welding robot and console
• Remote mechanical input and output devices and control
• The photoelectric theodolite
• The connection between the platform and spacecraft tracking
Installation Instructions:
JARCH main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
4. Hybrid slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
7. Capsule slip ring series
8. Pancake slip ring series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
12.Retractable Hose Reel
13.Wind turbine slip ring series
14.Ethernet slip ring series
15.Explosion proof slip ring series
16.Mercury slip ring series
17. Slip Ring Carbon Brush
18.Collector Ring Assembly
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 14 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 15 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
FAQ
A:
If you want to costomize the special slip ring model, you need provide details as below:
a. Operatring speed(RPM)
b. The type of installation
c. Outline size
d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings
f. The signal type and related parameters(very important)
g. Operating temperature h.IP(sealing requirements)
2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
