SM Single-channel Micro fiber optical rotating joint slip rings

SM Single-channel Micro fiber optical rotating joint slip rings

Product Details:

Place of Origin: China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-FO-0122HS

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US$200-1000/pcs
Packaging Details: Standard Export Package
Delivery Time: Sample 1 days / Order depends on quantity
Payment Terms: D/P, T/T, Western Union,paypal
Supply Ability: 1000pcs/week
Get Best Price Contact Now

Detail Information

Wavelength Range: 650-1650 Nm Insertion Loss:: <2.0dB (normal: <0.5dB)
Insertion Loss Ripple: <+/-0.25 DB (typical: +/-0.15 DB) Optical Power Handling: 23 DBm
IP Rating: IP 68 For All Models Return Loss (SM&MM): >40 DB(RPT), >30 DB(RFC/RST), >50 DB(RPTA)
Product Name: SM Single-channel Micro Fiber Optical Rotating Joint Slip Rings

Product Description

Multimode 1 Channel Fiber Optic Rotary Joint / FORJ of slip rings with FC Connector



Product Description

1 Channel Fiber Optic Rotary Joints/FORJ



JSR-FO-0122HS series Single-channel (SM or MM) rotary joints(FORJ) are the most versatile designs the market has ever seen. The rugged body allows fiber pigtail, ST, or FC receptacles on either the rotor side or the stator side. One can configure the package to fit his need exactly. The standard base models are RPT, RFC, and FST for pigtails, FC/PC, and ST/PC receptacles.features extremely low insertion loss and impressive return loss performance for both singlemode and multimode fibers.JSR-FO-0122HS are often used with electronic sliprings, call optical-electrical hybrid slipring, transmit power and high speed data.

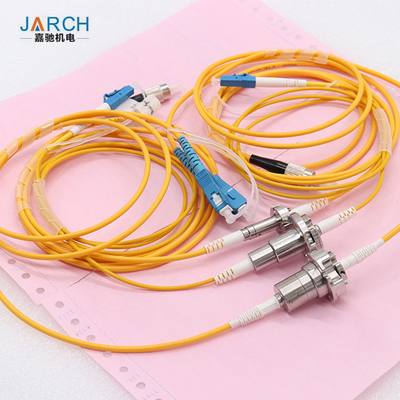

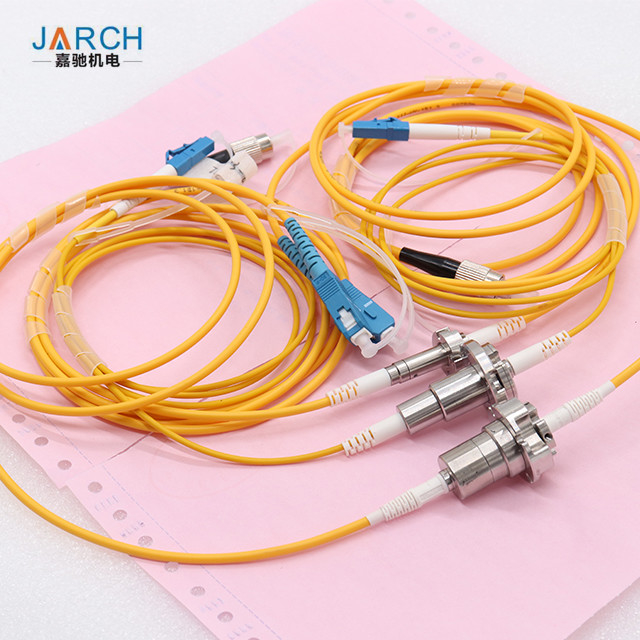

SM Single-channel Micro fiber optical rotating joint slip rings 0

Outline dimension:
SM Single-channel Micro fiber optical rotating joint slip rings 1


SM Single-channel Micro fiber optical rotating joint slip rings 2

Specifications

  • Wavelength range

    650-1650 nm

  • Insertion loss

    <2.5dB (normal: <0.8dB)

  • Insertion loss ripple

    <+/-0.25 dB (typical: +/-0.15 dB)

  • Return loss (SM&MM)

    >40 dB(RPT), >30 dB(RFC/RST), >50 dB(RPTA)

  • Maximum speed

    2000 rpm

  • Pressure compensation

    1000 psi (RPT only; RPC for higher pressure)

  • Pulling strength

    10 N

  • Start up torque

    <0.1 Nm

  • Estimated life cycle

    200-400 million revolutions

  • Optical power handling

    23 dBm

  • Working temperature

    -40 to 85 C

  • Storage temperature

    -50 to 85 C

  • Package style

    Pigtail or receptacles (FC, FC/APC, or ST)

  • Housing material

    Stainless steel

  • Fiber types

    SM/MM, 3 mm Kevlar/PVC or 2.9 mm armore

  • Connector types for RPT

    FC, SC, ST, SMA, or LC (PC and APC)

  • Dimensions

    10 mm dia. (body) x 20 mm dia. (flange)

  • Weight

    ~50 g

  • IP rating

    IP 68 for all models

*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

SM Single-channel Micro fiber optical rotating joint slip rings 3



Insertion loss and temperature changing diagram:

SM Single-channel Micro fiber optical rotating joint slip rings 4

Appication:

1 between in undersea robot and control ship

2 between in radar antenna and on-board signal processing system

3 with the chariot rotating tower car body console

4 between in welding robot and console

5 rmote mechanical input and output devices and control



JARCH main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Retractable Hose Reel

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series

17. Slip Ring Carbon Brush

18.Collector Ring Assembly


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.



FAQ



Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
Remark:
If you have any other question, pls contac us without any hesitation.
