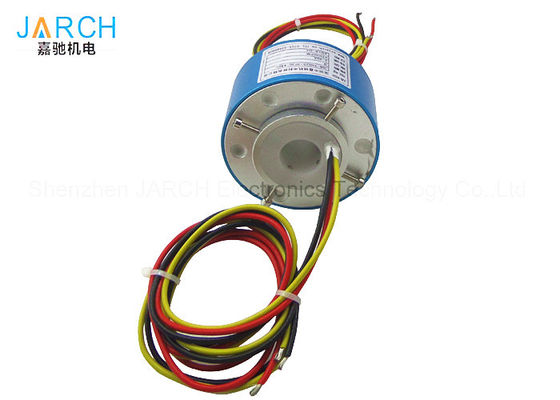

500RPM Wind Turbine Slip Ring Assemblies / Slip Ring Units For Wind Generator,25mm shaft mounted slip ring
Product Details:
Place of Origin: | Shenzhen , China |
Brand Name: | JARCH |
Certification: | CE,FCC,ROHS |
Model Number: | JSR-WS025-5P30 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | negotiation |
Packaging Details: | Gift box or custom packing |
Delivery Time: | 5-10 days |
Payment Terms: | Ex-works, L/C,T/T, Western Union, MoneyGram |
Supply Ability: | 500pcs/week |
Detail Information |
|||
Inner Size: | 25.4mm | Outer Size: | 78mm |
---|---|---|---|
Lead Length: | 300mm | Housing Material: | Aluminium Alloy |
Contact Material: | Precious Metal:Gold-Gold | Lead Wire: | UL Teflon14# Silver Plated Copper,color Coded |
Circuits: | 5 | Current: | 30A Per Circuit |
Voltage: | 380Vac/Vdc | Max Speed: | 500RPM |
Protection: | IP54 | ||
High Light: | high speed slip rings,electrical slip rings |
Product Description
500RPM Wind Turbine Slip Ring Assemblies / Slip Ring Units For Wind Generator.
Feature:
ID/OD:25.4mm/78mm
Circuits:5
Protection:IP54
Low contact wear low contact force
For routing hydraulic or pneumatic lines
Quick Details:
Model Number: | JSR-WS025-5P30 | Inner Size(mm): | 25.4mm |
Outer Size: | 78mm | Circuits: | 5 |
Volt AC/DC(V): | mV~380Vac/Vdc | Current(A): | 30A |
Speed(rpm): | 250~500RPM | Protection: | IP54 |
Packaging & Delivery:
Packaging Details: | Standard Export carton Package |
Delivery Details: |
Delivery time for Sample 3 days / Delivery time for Order depends on quantity |
Description:
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units.It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
JARCH WS Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.
The WS025 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 25.4mm through-bore for routing hydraulic or pneumatic lines.
Benefits:
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery
Dimensions:
Model Explanation:
Specifications:
Rings | 5 | Current | 30A |
Voltage | mV~380 VDC/VAC | Max speed | 500RPM |
Through bore size | 25.4mm(1.0") | Overall diameter | 78mm(3.0") |
Housing Material | Aluminium Alloy | Torque | 0.05N.m;+0.03N.m/6rings |
Working life | 50million | Contact material | Precious Metal:Gold-Gold |
Electrical noise | <5 mΩ | Contact Resistance | <2mΩ |
Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg14 |
Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
Operating Temp. | -40°C to 80°C | Protection | IP54 |
Materials | Lead Free, ROHS | Certified | CE,FCC,UL,ROHS |
Applications:
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
Installation Instructions:
Shaft Mounted
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring series
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
