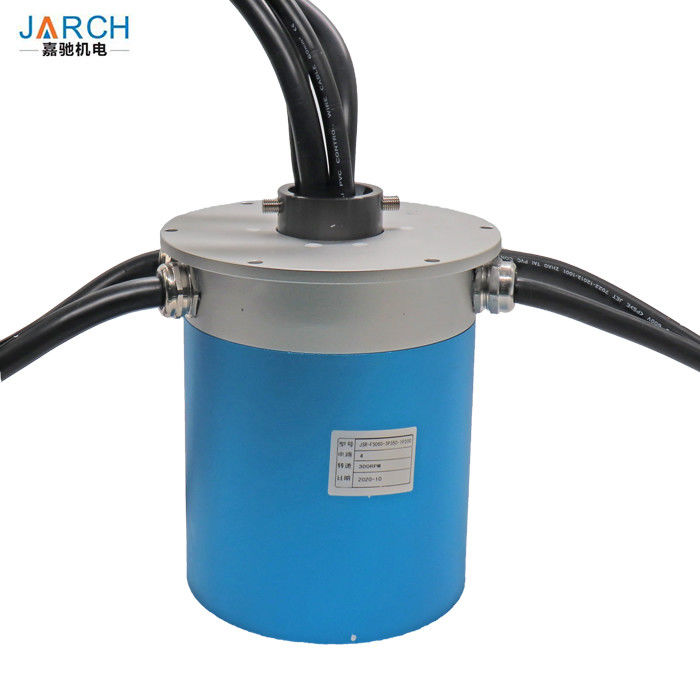

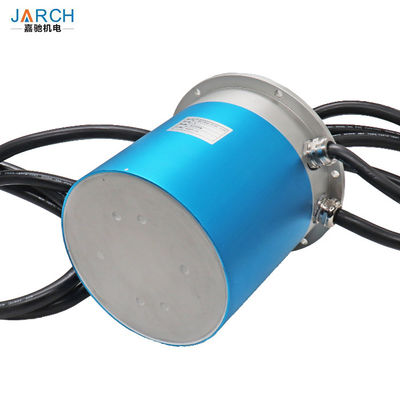

• IP61 Wind Turbine Slip Ring Gold Contact For Offshore Crane
  • IP61 Wind Turbine Slip Ring Gold Contact For Offshore Crane
IP61 Wind Turbine Slip Ring Gold Contact For Offshore Crane

IP61 Wind Turbine Slip Ring Gold Contact For Offshore Crane

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-BC055-5P350

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 10 - 30 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500pcs/week
Get Best Price Contact Now

Detail Information

Housing Material: Alu. Contact Material: Carbon
Current: 350A Voltage: 400Vac/Vdc
Max Speed: 300RPM Outer Size: BOX
Circuits: 5 Circuits Lead Wire: AWG
IP Level: IP61,IP65,IP68
High Light:

IP61 Wind Turbine Slip Ring


Offshore Crane Wind Turbine Slip Ring


Gold Contact Pneumatic Slip Ring

Product Description

High Current Electric Slip Rings For Offshore Crane Machine Gold Contact Pneumatic Slip Ring


The BC050 series high current electric slip rings are designed to provide a cost effective alternative to mercury based electric slip rings. Often used as a rotary electrical connector when a high current needs to be provided to a heating element or similar high current device. With the unique channel brush technology, the contact forces between the slip ring’s brushes and rotor are greatly reduced. This coupled with the multiple brush contact points on the slip ring greatly increase the unit’s life, allowing it to be used on continuously operating machinery.


Quick Details:


Model Number: JSR-BC055-5P350 Inner Size(mm): no hole
Outer Size: BOX Circuits: 5
Volt AC/DC(V): mV~400Vac/Vdc Current(A):  350A
ASpeed(rpm): 300RPM Protection: IP65





5 Circuits 350A Large Current Slip Ring Wind Turbine Slip Rings For Crane Rotary Joint


JARCH high current slip ring , compact through bore slip ring, which is research and development of specializing consume electronics, small wind turbine equipment, revolving stage of lights industry, and the material used gold to gold contact, ensure the stabity and long working life.


JARCH high current slip ring machinery has a strong technology research and development strength and experienced engineers, the company successfully developed the single way of large current collector ring, large current slip ring series products, the maximum current of 800A a/ways.


product transmission performance is stable, high quality, high protection grade, can be widely used in rotating machine, rotary welding machine and other industries.




● Up to hundreds Ampere
● Transfers control and data signals
● Over-long lifetime, no need maintenance, no need lubrication
● Designed for o
ffshore working environment


The Dimensions of Slip Ring Will Be Advised When Rings And  Current Details Are Options . Please Contact JARCH Technical Department.






Rings 2~36 Current 80A
Voltage mV~400 VDC/VAC Max speed 50RPM
Through bore size None Overall diameter Box
Housing Material SS304 Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Carbon
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire Customer Option
Insulation resistance 500MΩ@600VDC Lead Lengths Optional
Operating Temp. -40°C to 80°C Protection IP66
Materials Lead Free, ROHS Certified CE,FCC,UL,ROHS

IP61 Wind Turbine Slip Ring Gold Contact For Offshore Crane 0

5 Circuits 350A Large Current Slip Ring Wind Turbine Slip Rings For Crane Rotary Joint



• Packaging / wrapping machinery

• Industrial machinery

• rotary index tables

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels


Installation Instructions


Shaft Mounted


IP61 Wind Turbine Slip Ring Gold Contact For Offshore Crane 1

JARCH engineers its slip rings for reliability and performance in the field, helping you avoid unplanned downtime. Our slip ring offerings include:

Miniature slip rings
Hollow shaft slip rings
Throughbore slip rings
HD slip rings
High current slip rings
Harsh environment slip rings
Custom slip rings
Quick turn orders, world-class support and competitive pricing are available for all our slip rings.



Flange mounted:


Jarch main products:


1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series

Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?

At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.




Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
If you have any other question, pls contac us without any hesitation.
