12 Circuits 2A Electro optical slip ring 650-1650 nm rotating electrical connector

12 Circuits 2A Electro optical slip ring 650-1650 nm rotating electrical connector

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-FE012-36S-FO1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 500 - 1000 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 100pcs/Month
Get Best Price Contact Now

Detail Information

Housing Material: Stainless Steel Contact Material: Precious Metal:Gold-Gold
Lead Wire: UL Teflon® Awg26,Awg22 Wavelength Range: 650-1650nm
Dimensions: 6.8mm Diameter*28mm Length Insertion Loss: ≤2 DB (typical: <0.5 DB)
Insertion Loss Ripple: <+/-0.25 DB Return Loss: ≥40 DB
Circuits: 12 Pulling Strength: 10 N (900 Um Buffer)
Optic Channel: 1 Max Speed: 2000RPM
High Light:

optical rotary joint

,

fiber optic rotary joints

Product Description

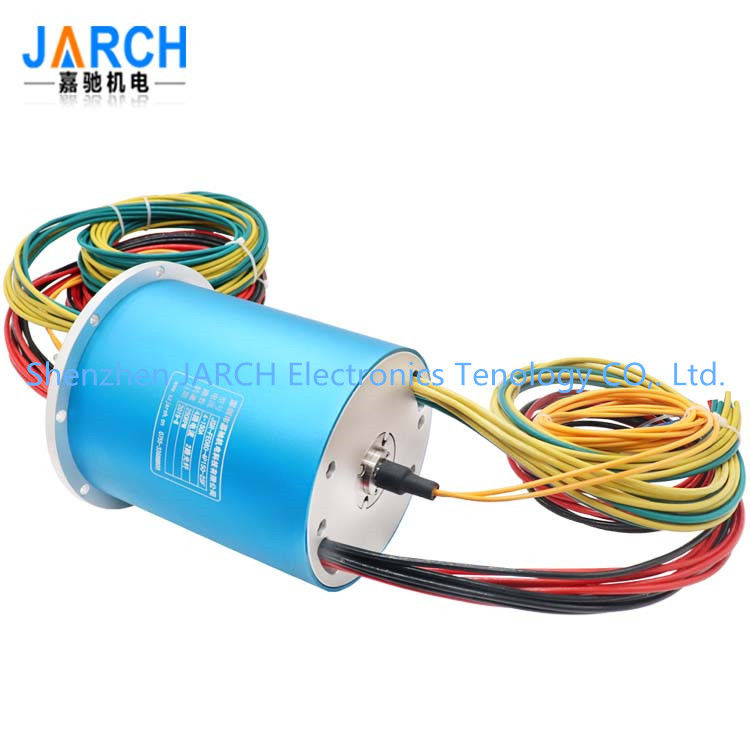

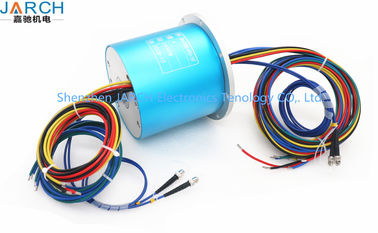

12 Circuits 2A Electro optical slip ring 650-1650 nm rotating electrical connector



Feature:

Electronic-optic hybrid slip ring

Optic channel:1

Fiber type: Single or multimode w/3 mm jacket (Kevlar/PVC)

Circuits:12

Dimension:6.8 mm dia. x 28 mm length



Quick Details:



Model Number: JSR-FE012-12S-FO1 Optic Channnel:  1
Insertion loss ripple: <+/-0.25 dB Wavelength range:   650-1650 nm
Return loss (SM&MM): >40 dB(RPT), Insertion loss:  <2.0dB
Electrical circuits: 12 current: 2A



Packaging & Delivery:



Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......



Description:


Optic-electric slip ring, provides the best technical solutions. Especially in the need to unlimited, continuous or intermittent rotation, and needs from a fixed position to rotate position high capacity data signals transmitted the equipment, can improve mechanical properties, simplified system operation, can cooperate to use with electronic slip rings, call optical-electrical hybrid slipring, transmit power and high speed data.



Benefits:

  • Special fit for fiber optics and electrical circuits.
  • Available in single and multi-channel options
  • 1-125 electric circuits Combination + 1 channel fiber optics

Dimensions:

12 Circuits 2A Electro optical slip ring 650-1650 nm rotating electrical connector 0

Installation Instructions:



12 Circuits 2A Electro optical slip ring 650-1650 nm rotating electrical connector 1



Optic rotary joint Specifications



Wavelength range 650-1650 nm Insertion loss ≤2 dB (typical: <0.5 dB)
Insertion loss ripple <+/-0.25 dB Return loss (SM) ≥40 dB
Maximum speed 2,000 rpm Pulling strength 10 N (900 um buffer)
Start up torque <0.01 Nm Estimated life cycle 200-400 million revolutions
Optical power handling 23 dBm Working temperature -40°C to 85 °C
Storage temperature -50°C to 85 C°C Package style Pigtails on both ends
Housing material Stainless steel Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types FC, SC, ST, SMA, or LC Dimensions 6.8 mm dia. x 28 mm length
Weight 10 g IP rating IP 68 for all models
Vibration MIL-STD-167-1A Mechanical shock MIL-STD-810G



Electrical slip ring Specifications



Rings 12 Current Signal 5A,
Voltage mV~200 VDC/VAC Max speed 1000RPM
Through bore size Fit Optic rotary joint Overall diameter 56mm(2.2")
Housing Material Aluminium Alloy Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54,IP68 optional
Materials Lead Free, ROHS Certified CE,FCC







Applications:



• Between in undersea robot and control ship

• Between in radar antenna and on-board signal processing system

• With the chariot rotating tower car body console

• Between in welding robot and console

• Remote mechanical input and output devices and control

• The photoelectric theodolite

• The connection between the platform and spacecraft tracking
