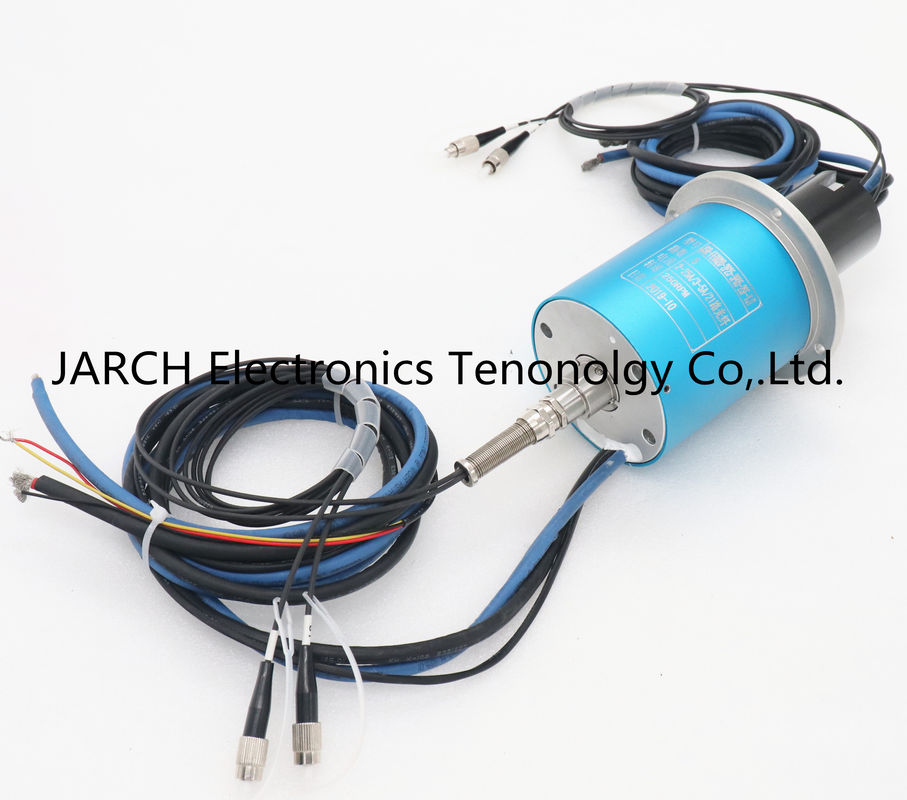

• 4 Circuits 150RPM 1550nm 10A Fiber Optic Rotary Joint
4 Circuits 150RPM 1550nm 10A Fiber Optic Rotary Joint

4 Circuits 150RPM 1550nm 10A Fiber Optic Rotary Joint

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-FE080-6E-2SF

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 500 - 1000 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 15-25 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 50pcs/Month
Get Best Price Contact Now

Detail Information

Housing Material: Stainless Steel Wavelength: 1310-1550nm
Insertion Loss: ≤3 DB (typical: <0.5 DB) Insertion Loss Ripper: <+/-1.5 DB
Return Loss (SM&MM):: ≥40 DB Pulling Strength: 10 N (900 Um Buffer)
Dimensions: 165mm Diameter Fiber Type: Single Or Multimode W/3 Mm Jacket (Kevlar/PVC)
Connector Type: FC, SC, ST, SMA, Or LC Weight: 4000g/pc
Max Speed: 150RPM Circuits: 24-2A
High Light:

10A Fiber Optic Rotary Joint

,

150RPM Fiber Optic Rotary Joint

,

1550nm Fiber Optic Slip Ring

Product Description

Mutil Channels fiber optic rotary joint with 4 circuits 10A of electric optic slip ring



Function:
optic-electric slip ring, provides the best technical solutions. Especially in the need to unlimited, continuous or intermittent rotation, and needs from a fixed position to rotate position high capacity data signals transmitted the equipment, can improve mechanical properties, simplified system operation, can cooperate to use with electronic sliprings, call optical-electrical hybrid slipring, transmit power and high speed data.



Optic-electric Slip Ring
Special fit for fiber optics and electrical circuits.
Available in single and multi-channel options
1-125 electric circuits Combination + 1 channel fiber optics



Feature:

Optical and electrical rotary connection for single mode or multi mode systems;

bidirectional;

Integrated FORJ with electrical slip ring;

Full closed structure;

Able to offer customized solutions



Option:

Lead length

Number of circuits

Fiber type

Connector type

Housing material

Flange dimension



Mutil Channels fiber optic rotary joint with 4 circuits 10A of electric optic slip ring



Quick Details:



Model Number: JSR-FE080-6E-2FS Optic Channnel:  2
Insertion loss ripple: <+/- 1.5  dB Wavelength range:  1310 - 1550 nm
Return loss (SM&MM): >40 dB(RPT), Insertion loss:  <3.0dB
Electrical circuits: 6 current: 2-50A 4-10A



Packaging & Delivery:



Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time:25 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......



Description:


Optic-electric slip ring, provides the best technical solutions. Especially in the need to unlimited, continuous or intermittent rotation, and needs from a fixed position to rotate position high capacity data signals transmitted the equipment, can improve mechanical properties, simplified system operation, can cooperate to use with electronic slip rings, call optical-electrical hybrid slipring, transmit power and high speed data.



Benefits:



  • Special fit for fiber optics and electrical circuits.
  • Available in single and multi-channel options
  • 1-125 electric circuits Combination + 1 channel fiber optics

Dimensions:
 4 Circuits 150RPM 1550nm 10A Fiber Optic Rotary Joint 0


Installation Instructions:



4 Circuits 150RPM 1550nm 10A Fiber Optic Rotary Joint 1

Mutil Channels fiber optic rotary joint with 4 circuits 10A of electric optic slip ring



Optic rotary joint Specifications



Wavelength range 1310-1550 nm Insertion loss ≤3dB (typical: <0.5 dB)
Insertion loss ripple <+/- 1.0dB Return loss (SM) ≥40 dB
Maximum speed 150 rpm Pulling strength 10 N (900 um buffer)
Start up torque <0.01 Nm Estimated life cycle 200-400 million revolutions
Optical power handling 23 dBm Working temperature -40°C to 85 °C
Storage temperature -50°C to 85 C°C Package style Pigtails on both ends
Housing material Stainless steel Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types FC, SC, ST, SMA, or LC Dimensions 165 mm dia.
Weight 4000 g IP rating IP 54 for all models
Vibration MIL-STD-167-1A Mechanical shock MIL-STD-810G



Electrical slip ring Specifications



Rings 6 Current 2-50A 4-10A
Voltage mV~1000 VDC/VAC Max speed 150RPM
Through bore size Fit Optic rotary joint Overall diameter 165
Housing Material Aluminium Alloy Torque 0.15N.m;
Working life 50million Contact material Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54,IP68 optional
Materials Lead Free, ROHS Certified CE,FCC







Applications:



• Between in undersea robot and control ship

• Between in radar antenna and on-board signal processing system

• With the chariot rotating tower car body console

• Between in welding robot and console

• Remote mechanical input and output devices and control

• The photoelectric theodolite

• The connection between the platform and spacecraft tracking



Contact US

4 Circuits 150RPM 1550nm 10A Fiber Optic Rotary Joint 2

Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.



FAQ



Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
Remark:

If you have any other question, pls contac us without any hesitation.
