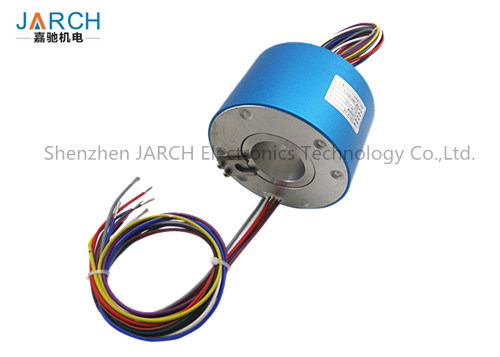

OD 120mm 48 Circuits IP54 Through Bore Electrical Slip Ring For Industrial Machinery Max Speed:3000RPM
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Price:||US $ 75 - 165 / Piece|
|Packaging Details:||Gift box or custom packing|
|Delivery Time:||5-10 days|
|Payment Terms:||Ex-works, L/C,T/T, Western Union, MoneyGram|
|Housing Material:||Aluminium Alloy||Contact Material:||Precious Metal:Gold-Gold|
|Lead Wire:||UL Teflon® Awg26,Awg22,Awg16||Inner Size:||50.1mm|
|Outer Size:||120mm||Lead Length:||300mm|
|Max Speed:||500RPM (1000~3000RPM Optional)||Protection:||IP54/IP68|
rotary slip ring,
rotary electrical interface
Slip Ring Through Bore 50mm, 2~48circuits Slip Ring
|Model Number:||JSR-TH050||Inner Size(mm):||50.1mm|
|Speed(rpm):||250~500RPM(1000RPM Optional)||Protection:||IP54(IP68 Optional)|
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units.It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.
The TH050 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 50.1mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 1-48 ring.
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
The length of Slip Ring Will Be Advised When Rings And Current Details Are Options . Please Contact JARCH Technical Department.
|Rings||2~48||Current||Signal(2A) or 5A/10A/15A/20/30|
|Voltage||mV~380 VDC/VAC||Max speed||500RPM (1000~3000RPM Optional)|
|Through bore size||50.1mm(1.5")||Overall diameter||120mm(4.7")|
|Housing Material||Aluminium Alloy||Torque||0.05N.m;+0.03N.m/6rings|
|Working life||50million||Contact material||Precious Metal:Gold-Gold|
|Electrical noise||<5 mΩ||Contact Resistance||<2mΩ|
|Dielectric strength||1000VDC@50Hz||Lead Wire||UL Teflon® Awg26,Awg22,Awg16|
|Insulation resistance||500MΩ@600VDC||Lead Lengths||300mm(12")|
|Operating Temp.||-40°C to 80°C||Protection||IP54 (IP68 Optional)|
|Materials||Lead Free, ROHS||Certificate||CE,FCC,UL,ROHS|
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
