12V-220V Crane Slip Ring 1M Optional Wire Length 5RPM-5000RPM Rotating Speed
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | JARCH |
| Certification: | CE,FCC |
| Model Number: | JSR-TH series |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | US$50`1000/pcs |
| Packaging Details: | carton box |
| Delivery Time: | 7~15 days |
| Payment Terms: | T/T, D/P |
| Supply Ability: | 10000pcs/year |
|
Detail Information |
|||
| Operating Temperature: | -80~+80 | Through Bore Diameter: | 6MM~500MM |
|---|---|---|---|
| Material: | ALUM.,S304,S316L | Wire Gauge: | 1 |
| Wire Length: | 1M OPTIONAL | Voltage: | 12V~220V |
| Product Name: | Through Bore Slip Ring | Number Of Circuits: | 2~64 |
Product Description
Product Description:

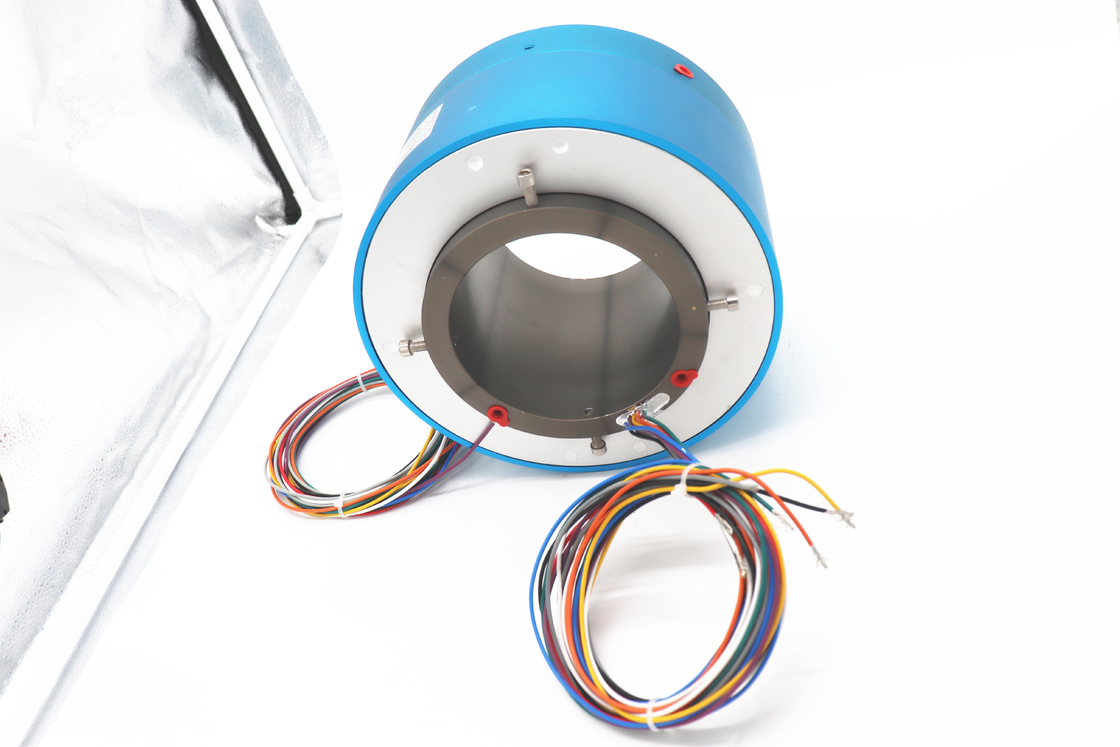

Through Bore Slip Ring
Through Bore Slip Rings are designed for applications that require the transmission of power, signal, and/or data from a stationary to a rotating structure. It is composed of brush holder and electrical ring, and it offers reliable and durable connections for the transmission of electric current and/or signals. The power and signal cables are connected to the ring through the brush holder which can be easily installed, removed, and replaced. This slip ring is suitable for a wide range of applications such as cable reel contactors, electric slip rings, rotary joint, and more.
This slip ring features a through bore design which can suit a variety of applications. It is available in a range of materials such as ALUM., S304, and S316L. Additionally, this slip ring has a wire gauge of 1 and can operate at a temperature range of -80°C to +80°C. It can transmit currents up to 2A, 5A, 10A, 15A, and 20A with a wire length of 1M, which is optional.
Features:
- Product Name: Through Bore Slip Ring
- Current: 2A,5A,10A,15A,20A
- Number of Circuits: 2~64
- Type: METAL
- Through Bore Diameter: 6MM~500MM
- Rotating Speed: 5RPM~5000RPM
- Highly suitable for through bore slip ring, pancake slip ring, electric slip ring, high speed slip ring applications
Technical Parameters:
| Parameter | Description |
|---|---|
| Material | ALUM.,S304,S316L |
| Wire Gauge | 1 |
| Product Name | Through Bore Slip Ring |
| Voltage | 12V~220V |
| Usage | CABLE REEL DRUM,CRANE,DRONE |
| Wire Length | 1M OPTIONAL |
| Rotating Speed | 5RPM~5000RPM |
| Protection Level | IP51~IP68 |
| Operating Temperature | -80~+80 |
| Through Bore Diameter | 6MM~500MM |
| Keywords | Crane Slip Ring, Fiber Optic Slip Ring, Crane Slip Ring |
Applications:
JARCH JSR-TH series Through Bore Slip Rings are designed to meet the needs of the most demanding industry applications. It is an ideal choice for cable reel contactors, cranes, drones and other heavy-duty applications. Our slip rings are made from high quality materials for long life span and low resistance.
This slip ring features a compact design, making it easy to install. It is made from durable materials and is capable of withstanding extreme temperatures. It also features a voltage range of 12V-220V and wire gauge of 1, with optional wire length of 1M.
JARCH JSR-TH series Through Bore Slip Rings are designed to meet the highest industry standards and provide reliable performance in the most demanding conditions. They are also an ideal choice for applications requiring high speed and long life span. Our slip rings are tested to ensure that they perform in a wide range of temperatures and conditions.
For reliable performance in any industrial application, trust JARCH JSR-TH series Through Bore Slip Rings. These slip rings are designed for high speed and long life span, providing superior performance and reliability.
Customization:
JARCH provides customized Through Bore Slip Ring (JSR-TH series) to meet your specific requirements. Our Through Bore Slip Ring features the brand name JARCH, model number JSR-TH series, TF wire type, 5RPM~5000RPM rotating speed, 6MM~500MM through bore diameter, 12V~220V voltage, and usage for cable reel drum, crane, drone, etc.
We specialize in offering a wide range of customized solutions for fiber optic slip ring, cable reel contactors, and moog slip ring. Whether you need a standard Through Bore Slip Ring or something more specialized, our experienced engineers are here to help you find the best solution.
Support and Services:
We offer a full range of technical support and services for our Through Bore Slip Ring product, including:
- Technical support and troubleshooting
- Installation instructions and advice
- Replacement parts and components
- Upgrades and customizations
- Product training and seminars
- Product warranty and guarantee
Our technical support team is available to help you with any issue or inquiry you may have regarding our Through Bore Slip Ring product. You can contact us through phone, email, or our website.
Packing and Shipping:
Through Bore Slip Ring Packaging and Shipping:
The Through Bore Slip Ring is packaged in a sturdy cardboard box to ensure its safety during shipping. We ship the product through a reliable carrier, such as FedEx or UPS, with tracking numbers provided to the customer.
FAQ:
A1: Through Bore Slip Ring is a rotary joint designed by JARCH, with model number JSR-TH series, which is used to transfer electrical power and signals from a stationary to a rotating structure, while allowing the rotation of the shaft.
A2: JARCH Through Bore Slip Ring has the advantages of low contact resistance, low signal transmission loss, high transmission stability, high durability, low temperature rise, and long service life.
A3: The maximum speed of JARCH Through Bore Slip Ring is 1000RPM.
A4: The maximum current capacity of JARCH Through Bore Slip Ring is 20A.
A5: The working temperature of JARCH Through Bore Slip Ring is -40℃ to +60℃.
