Heavy Duty Truck Grounding Reel 50ft Hose Retractable Diesel Fuel Hose Reel
Product Details:
| Place of Origin: | Shenzhen,CN |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-CRH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | USD$250-450/PCS |
| Packaging Details: | Standard Export Paper carton or custom packing |
| Delivery Time: | 5-8 WORKING DAYS |
| Payment Terms: | T/T, MoneyGram, Western Union, D/P,PAYPAL |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| USEGE: | Industrial Equipment,For Oxygen / Acetylene Only | Hose Included: | YES |
|---|---|---|---|
| Hose Length: | 50ft. | Reel Grade: | Heavy Duty |
| Max Pressure: | 500 | Product Name: | Truck Grounding Cable Reel Hose Reels Retractable Spring Diesel Fuel Reel |
| High Light: | Retractable truck grounding reel,Heavy Duty truck grounding reel,50ft retractable diesel fuel hose reel |
||
Product Description

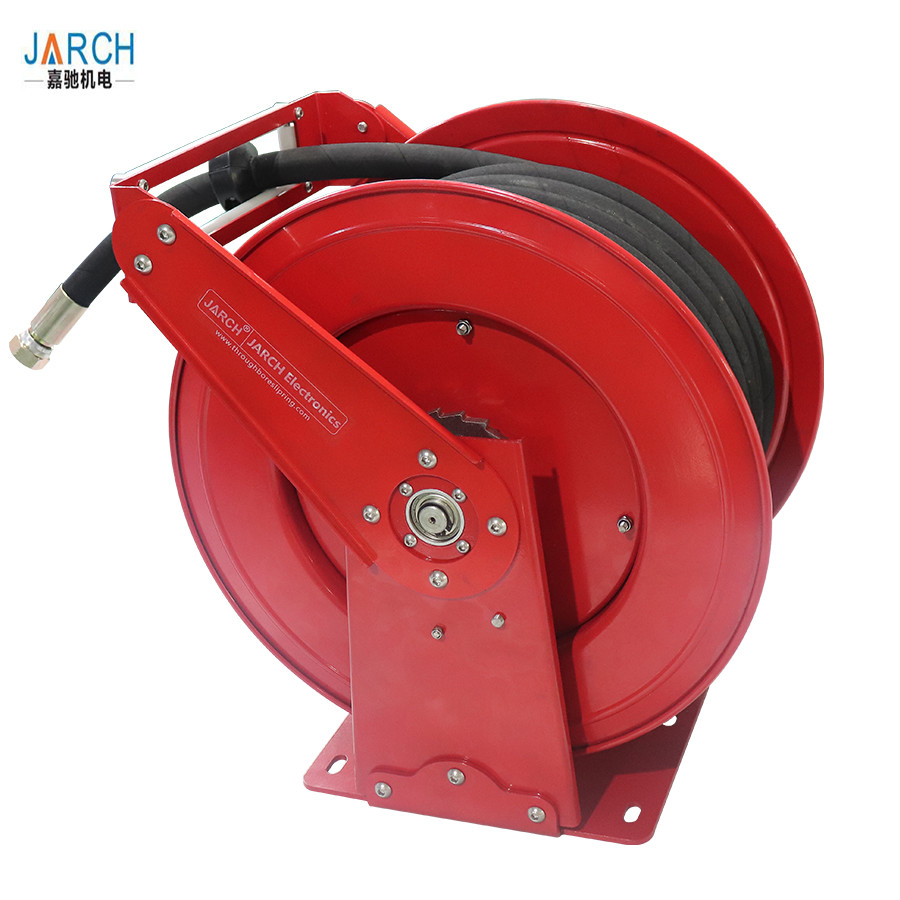

JARCH truck grounding cable reel hose reels retractable spring diesel fuel reel
More details about stainless steel hose reel in PDF click here:stainless steel reel 1-2.pdf
| JARCH’s reels drums offer many different styles of outlets. Easy to mount and structurally strong, the power cord reels have robotically welded heavy gauge steel frame that attaches to most structurally sound surfaces. For indoor/outdoor, non-weather tight applications only. |
Garden hose reels retractable spring water pipe hose reel water truck hose reel
Reel Specifications and Dimensions
| Weight (lbs) | 99 |
| Hose I.D. (in) | 3/8" |
| Hose O.D. (in) | .710 |
| Hose Length (ft) | 50 |
| Pressure (psi) | 200 |
| Hose End (in) | 3/8 NPT(M) |
| Inlet (in) | 3/8 NPT(F) |
| Reel Outlet (in) | 3/8 NPT(F) |
| Hose Included | Yes |
| Max Temperature (°F) | 210 |
| A | 25.375" |
| B | 24" |
| C | 8.125" |
| D | 12.875" |
| E | 10" |
| F | 6" |
Fluid Path Materials |
||||||
|
Benefits
*** Reinforced steel - The stainless steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight;
*** Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel;
*** Long life drive spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life;
*** Quality finish and corrosion resistant - Stainless steel components offer the maximum protection from premature corrosion.
JARCH main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
4. Hybrid slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
7. Capsule slip ring series
8. Pancake slip ring series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
12.Retractable Hose Reel
13.Wind turbine slip ring series
14.Ethernet slip ring series
15.Explosion proof slip ring series
16.Mercury slip ring series
17. Slip Ring Carbon Brush
18.Collector Ring Assembly
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time for Sample: 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
***Can hand crank reels be converted to motor-driven reels?
Yes, JARCH has a number of conversion kits. The reel model and motor type will need to be verified. Listed below are some of the available conversion kits for Series 30000 reels. Contact customer service for more support.
A switch will also be required for all motor driven reels. JARCH has several types of switches and speed controls available. These switches are motor size specific and must be wired properly for the hose reel to function correctly. Have your hose reel model number ready and consult customer service for switch recommendations.
***Can I adjust the guide opening position on an enclosed model hose reel?
- Pull hose out of opening and latch into position.
- Remove (4) nyloc nuts on the cover.
- Pull enclosure off and rotate to desired position.
- Replace cover and tighten the (4) nyloc nuts.
- Pull hose out of opening and latch into position.
- Remove (4) nuts on base.
- Pull cover off and remove rubber inserts.
- Determine desired guide position and replace rubber inserts in slots not being used.
- Place cover on base studs in required position and tighten (4) nuts on base.
If you have any questions, pls contact us without any hesitation.
