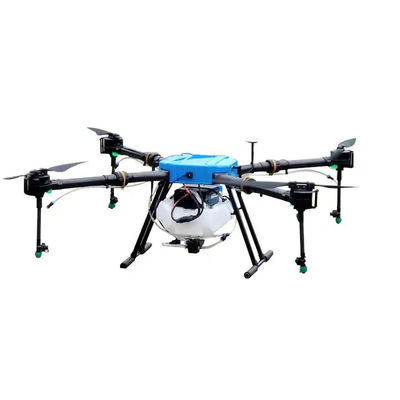

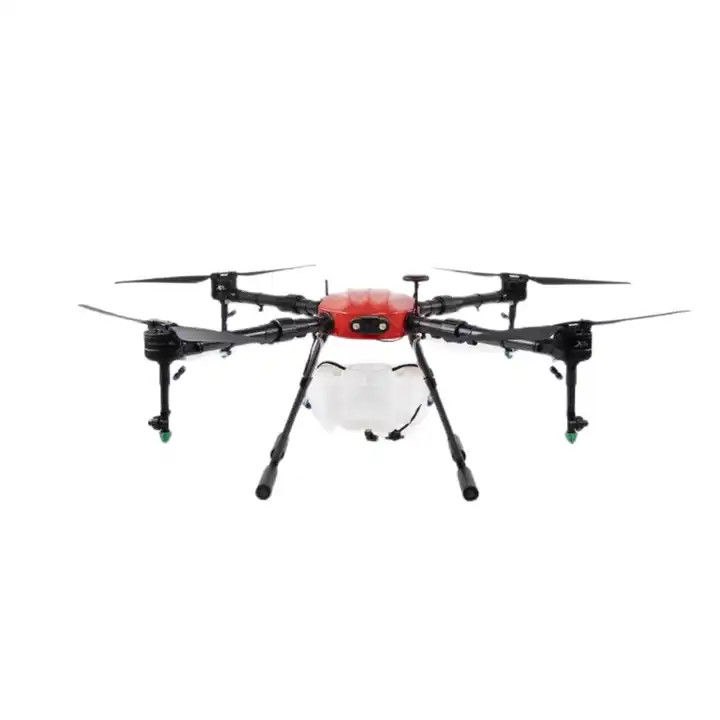

UAV Agras 10L Drone To Fumigate For Plant Irrigation Protection Agricultural Drone Seed Fertilizer
Product Details:
Place of Origin: | China |
Brand Name: | JARCH |
Model Number: | JC-XL4-4000W |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | US$1000~5000.0/SET |
Packaging Details: | WOODEN BOX |
Delivery Time: | 30 DAYS |
Payment Terms: | T/T,PAYPAL,CREDIT CARD |
Supply Ability: | 300 SETS/YEAR |
Detail Information |
Product Description
UAV Agras 10L Drone To Fumigate For Plant Irrigation Protection Agricultural Drone Seed Fertilizer
Four-Axis 4-Rotor UAV FOC Drive 3090 Folding Propeller Tethered Drone
①Main drone
Model:JC-XL4-4000W
Vehicle category: Four-axis 4-rotor UAV
Power system: FOC drive
Wind resistance level: Level 5
Aircraft material: composite material, carbon fiber
Installation method quick release
Motor: JL-X8120 100KV
ESC: 100A
Propeller: 3090 folding propeller
Take-off and landing mode: manual take-off and landing, fully autonomous take-off and landing
Maximum rising speed 5m/s
Maximum descending speed 5m/s
Maximum wind resistance level 6
Maximum flight altitude 4500m
Maximum ascending speed 10m/s (windless environment)
Maximum tethered flight time 720 minutes
Flight speed: 0-20M/S
Cruising speed: 12M/S
Maximum take-off weight: 25kg
Maximum safe load: 6kg
Maximum flight altitude 110 meters
Hover accuracy vertical: ±0.5m (when GPS positioning is working normally)
Horizontal: ±1m (when GPS positioning is working normally)
Satellite positioning module GPS/GLONASS or BDSS/GLONASS
Waterproof level: Moderate rain. The body can be washed with water.
Expansion channels can support the expansion functions of various models
② 4000W Ariborne Power
380-850V input 48V output 4000W
Size: 160×128×58.5mm
Weight: about 1.3kg
Working temperature: -20°--55°
Optional -40°--55°
③
7KW Ground Power
④
Tethered Box
100 meters pure electric, intelligent retractable winch, including built-in ground power supply
⑤Tethered Cable
2-power ultra-light aviation composite cable, 100 meters, 6A
⑥Remote Controller H12Pro
Number of channels 12
Working voltage 4.2V
Transmit power 17.5dBm
Frequency band 2.400-2.483GHz
Frequency Hopping OFDM Frequency Hopping
Upgrade APP online upgrade
Weight 660g
Size 190*152*94mm
Battery 10000mAh
Battery life 6-20 hours
Charging interface TYPE-C
Modulation method CCK,DQPSK.DBPSK
Transmission rate 6.5-144Mbps
Transmit power 2.4G
16.0±1.5dBm&<-15dB@11b 11Mbps;
14.0±1.5dBm&<-25dB@11g 54Mbps
13.0±1.5dBm&<-28dB@11n-HT20-2.4G-MCS7;
13.0±1.5dBm&<-28dB@11n-HT40-2.4G-MCS7
Receiving sensitivity 2.4G:
1Mbps:-94dBm@PER<8%;
11Mbps:-85dBm@PER<8%;
54Mbps:-70dBm@PER<10%;
HT40-MCS7-2.4G:-65dBm@PER<10%
⑦ Battery
Capacity 8000mAh 12S 44.4V
Size 230*126*67mm
Weight 2550g
⑧ Charger
AC input: 100-240V
Charging power: AC220V 1500W
AC120V 600W
Discharge power: 60W
Battery type: LiPo/LiHV
Number of battery cells: 12S
Charging current: fast charge mode 25A (single channel)
Slow charge mode 16A (single channel)
Working mode: fast charge, slow charge, maintenance mode
Size:294x135x200mm
