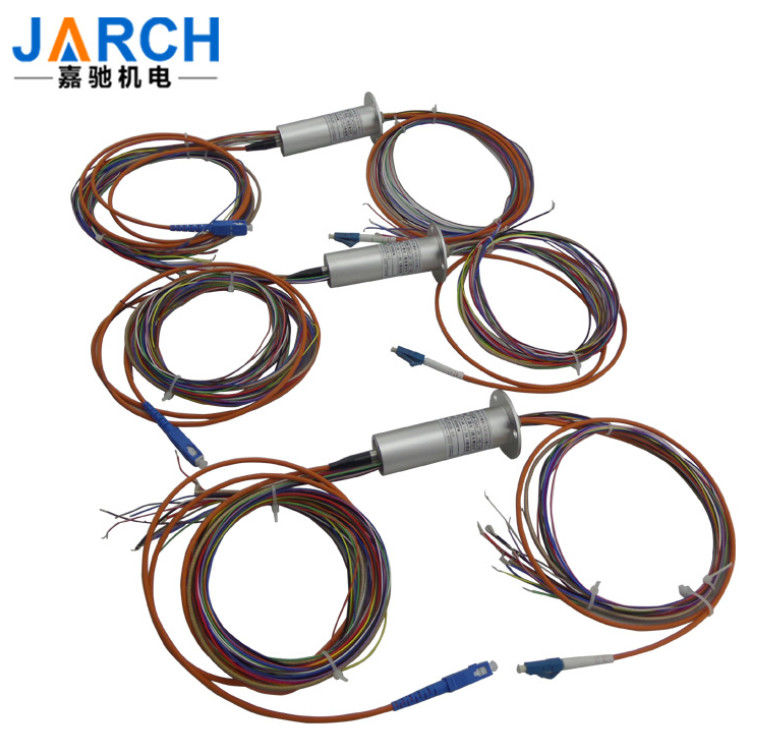

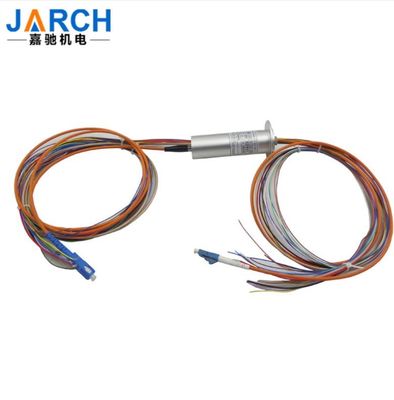

150RPM  Stainless Steel 1550nm Electro Optical Slip Ring

150RPM Stainless Steel 1550nm Electro Optical Slip Ring

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-FE080-6E-2SF

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 500 - 1000 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 15-25 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 50pcs/Month
Get Best Price Contact Now

Detail Information

Housing Material: Stainless Steel Wavelength: 1310-1550nm
Insertion Loss: ≤3 DB (typical: <0.5 DB) Insertion Loss Ripper: <+/-1.5 DB
Return Loss (SM&MM):: ≥40 DB Pulling Strength: 10 N (900um Buffer)
Dimensions: 165mm Diameter Fiber Type: Single Or Multimode W/3 Mm Jacket (Kevlar/PVC)
Connector Type: FC, SC, ST, SMA, Or LC Weight: 4000g/pc
Max Speed: 150RPM Circuits: 24-2A
High Light:

1550nm Electro Optical Slip Ring

,

150RPM Electro Optical Slip Ring

,

Stainless Steel Optic Rotary Joint

Product Description

Compact Slip Ring  Fiber Optic Rotary Joint wih High Transmission Rate for Electro-optical Equipment



Fiber optical rotary joint is a high-precision unit that integrates transmission of electricity and optical signal. Special construction and manufacturing technique permit its independence and anti-interference between the two. With a reliable transmission, it takes the leading position with originality in its field.

The quality of the part is certified by a series of stringent in-house tests and acknowledged by customers with a stable and reliable signal transmission. Stable performance allows signal transmission with no surge kind interference or data package loss.



Feature:

Optical and electrical rotary connection for single mode or multi mode systems;

bidirectional;

Integrated FORJ with electrical slip ring;

Full closed structure;

Able to offer customized solutions



Option:

Lead length

Number of circuits

Fiber type

Connector type

Housing material

Flange dimension



Compact Slip Ring Fiber Optic Rotary Joint wih High Transmission Rate for Electro-optical Equipment



Quick Details:



Model Number: JSR-FE080-6E-2FS Optic Channnel:  2
Insertion loss ripple: <+/- 1.5  dB Wavelength range:  1310 - 1550 nm
Return loss (SM&MM): >40 dB(RPT), Insertion loss:  <3.0dB
Electrical circuits: 6 current: 2-50A 4-10A



Packaging & Delivery:



Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time:25 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......



Description:


Optic-electric slip ring, provides the best technical solutions. Especially in the need to unlimited, continuous or intermittent rotation, and needs from a fixed position to rotate position high capacity data signals transmitted the equipment, can improve mechanical properties, simplified system operation, can cooperate to use with electronic slip rings, call optical-electrical hybrid slipring, transmit power and high speed data.



Benefits:



  • Special fit for fiber optics and electrical circuits.
  • Available in single and multi-channel options
  • 1-125 electric circuits Combination + 1 channel fiber optics

Dimensions:
 150RPM  Stainless Steel 1550nm Electro Optical Slip Ring 0


Installation Instructions:



150RPM  Stainless Steel 1550nm Electro Optical Slip Ring 1

8 Channel Fiber Electric Slip Ring connector FORJ / Fiber Optic Rotary Joint 6 circuits Electro slip ring for ROV AUV



Optic rotary joint Specifications



Wavelength range 1310-1550 nm Insertion loss ≤3dB (typical: <0.5 dB)
Insertion loss ripple <+/- 1.0dB Return loss (SM) ≥40 dB
Maximum speed 150 rpm Pulling strength 10 N (900 um buffer)
Start up torque <0.01 Nm Estimated life cycle 200-400 million revolutions
Optical power handling 23 dBm Working temperature -40°C to 85 °C
Storage temperature -50°C to 85 C°C Package style Pigtails on both ends
Housing material Stainless steel Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types FC, SC, ST, SMA, or LC Dimensions 165 mm dia.
Weight 4000 g IP rating IP 54 for all models
Vibration MIL-STD-167-1A Mechanical shock MIL-STD-810G



Electrical slip ring Specifications



Rings 6 Current 2-50A 4-10A
Voltage mV~1000 VDC/VAC Max speed 150RPM
Through bore size Fit Optic rotary joint Overall diameter 165
Housing Material Aluminium Alloy Torque 0.15N.m;
Working life 50million Contact material Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54,IP68 optional
Materials Lead Free, ROHS Certified CE,FCC







Applications:



• Between in undersea robot and control ship

• Between in radar antenna and on-board signal processing system

• With the chariot rotating tower car body console

• Between in welding robot and console

• Remote mechanical input and output devices and control

• The photoelectric theodolite

• The connection between the platform and spacecraft tracking
