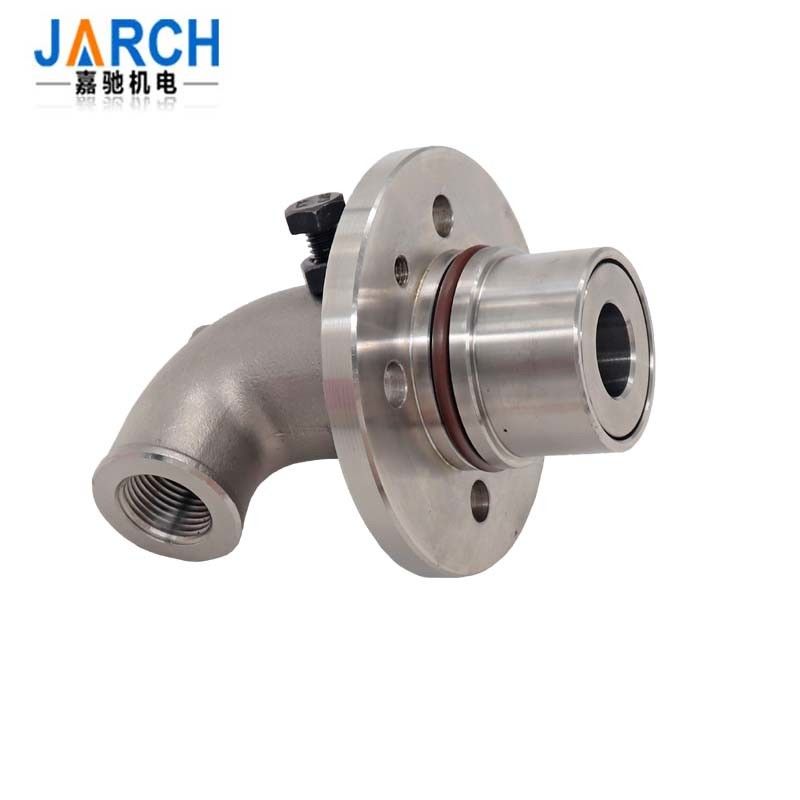

Flange SS 50RPM 1.1mpa Water Steel Rotary Joint
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Price:||US $ 100 - 300 / Piece|
|Packaging Details:||Gift box or custom packing|
|Delivery Time:||5-10 days|
|Payment Terms:||Ex-works, L/C,T/T, Western Union, MoneyGram|
|Material:||Stainless Steel||Rotor Material:||Aluminum|
|Max Speed:||50RPM||Max Pressure:||1.1Mpa|
1.1mpa Water Rotary Union,
50RPM Water Steel Rotary Joint
High speed water steel rotary joint, 1.1mpa water rotary union
Max Speed: 100r/min
Max Pressure: 1.1Mpa
Highly heat radiation resistant structure to be used especially for steel making and continous casting rollers.
Anti-vibration X-ring design for excellent service lift.
Internal lubrication groove to be pre-filled with lubricants to be free from constant lubrication.
Imported anti-wear square ring design to keep impurity away from sealing surface.
Highly corrosion resistant material for prelonged operation under water enviroment.
High speed water steel rotary joint, 1.1mpa water rotary union
1. High-temperature,high-pressure resistant rotating pipe coupling
2. Rugged-construction unions suitable for high pressure, high temperature thermic oil, steam
3. The seal is imported from Germany, which guarantee the excellent performance of our rotary union.
4. The design of detachable baseplate structure is convenient for the conversion between single and multi-passsages
5. The use of graphite pallet balance the compensation of spring, hence it avoids the spring being corroded and prolongs the service life.
6. Ideal for thermal oil and for considerably higher pressures, temperatures
7. Hosing made of ductile cast iron and cover&rotor made of chrome steel
8. Have high temperature resistant spring
• Paper Machinery
• steel, corrugating, textiles,
• Dyeing, Rubber, Plastics, Chemical,Machine tool
Your Rotary Systems rotary union is a precision component which, when installed properly, will provide a long, leak free life. Please follow these general guidelines when installing your union:
Rotary Systems unions should always be installed using flexible connections. To avoid damage to the bearings, the union needs to find its center during operation. It is imperative that either the shaft or the housing is not hard-piped.
The housing of the union should be held in a vise and the flexible connection should be installed before installing the union to the machine.
Clean female threads and face of shaft prior to installation. Use Teflon pipe tape or pipe sealant on NPT threads. As a guideline, NPT threads should be hand tight plus 1- 3 turns to seal the threads. When installing parallel threads, appropriate gaskets or o-rings should be used.
There should be a slight, kink-free curve in the hose when installed on the equipment. It is essential the housing or shaft is allowed to float to compensate for any eccentricities and/or misalignment.
In many instances, the flexible hose connections are used for anti-rotation. Other applications require an external device for anti-rotation such as a fork around the fittings, pin, yoke or bracket. Anti-rotation devices need to “float” to prevent damage to the union.
To prevent damage to the shaft or the seals, Rotary Systems requires filtration to 10 microns or less. Failure to do so may invalidate your warranty and cause premature failure.
If your union has grease fittings, lubricate union with no more than two pumps of appropriate grease per fitting.
