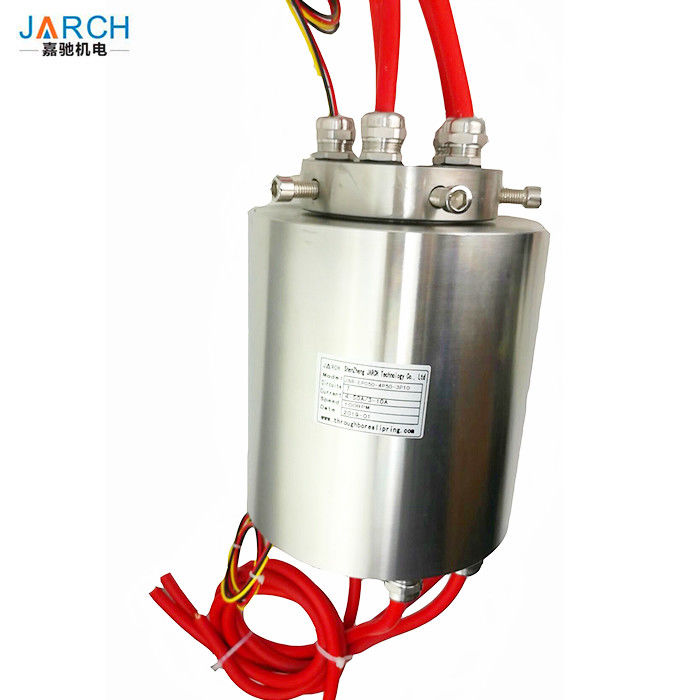

FPSO Waterproof IP68 S316L Cable Reel Slip Ring
|Place of Origin:||Guangdong, China (Mainland)|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Standard Export Package|
|Delivery Time:||30 WORKING DAYS|
|Payment Terms:||L/C, D/P, T/T, Western Union, MoneyGram,PAYPAL|
|ID:||45mm||Underwater Operation Depth:||10m|
|Circuits No:||4 Circuits||Current Power:||10A|
|Protection Grade:||IP68||Application:||Floating Production, Storage And Offshore Loading (FPSO)|
FPSO Cable Reel Slip Ring,
S316 Rotary Joint Slip Ring
JARCH FPSO Waterproof rotary joint Offshore loading Cable Reel Slip Ring Contact IP68 S316L
More news pls have a look of : Click here---Application of conductive slip ring in offshore cable drum
Mainly applied production equipments such as beer machine,liquid filling machine
***The interior adopts the precious metal brush wire structure, with long service life and no maintenance;
***Can work 10 meters underwater or work outdoors,Underwater equipment;
***ID/OD 45mm/135mm, shaft connection.
- Designed for underwater operations, waterproof work and design.
- Industrial grade products, stator flange/shaft, IP65, IP68 protection class.
- Gold - gold contact, the use of imported seals and military grade plating treatment.
- Multi-point contact contact, outlet using waterproof Glen, cable and so on.
- Can be customized according to the requirements.
|Circuits No||4 circuits 10A||ID/OD||45mm/135mm|
|Voltage||440 VDC/VAC||Operating speed||0~200RPM|
|Housing material||S316L||Torque||0.1N.m;+0.03N.m/6 circuits|
on working speed,environment)
|Contact material||Precious metal:gold-gold|
|Electrical Noise||<10mΩ @6VDC,50mA,5RPM||Contact Resistance||<20mΩ(AWG16#,300mm)|
|Dielectric Strength||800VDC@50Hz,10s||Lead wire Spec||UL Teflon@Awg22(5A),Awg16|
|Insulation Resistance||1000MΩ@600VDC,10s||Lead wire length||300mm|
|Work Temperature||-40℃ to 85℃||IP grade||IP68|
|Mechanical vibration||MIL-SID-810E||Work Humidity||10% to 85% RH|
|***||***||Underwater operation depth||10 meters|
|Inside material||precious metals||Certificate||CE,FCC|
Waterproof Slip rings are designed specifically for underwater operarion equipment, on board equipment and waterproof work.
Advantages of waterproof slip ring:
1. Industrial grade products:IP65.IP68 protection grade;
2. Gold to gold contact: adopting imported seals and military grade plating treatment;
3. Multi-point contacts: outgoing line uses waterproof gran circle and cable.
IP68 Shaft mounted underwater working 10m Waterproof operation Slip Rings in ROV Technical,winch,Underwater equipment
JARCH main products:
JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
Packaging & Delivery:
|Packaging Details:||Standard Export carton Package|
|Delivery Detail:||Sample 3 days / Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......
|Q1: Are you a factory or a trading company?|
|A: We are a professional manufactory with High-level R & D team.|
|Q2: How many types of the slip rings do you have?|
|A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
|Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.|
|A: Yes, we can supply mixed signals slip rings as your request.|
|Q4: what's the working life of your slip rings.|
|A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
|Q5: Do you supply OEM and ODM ?|
|A: Yes, we supply OEM and ODM.|
|Q6: What technical data should be provided for our customized slip ring model.|
A: If you want to costomize the special slip ring model, you need provide details as below:
d.channels(the No. of single wire besides cable)
f.the signal type and related
g.operating temperature h.IP(sealing requirements)
|Q7: How long is your production lead time?|
|A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
