Spring Driven Power Cord Reel Cable Reel machine for Vehicle Charging Electric plat
Product Details:
| Place of Origin: | Shenzhen,CN |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | L-4000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | USD$50-150/PCS |
| Packaging Details: | Standard Export Paper carton or custom packing |
| Delivery Time: | 5-8 WORKING DAYS |
| Payment Terms: | T/T, MoneyGram, Western Union, D/P,PAYPAL |
| Supply Ability: | 10000PCS |
|
Detail Information |
|||
| Cord Ending: | Car Changering Plug | Cord Length: | 15 Ft. |
|---|---|---|---|
| Cord Included: | Yes | AWG: | 12 |
| Drive Type: | Spring | Conductors: | 3 |
| Product Name: | Heavy Duty Power Cord Reel | Amps: | 13 |
| High Light: | 12 awg retractable extension cord reel,13 amps retractable cable reel |
||
Product Description

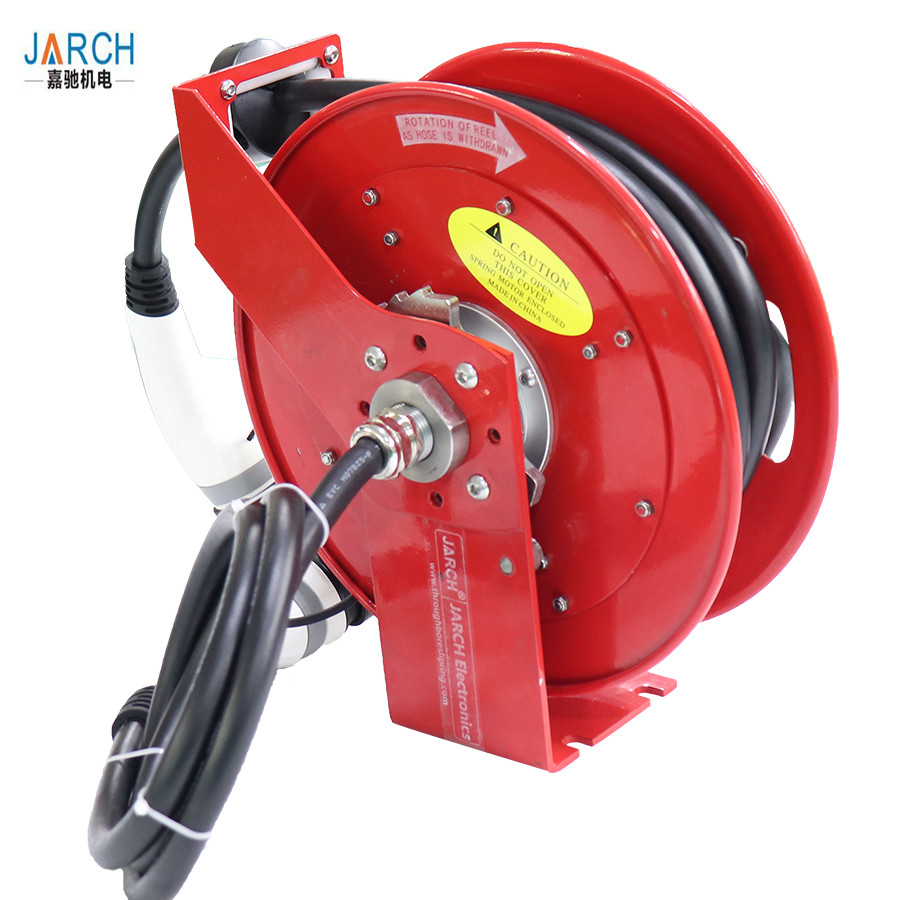

Spring Driven Power Cord Reel for Electric Vehicle Charging Post Cable Reels
16A 32A 15m car charger cable reel for electric vehicles
vehicle charging reel is suitable for single phase electrical connections and is delivered ready fitted with cables, plugs & mounting bracket as shown.
JARCH Charging reel adapts flexibly to all operating conditions. In the private and commercial sector as well as for the supply of entire vehicle fleets in the commercial vehicle sector and public service. Depending on the application, plug types, cables as well as the overall design of our charging reels vary. With regard to the application, the cable and plug can be supplied sidewise, from the ceiling or from below. The corresponding cable length is controlled by our charging reel. This allows a very variable spatial positioning to the charging location of the vehicle. Our charging reel is the ideal supply for individual vehicles or vehicle fleets
|

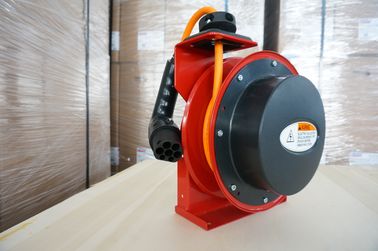

Spring Driven Power Cord Reel for Electric Vehicle Charging Post Cable Reels
Retractable Electric Spring Driven Cord Reel with 45-Feet of 12/3 Cord and GFCI Dual Outlet Cable Reel
Benefits
***Reinforced steel - The stainless steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight;
***Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel;
***Long life drive spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life;
***Quality finish and corrosion resistant - Stainless steel components offer the maximum protection from premature corrosion.
CAD Drawings
Spring Driven Power Cord Reel for Electric Vehicle Charging Post Cable Reels
Structure
Spring Driven Power Cord Reel for Electric Vehicle Charging Post Cable Reels
Application
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time for Sample: 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
To increase spring tension:
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
Retractable Electric Spring Driven Cord Reel with 45-Feet of 12/3 Cord and GFCI Dual Outlet Cable Reel
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact jarch Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
