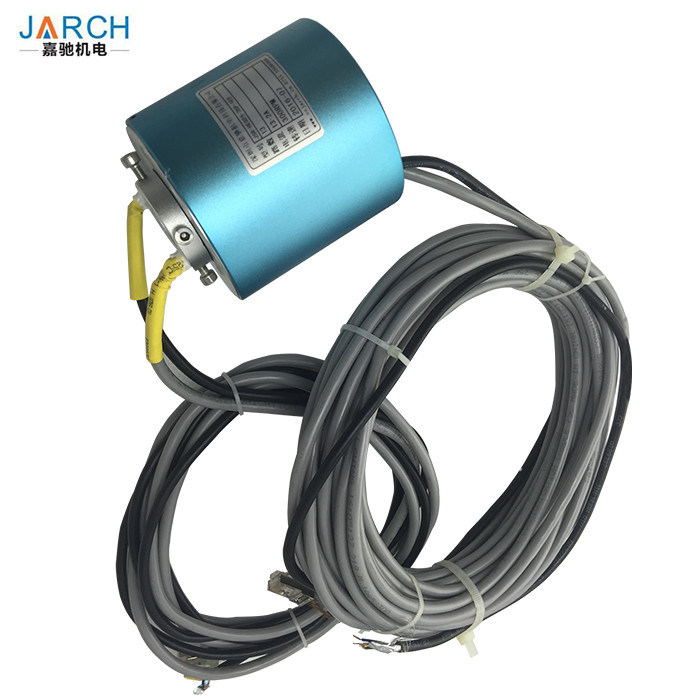

25.4mm 100M Base T 4 Cores Through Bore Slip Rings
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Price:||US $ 100 - 200 / Piece|
|Packaging Details:||Gift box or custom packing|
|Delivery Time:||5-10 days|
|Payment Terms:||Ex-works, L/C,T/T, Western Union, MoneyGram|
|Inner Size:||25.4mm||Outer Size:||78mm|
|Lead Length:||300mm||Housing Material:||Aluminium Alloy|
|Contact Material:||Precious Metal:Gold-Gold||Lead Wire:||UL Teflon® Awg26,Awg22|
|Broadband:||Ethernet ( 1000 BaseT)||Current:||2A/5A/10A|
|Voltage:||200Vac/Vdc||Max Speed:||500 RPM|
rj45 connector rotary joint slip ring,
500rpm high speed slip ring
JARCH 25.4mm 100M Base T 4 cores through bore Ethernet slip rings design
1.Broadband:Ethernet(1000M Base T)
2.Circuits:4*2A+1*1000M Base T
5.Anti-jamming ,very low cost
|Model Number:||JSR-HE025-4SP-1E2||Inner Size(mm):||25.4mm|
|Outer Size:||78mm||Circuits:||(4X)2A +(1X)1000M Base-T|
|Speed(rpm):||1~500RPM||broadband:||Ethernet ( 1000M BaseT),|
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
The HE025 support 4 channel 1000M baseT ethernet slip rings, with through bore size 25.4mm(1.0"), overall diameter 78mm, are standard, off-the-shelf, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
- Unique signal handling performance with minimal electrical circuit noise
- Very low electric noise
- Anti-jamming ,very low cost
- Very low contact resistance (Less than 1mΩ)
- No maintenance and better reliability than traditional sling rings
- Suitable for signal and power transfer of rotating devices or instruments
|Ethernet||100M/1000M base T||Connector||RJ45|
|Rings||2~36||Current||Signal(2A) or 5A,10A,|
|Voltage||mV~200 VDC/VAC||Max speed||500RPM|
|Through bore size||25.4mm||Overall diameter||78mm(2.2")|
|Housing Material||Aluminium Alloy||Torque||0.05N.m;+0.03N.m/6rings|
|Working life||50million||Contact material||Gold-Gold|
|Electrical noise||<5 mΩ||Contact Resistance||<2mΩ|
|Dielectric strength||1000VDC@50Hz||Lead Wire||UL Teflon® Awg26,Awg22|
|Insulation resistance||500MΩ@600VDC||Lead Lengths||300mm(12")|
|Operating Temp.||-40°C to 80°C||Protection||IP54|
|Materials||Lead Free, ROHS||Certified||CE,FCC|
