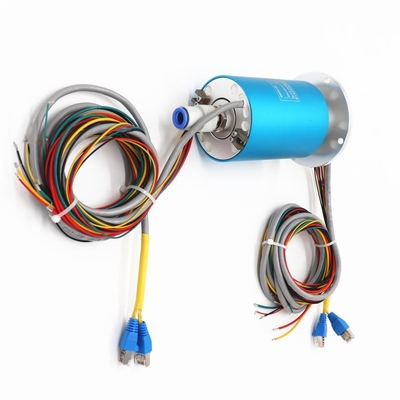

USB3.0 Ethernet Slip Ring Rotary Joint Through Bore Rotating Contacts
Product Details:
| Place of Origin: | SHENZHEN,GUANGDONG |
| Brand Name: | JARCH |
| Certification: | CE FCC |
| Model Number: | HY025-21E-1G12-HW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1UNIT |
|---|---|
| Price: | US$300.0~500.0 |
| Packaging Details: | carton box |
| Delivery Time: | 15 days |
| Payment Terms: | D/P, T/T, Western Union,PAYPAL,credit card |
| Supply Ability: | 1000pcs/month |
|
Detail Information |
|||
| Application: | Packing Machine,Rolling Machine,Miniature Cable Reels,Heating Roller Filling Equipment | Voltage: | 220 VAC/DC |
|---|---|---|---|
| Current: | 100A All Available,2A/5A/10A,video Signal Slip Rings | Work Speed: | 300RPM |
| Contact Material: | Gold-Gold | Housing Material: | Aluminum Alloy,stainless Steel |
| Type: | Elctrical Slip Ring Rotary Joint,ETHERNET Slip Ring | Warranty: | 12 Months |
| Ip Rating: | IP54 - IP68 | Product Name: | RJ45 USB 2.0 Ethernet Slip Ring,SDI Slip Ring |
| High Light: | USB3.0 Ethernet Slip Ring,Rotary Joint Ethernet Slip Ring,220V rotary joint slip ring |
||
Product Description
USB3.0 slip rings Ethernet rotary joint slip ring design through bore rotating contacts
JARCH Slip rings are electromechanical devices that permit the transmission of power and/or electrical signals between stationary and rotating structures or equipment. These devices are used in electromechanical systems that require continuous rotation while transmitting power/signals and can improve performance, simplify operation, and eliminate potentially dangerous wires that might otherwise protrude from movable joints.
Operationally, slip rings can be used on any sort of rotating electromechanical equipment to transfer power, control circuits, and/or analog/digital signals. They can commonly be found in everything from electrical generators to wind turbines to heliostats.
In simplified terms, a slip ring provides a way of making an electrical or data connection point through a rotating assembly.
| Power/signal Specifications | |||
| Circuits | 2~22(see table as above) | Current | Signal(2A) or 10A |
| Voltage | 600 VDC/VAC | Max speed | 500RPM |
| Housing Material | Aluminium Alloy | Torque | 0.8N.m |
| Working life | depends on working speed | Contact material | Precious Metal:Gold-Gold |
| Electrical noise | <10 milliohms | Contact Resistance | <100mOhm(AWG16#,300mm) |
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® |
| Insulation resistance | 1000MΩ@600VDC | Lead Lengths | 250mm |
| Operating Temp. | -40°C to 80°C | Protection | IP51 |
| Mechanical vibratio | MIL-SID-810E | Humidity | 10% to 90% RH |
| Materials | Lead Free,RoHS compliant | CE Certified | YES |
Noted: pls contact me directly for customized slip ring,thanks.

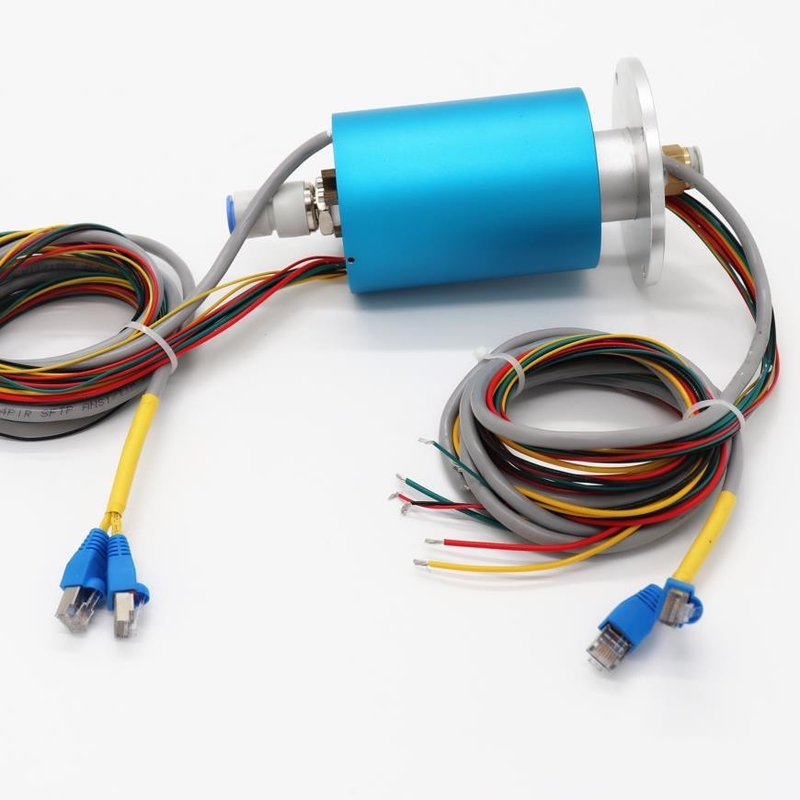

USB3.0 slip rings Ethernet rotary joint slip ring design through bore rotating contacts
20 rings USB slip rings Ethernet rotary joint slipring High frequency slip ring
More slip rings for your choose...pls Click here:Contact me!
| Small generator slip ring | Wind power equipment | Surveillance cameras | Encoder slip ring | Mechanical arm | Beer production equipment |
| Rotating light box | Milk production equipment | Rotary silver plating production line | Helicopter | Rotating camera | Radar communication |
| Rolling machine | Flight equipment | Hot roller | Tank rotating turret | Molding machine | Revolving door |
| Automatic winding machine | Rides | LED advertising light | Production line | High speed ball | Shadowless lamp |
USB3.0 slip rings Ethernet rotary joint slip ring design through bore rotating contacts
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time for Sample:7 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT,EMS...... |
