Pancake Through Hole Slip Ring JARCH 2 Circuits 20mm Inner Size For Toy Robots

Pancake Through Hole Slip Ring JARCH 2 Circuits 20mm Inner Size For Toy Robots

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-PS031-5S

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 10 - 20 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500pcs/week
Get Best Price Contact Now

Detail Information

Inner Size: 20mm Thickness: 5mm
Lead Length: 250mm Lead Wire: 24# Silver Plated Copper
Contact Material: Precious Metal:Gold-Gold Voltage: 240Vac/240Vdc
Current Rating: 10A Speed: 250RPM
Highlight:

slip ring assemblies

,

slip ring connectors

Product Description

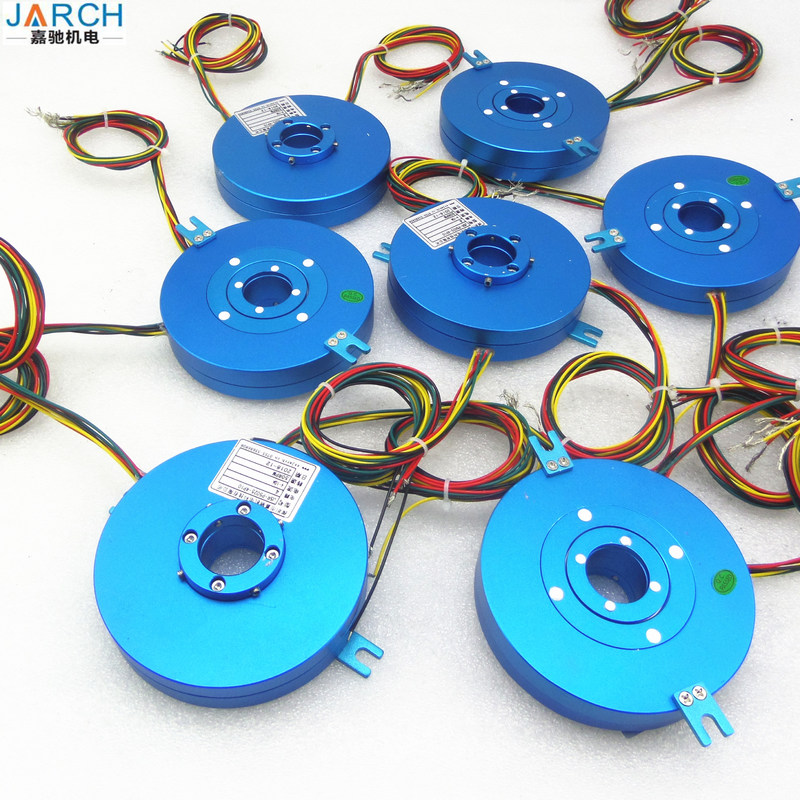

JARCH 2circuits 20mm throgh hole Pancake slip ring for toy robots



pancake slip ring, with a diameter of only 20mm, is a groundbreaking unit that combines SMT technology with a slip ring. The slip ring can be designed with special mounting holes (grooves) according to customer requirements. Chips, terminals and other components can be integrated on the slip ring according to the customer’s needs. Besides, the slip ring adopts a gold-to-gold contact, which can simultaneously transmit two 2A currents and one signal. and it adopts a through-hole design with a diameter of 8mm, 2 or 4 circuits is available. For 2 circuits, each circuit can withstand 4A current, and as for 4 circuits, each channel can withstand 2A current. Each circuit can also be chosen to transmit a type of signal.









Feature:

1.Gold alloy brush,Gold plated rings

2.Thickness is only 5mm

3.Max speed:250rpm

4.Hole size:31mm

5. low contact force per fiber and low contact wear rates



JARCH 2circuits 20mm throgh hole Pancake slip ring for toy robots



Quick Details:



Model Number: JSR-PS031-6S Current Rating: 10A
Inner Size: 31mm Circuits: 6
Volt AC/DC(V): mV~240Vac/Vdc Contact Material:  Gold-Gold contacts
Speed(rpm): 250RPM Thickness:  5mm

Packaging & Delivery:

Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......



JARCH 2circuits 20mm throgh hole Pancake slip ring for toy robots


Description:

Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;


PS031

Hole size: 31mm , Thickness:5mm

2,3,4,6,8,12,18,24 circuit version

In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used.  with 20mm thickness and hol size 12.7mm, uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates


The PS030, with 2 ~ 24 circiuts and compact 20mm body thickness, which we call our disk slip ring .



Benefits:


  • Longer lead lengths available
  • Power and signal combinations
  • Rotor and stator lead exits
  • gold alloy brush,Gold plated rings
  • IP65 are optional
  • More thickness available



Dimensions:


Model Explanation:
