Rotary Table 2 Channel Pancake Through Bore Slip Ring

Rotary Table 2 Channel Pancake Through Bore Slip Ring

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-PS025-6P10

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 20 - 30 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500pcs/week
Get Best Price Contact Now

Detail Information

Inner Size: 25mm Thickness: 25mm
Lead Length: 250mm Lead Wire: 24# Silver Plated Copper
Contact Material: Precious Metal:Gold-Gold Voltage: 240Vac/240Vdc
Current Rating: 10A/ring Speed: 250RPM
High Light:

Pancake Rotary Table Slip Ring

,

Pancake 2 Channel Slip Ring

Product Description

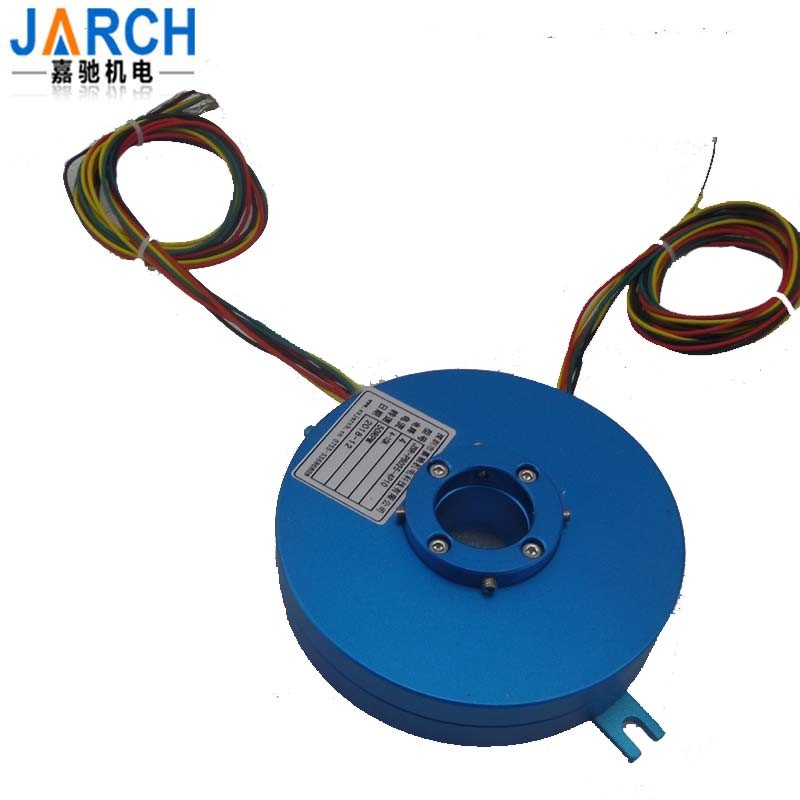

Through bore pancake slip ring,2 Channel 2A via 30mm ,for Rotary Table

Specification



Circuits 2-46
Current Rating 2ckt*4A
Voltage 50 VDC
Dielectric Strength between circuits ≥300V@50Hz
Insulation 200MΩ@500VDC
Electrical Noise ≤70mΩ
Working Speed 0~50 RPM
Contact Precious metal
Housing Engineering plastic
Wire Size AWG22#(0.35mm²)Teflon UL
Hole Diameter φ30mm
Working Temperature -20~+60℃
Protection Grade IP54


High speed 360° Rotating Electric PCB Pancake slip ring ultra thin 6mm pancace slipring 12 circuits



Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;



Pancake slip ring 100M Ethernet and Other Signals for Welding Equipment 2 wire slip ring 20a slip ring

Hole size: 25mm , Thickness:5mm

2,3,4,6,8,12,18,24 circuit version

Through bore pancake slip ring,2 Channel 2A via 30mm ,for Rotary Table

In certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. JSR-PS025-6P10, with 5mm thickness and hol size 25mm, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates


The JSR-PS025-6P10, with 2 ~ 24 circiuts and compact 5mm body thickness, which we call our disk slip ring .



Benefits:


  • Longer lead lengths available
  • Power and signal combinations
  • Rotor and stator lead exits
  • gold alloy brush,Gold plated rings
  • IP65 are optional
  • More thickness available



Dimensions:

High speed 360° Rotating Electric PCB Pancake slip ring ultra thin 6mm pancace slipring 12 circuits


Model Explanation:

Rotary Table 2 Channel Pancake Through Bore Slip Ring 0


Specifications:


Operating Speed 0-300 rpm
Number of Circuits 2 ~ 24
Voltage 240 VAC/DC
Current Rating 10A per circuit
Temperature Range -20°Cto +80°C
Contact Material Gold to Gold
Lead Size 22# silver plated copper
Lead Length Standard 250 mm(9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 5mΩMin


Applications:

  • Filling equipment
  • Electrical test equipment.
  • Medical equipment.
  • Rotary table
  • Robotics
  • Laboratory equipment
  • Manufacturing and process control equipment



Installation Instructions:

Flange mounted:

Rotary Table 2 Channel Pancake Through Bore Slip Ring 1
