Through Bore Pan Cake Slip Ring ID 12.7mm 0.5'' Silver Plated Copper Lead Wire
Product Details:
Place of Origin: | Shenzhen , China |
Brand Name: | JARCH |
Certification: | CE,FCC,ROHS |
Model Number: | JSR-PS050 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | US $ 100 - 300 / Piece |
Packaging Details: | Gift box or custom packing |
Delivery Time: | 5-10 days |
Payment Terms: | Ex-works, L/C,T/T, Western Union, MoneyGram |
Supply Ability: | 500pcs/week |
Detail Information |
|||
Inner Size: | 50.4mm | Thickness: | 20mm |
---|---|---|---|
Lead Length: | 250mm | Lead Wire: | 22# Silver Plated Copper |
Circuits: | 2-10 | Voltage: | 240Vac/240Vdc |
Current Rating: | 2A-10A/ring | Speed: | 250RPM |
High Light: | through hole slip ring,slip ring assemblies |
Product Description

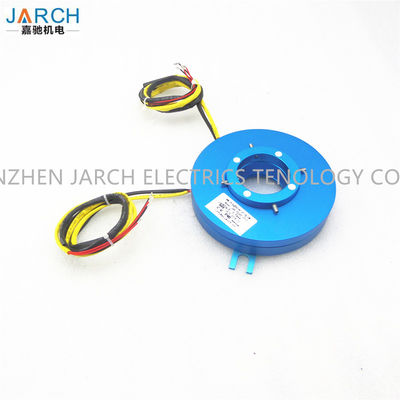

Through bore pancake slipring flat slip ring ID 12.7mm(0.5'')
Pancake slip ring as a another form of through hole slip ring, which are designed for somewhere vertical space is limited while horzontal space is less restrictive. special high vacuum sealing technology&precious metal brush ensure the high reliability transmitting and rotating performance of slip ring.
Quick Details:
Model Number: | JSR-PS050 | Current Rating: | 2A ~ 10A/Ring |
Inner Size: | 50.4mm | Circuits: | 2 ~ 10 |
Volt AC/DC(V): | mV~240Vac/Vdc | Contact Material: | Gold-Gold contacts |
Speed(rpm): | 250RPM | Thickness: | 20mm |
Packaging & Delivery:
Packaging Details: | Standard Export carton Package |
Delivery Details: |
Delivery time:15 days after got the payment Shipping:BY DHL, FedEx, UPS or TNT...... |
Description:
Through bore pancake slipring flat slip ring ID 12.7mm(0.5'')
Hole size: 50.4mm , Thickness:20mm
2,3,4,6,8,12,18,24 circuit version
The PS050, with 2 ~ 24 circiuts and compact 20mm body thickness, which we call our disk slip ring .
Benefits:
- Longer lead lengths available
- Power and signal combinations
- Rotor and stator lead exits
- gold alloy brush,Gold plated rings
- IP65 are optional
- More thickness available
Through bore pancake slipring flat slip ring ID 12.7mm(0.5'')
Dimensions:
Model Explanation:
Specifications:
Operating Speed | 0-200 rpm |
Number of Circuits | 2 ~ 24 |
Voltage | 240 VAC/DC |
Current Rating | 10A per circuit |
Temperature Range | -20°Cto +80°C |
Contact Material | Gold to Gold |
Lead Size | 22# silver plated copper |
Lead Length | Standard 250 mm(9.843inch) |
Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
Insulation Resistance | 100 MΩ @ 500 VDC |
Electrical Noise | 5mΩMin |
Applications:
- Filling equipment
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Robotics
- Laboratory equipment
- Manufacturing and process control equipment
Installation Instructions:
Flange mounted:
Contact Us
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring series
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
