Sub Miniature 6mm Pancake Slip Ring For Revolving Doors / Medical Machines
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Price:||US $ 100 - 300 / Piece|
|Packaging Details:||Gift box or custom packing|
|Delivery Time:||5-10 days|
|Payment Terms:||Ex-works, L/C,T/T, Western Union, MoneyGram|
|Lead Length:||250mm||Contact Material:||Precious Metal:Gold-Gold|
|Lead Wire:||22# Silver Plated Copper||Voltage:||240Vac/240Vdc|
|Usage:||Medical Equipment||Style No.:||JSR-PS028-4S|
through hole slip ring,
slip ring assemblies

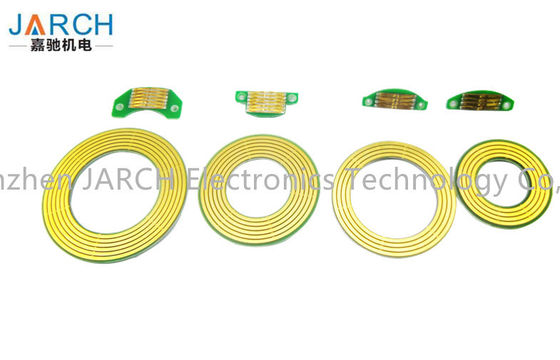

Subminiature sub miniature 6mm pcb pancake slip ring assembly for revolving doors, medical machines, automatic machines
Transmission power, data signal
Compatible with the data bus protocol
|Model Number:||JSR-PS0028-4S||Current Rating:||2A ~ 10A/Ring|
|Inner Size:||28mm||Circuits:||2 ~ 10|
|Volt AC/DC(V):||mV~240Vac/Vdc||Contact Material:||Gold-Gold contacts|
Pancake type slip rings are used in applications where slip ring have limited space in height direction. Pancake slip rings are used in medical, measure, test, print and textile industry.
pancake slip ring is mostly used in small space installation which has no more height room.But normally the the rotation speed is not too fast, like lower than 100RPM.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units,. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
The PS0028-4S, with 4 circiuts and compact 6mm body thickness, which we call our disk slip ring , pcb slip ring, flatter slip ring, spilt slipring.
- Compact size meet the needs of product miniaturization.
- Precision roller bearing support, low torque, long life.
- Transmission power, data signal.
- A variety of specifications of the flange and convenient choice.
- Gold - gold contact, the contact resistance is extremely low
- Compatible with the data bus protocol
- Running smooth low torque
|Operating Speed||0-300 rpm|
|Number of Circuits||4|
|Current Rating||10A per circuit|
|Temperature Range||-20°Cto +80°C|
|Contact Material||Gold to Gold|
|Lead Size||22# silver plated copper|
|Lead Length||Standard 250 mm(9.843inch)|
|Dielectric Strength||≥500 VAC @50Hz, between each circuit|
|Insulation Resistance||100 MΩ @ 500 VDC|
- Filling equipment
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Laboratory equipment
- Manufacturing and process control equipment
