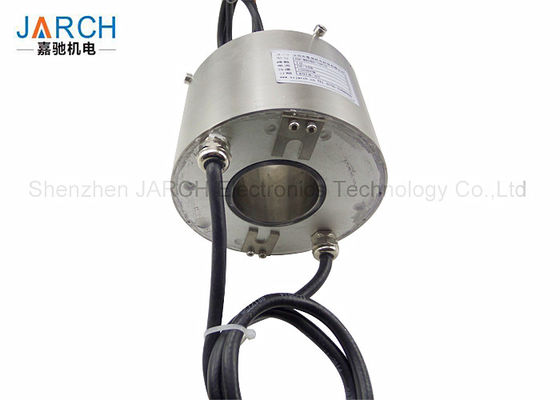

ID 60mm Waterproof Slip Ring S304 Stainless Steel Shaft Mounted 10 Circuits
|Place of Origin:||Guangdong, China (Mainland)|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Standard Export Package|
|Delivery Time:||10 WORKING DAYS|
|Payment Terms:||L/C, D/P, T/T, Western Union, MoneyGram,PAYPAL|
|Material:||S304 Stainless Steel Housing Material||OD:||150mm|
|ID:||60mm||Underwater Operation Depth:||100m|
|Circuits No:||10 Circuits||Current Power:||10A|
|Protection Grade:||IP68||Application:||Underwater Operation And Waterproof Work|
rotary electrical interface,
through bore electrical slip ring
JARCH S304 Stainless steel Shaft mounted ID 60mm 10A underwater 100 meters working slip ring
|Circuits No||10 circuits 10A||ID||60mm|
|Housing material||S304 Stainless steel||Underwater operation depth||100 meters|
on working speed,environment)
|Contact material||Precious metal:gold-gold|
|Electrical Noise||<10mΩ @6VDC,50mA,5RPM||Contact Resistance||<20mΩ(AWG16#,300mm)|
|Dielectric Strength||800VDC@50Hz,10s||Lead wire Spec||UL Teflon@Awg22(5A),Awg16|
|Insulation Resistance||1000MΩ@600VDC,10s||Lead wire length||300mm|
|Work Temperature||-40℃ to 85℃||IP grade||IP68|
|Mechanical vibration||MIL-SID-810E||Work Humidity||10% to 85% RH|
|Voltage||440 VDC/VAC||Torque||0.1N.m;+0.03N.m/6 circuits|
|Inside material||precious metals||Certificate||CE,FCC|
***The interior adopts the precious metal brush wire structure, with long service life and no maintenance;
***Can work 10 meters underwater or work outdoors,Underwater equipment;
***ID 60mm, OD 150mm,shaft connection;
***S304 Stainless steel housing material is corrosion-resistant, not easy to rust and waterproof.
- Designed for underwater operations, waterproof work and design.
- Industrial grade products, stator flange/shaft, IP65, IP68 protection class.
- Gold - gold contact, the use of imported seals and military grade plating treatment.
- Multi-point contact contact, outlet using waterproof Glen, cable and so on.
- Can be customized according to the requirements.
Waterproof Slip rings are designed specifically for underwater operarion equipment, on board equipment and waterproof work.
Advantages of waterproof slip ring:
1. Industrial grade products:IP65.IP68 protection grade;
2. Gold to gold contact: adopting imported seals and military grade plating treatment;
3. Multi-point contacts: outgoing line uses waterproof gran circle and cable.
S304 Stainless steel Shaft mounted ID 60mm 10A underwater 100 meters working slip ring
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
Packaging & Delivery:
|Packaging Details:||Standard Export carton Package|
|Delivery Detail:||Sample 3 days / Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......
|Q1: Are you a factory or a trading company?|
|A: We are a professional manufactory with High-level R & D team.|
|Q2: How many types of the slip rings do you have?|
|A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
|Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.|
|A: Yes, we can supply mixed signals slip rings as your request.|
|Q4: what's the working life of your slip rings.|
|A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
|Q5: Do you supply OEM and ODM ?|
|A: Yes, we supply OEM and ODM.|
|Q6: What technical data should be provided for our customized slip ring model.|
A: If you want to costomize the special slip ring model, you need provide details as below:
d.channels(the No. of single wire besides cable)
f.the signal type and related
g.operating temperature h.IP(sealing requirements)
|Q7: How long is your production lead time?|
|A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
|Q8: What's your delivery port?|
|A: Our delivery port is Shenzhen|
If you have any other question, pls contact us without any hesitation.
