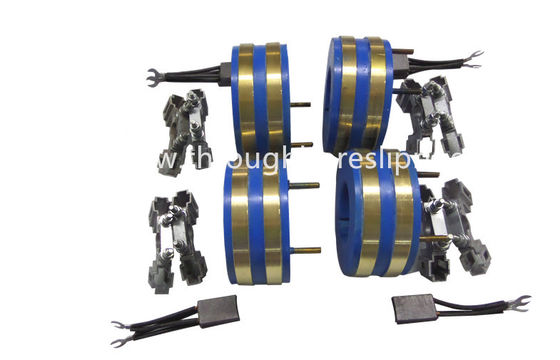

Customized Collector Crane Slip Ring Carbon Brush Alternator Slip Ring Replacement
Product Details:
| Place of Origin: | Shenzhen , China |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-BC080-2P40-SP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US $ 10 - 30 / Piece |
| Packaging Details: | Gift box or custom packing |
| Delivery Time: | 5-10 days |
| Payment Terms: | Ex-works, L/C,T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Product Name: | Slip Ring Assembly | Rings: | 2 |
|---|---|---|---|
| Through Bore: | 80mm | Style NO.: | JSR-BC080-2P40-SP |
| Housing Material: | Aluminium Alloy | Contact Material: | Precious Metal:Gold-Gold |
| Color: | As Custom Requirements | Current: | 2A/5A/15A/20A/30A |
| Voltage: | 380Vac/Vdc | Max Speed: | 500RPM |
| Protection: | IP54/IP68 | ||
| High Light: | collector ring assembly,slip ring components |
||
Product Description
Carbon brush alternator slip ring carbon brushes customized collector crane slip ring
Quick Details:
| Model Number: | JSR-BC080-2P40-SP | ring: | 2 |
| Outer Size: | 80mm | Circuits: | 2~72 |
| Volt AC/DC(V): | mV~380Vac/Vdc | Current(A): | 2A/5A/15A/20A/30A |
| Applications: | Crane, Rolling Machine, Amusement Equipment | Assembly | carbon brush and cabon brush holder |
Collector rings are used in combination with carbon brush holders for supplying power to rotating permanent round electro-magnets. The collector ring is used for separate installation on the machine hollow spindle. When installing, it must be noted that the insulating parts are not wetted with liquids. A scoop-proof cover of live parts must be ensured for the machine. E-connection with cable eyelets against support nut.
Carbon brush slip ring commutator are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.
Carbon brush slip ring alternator is commonly used in motor commutator, the export to import the current sliding contact, its conductivity, thermal conductivity and good lubrication performance, and has certain mechanical strength and commutation spark instincts.Nearly all motors use crystals.
Electrical machinery slip ring,carbon brush slip ring which is an important part of the motor.The collector ring is widely used in various ac/dc generators, synchronous motors,Battery dc motor, crane motor and various welding machines.
Benefits:
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery
Applications:
• Electrical heating roller.
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
FAQ
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
| A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. |
||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
| Q4: what's the working life of your slip rings. | ||||||||||
| A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. |
||||||||||
| Q5: Do you supply OEM and ODM ? | ||||||||||
| A: Yes, we supply OEM and ODM. | ||||||||||
| Q6: What technical data should be provided for our customized slip ring model. | ||||||||||
|
A: If you want to costomize the special slip ring model, you need provide details as below: a.operatring speed(RPM) c.outline size d.channels(the No. of single wire besides cable) f.the signal type and related g.operating temperature h.IP(sealing requirements) |
||||||||||
| Q7: How long is your production lead time? | ||||||||||
| A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products, 15 to 40 days for complex customized porducts. |
||||||||||
| Q8: What's your delivery port? | ||||||||||
| A: Our delivery port is Shenzhen | ||||||||||
| Q9: How do you delivery our goods? | ||||||||||
| A: Usually small orders can be deliveried by air, big orders can be deliveried by sea. It can be negotiated before delivering. |
||||||||||
| Remark: | ||||||||||
| If you have any other question, pls contac us without any hesitation. |
