Customized Slip Ring Assembly  Separate Rotor Low Resistance With Different Circuits

Customized Slip Ring Assembly Separate Rotor Low Resistance With Different Circuits

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-BC050-12P40

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 100 - 300 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500pcs/week
Get Best Price Contact Now

Detail Information

Inner Size: 50mm Holes: 12
Shipping Way: By Air Or By Sea Style NO.: JSR-BC050-12P40
Housing Material: Aluminium Alloy Contact Material: Precious Metal:Gold-Gold
Color: As Custom Current: 2A/5A/15A/20A/30A
Voltage: 380Vac/Vdc Max Speed: 500RPM
Protection: IP54/IP68
Highlight:

collector ring assembly

,

slip ring components

Product Description

Customized Slip Ring in Separate Rotor and Carbon Brush Holder with Different Circuits

Quick Details:



Customized slip ring in separate Rotor and Brush with different circuits Flexible solution Separate rotor and brush , simple for installation 2~18 circuits Gold contacting Supply accessories if requested.







FEATURES:



  • Stator and rotor separate from each other
  • Transmit power, combination of weak signals
  • Optional stator connecting way and shape
  • Low resistance




Description:



Customized Slip Ring in Separate Rotor and Carbon Brush Holder with Different Circuits


Traditional slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units.It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.




Slip ring generator is also called the conductive ring, generator slip ring, slip ring assembly, collector ring, alternator slip ring, junction ring, etc.It can be used in any electromechanical system that requires continuous rotation and requires transmission of power and signals from a fixed position to a rotating position.Slip-ring can improve system performance, simplify system structure, and avoid wire sprain during rotation.

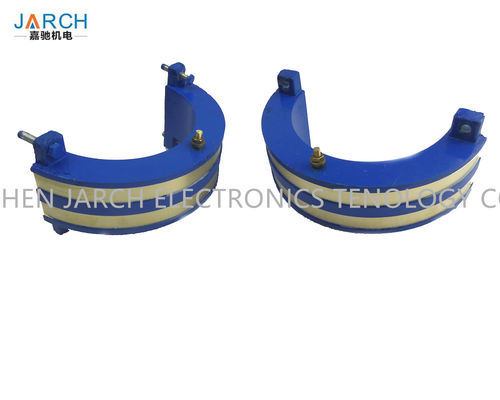

Customized Slip Ring Assembly  Separate Rotor Low Resistance With Different Circuits 0


Customized Slip Ring in Separate Rotor and Carbon Brush Holder with Different Circuits



Benefits:

· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery


Applications:


• Electrical heating roller.

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels


Customized Slip Ring Assembly  Separate Rotor Low Resistance With Different Circuits 1

Customized Slip Ring in Separate Rotor and Carbon Brush Holder with Different Circuits

Jarch main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series


Why to choose JARCH slip ring?

JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.

Can't find the right slip rings solution?


At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.



FAQ



Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen
Q9: How do you delivery our goods?
A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
Remark:
If you have any other question, pls contac us without any hesitation.
