4 Circuits Wind Turbine Slip Ring
Product Details:
Place of Origin: | Shenzhen , China |
Brand Name: | JARCH |
Certification: | CE,FCC,ROHS |
Model Number: | JSR-WS022-4P30 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | US $ 10 - 30 / Piece |
Packaging Details: | Gift box or custom packing |
Delivery Time: | 5-10 days |
Payment Terms: | Ex-works, L/C,T/T, Western Union |
Supply Ability: | 2000pcs/week |
Detail Information |
|||
Outer Size: | 22mm | Contact Material: | Precious Metal:Gold-Gold |
---|---|---|---|
Lead Wire: | UL Teflon14# Silver Plated Copper,color Coded | Lead Length: | 250mm |
Voltage: | 240Vac/240Vdc | Current: | 30A Per Circuit |
Max Speed: | 250RPM | Circuits: | 4 |
Dielectric Strength: | ≥500 VAC @50Hz, Between Each Circuit | ||
High Light: | slip ring electrical connector,electrical slip rings |
Product Description

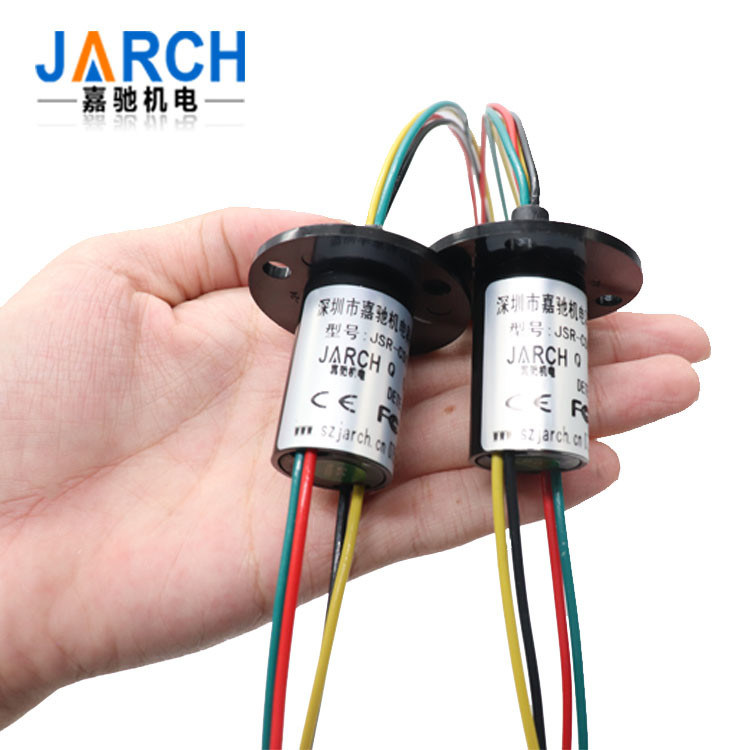

4 wires wind generator slip ring for compact wind turbines (4Circuits,30A Per Circuits)For Wind Turbines
Quick Detail:
Model Number: | JSR-WS022-4P30 | Current Rating: | 30A/Ring |
Outer Size: | 22mm | Circuits: | 4 |
Volt AC/DC(V): | mV~240Vac/Vdc | Contact Material: | Gold-Gold contacts |
Speed(rpm): | 250RPM | Lead Wire: | UL Teflon Awg14,color-coded, |
Description:
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units,It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
The CS series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The WS022-4P30, with 3 wires and compact 22mm body diameter, which we call our mini slip ring .It using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings . It is design For Wind Turbines.
Benefits:
· Smoother running.
· Higher design precision
· Lower electrical noise.
· Lower torque, lower contact resistance
· Rapid delivery
Dimensions:
Model Explanation:
Specifications:
Operating Speed | 0-250 rpm |
Number of Circuits | 4 |
Voltage | 240 VAC/DC |
Current Rating | 30A per circuit |
Temperature Range | -20°Cto +80°C |
Contact Material | Gold to Gold |
Lead Size | 14# silver plated copper |
Lead Length | Standard 250 mm(9.843inch) |
Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
Insulation Resistance | 100 MΩ @ 500 VDC |
Electrical Noise | 1mΩMin |
Applications:
- Wind turbine Slip ring
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Robotics
- Laboratory equipment
- Manufacturing and process control equipment
Installation Instructions:
Flange mounted:
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
Packaging & Delivery:
Packaging Details: | Standard Export carton Package |
Delivery Details: | Delivery time:Sample 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
