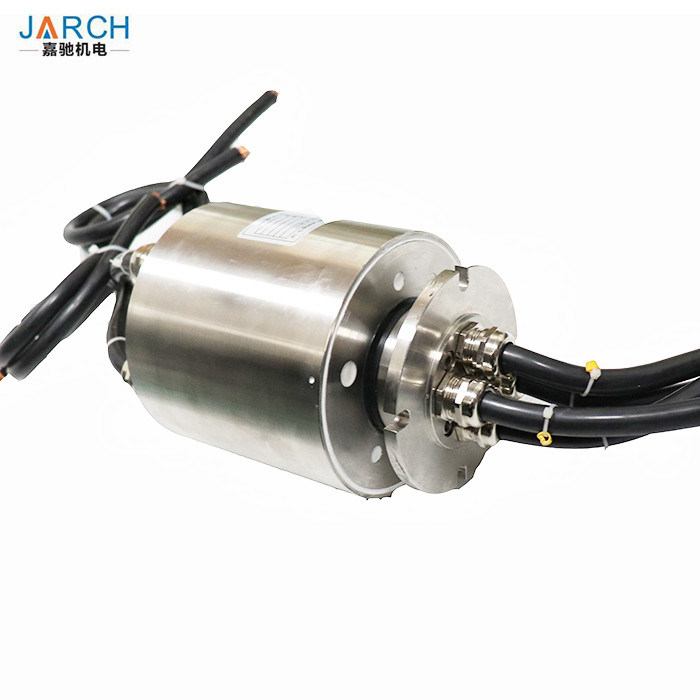

4 Circuits Explosion Proof Slip Ring 15KW
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Price:||US $ 1000 - 1500 / Piece|
|Packaging Details:||Gift box or custom packing|
|Delivery Time:||20-25 days|
|Payment Terms:||Ex-works, L/C,T/T, Western Union, MoneyGram|
|Certifed Mark:||EX D IIC T6 Gb,DIP A21 Ta,T6||Inner Size:||50mm|
|Outer Size:||170mm||Lead Length:||300mm|
|Lead Wire:||UL Teflon® Awg26,Awg22||Housing Material:||Stainless Steel|
|Contact Material:||Precious Metal:Gold-Gold||Circuits:||4|
explosion proof electrical connectors,
rotating electrical connector
4 circuits Explosion Proof Slip Ring 15KW IP66 Protection Certified ID 50mm
360.degree rotation axis
Working condition: -30℃～60℃
Explosion proof up to GB
|Model Number:||JSR-EP050||Inner Size(mm):||50mm|
Packaging & Delivery:
|Packaging Details:||Standard Export carton Package|
Delivery time:15 days after got the payment
Shipping:BY DHL, FedEx, UPS or TNT......
Explosion-proof slip ring has more safety and higher reliability, designed for use in the condition which is easy to explode, such as in oil platform, explosive material packing machine, , agro-product processing equipment, coal mine and spray finishing, etc.
Slip rings pass the electricity by rub between the brushes and rings, so it is not possible to prevent the spark in theory.Normal slip rings only pay attention to its electric property, but less to protection. So it is very dangerous to use normal slip rings in the condition which is easy to explode. Victory-way knows this, and we know the philosophy of the explosion and its protective measures.We design the explosion-proof conductive slip ring, which can be used in explosive gas atmospheres and explosive dust environment, with protection class IP66.
The slip rings passed EX test and got the certificate of conformity from CNEX (Nanyang), the Cer. No. : CJEx14.0807X Marking: EX d IIC T6 Gb,DIP A21 Ta,T6.
* Protection class IP66, IP68 for option;
|Voltage||mV~400 VDC/VAC||Max speed||100RPM|
|Through bore size||50mm||Overall diameter||170mm|
|Housing Material||Stainless Steel||Torque||0.05N.m;+0.03N.m/6rings|
|Working life||50million||Contact material||Gold-Gold|
|Electrical noise||<5 mΩ||Contact Resistance||<2mΩ|
|Dielectric strength||1000VDC@50Hz||Lead Wire||UL Teflon® Awg26,Awg22|
|Insulation resistance||500MΩ@600VDC||Lead Lengths||300mm(12")|
|Operating Temp.||-40°C to 80°C||Protection||IP66|
|Materials||Lead Free, ROHS||Certified Mark||EX d IIC T6 Gb,DIP A21 Ta,T6.|
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
|Q1: Are you a factory or a trading company?|
|A: We are a professional manufactory with High-level R & D team.|
|Q2: How many types of the slip rings do you have?|
|A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
|Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.|
|A: Yes, we can supply mixed signals slip rings as your request.|
|Q4: what's the working life of your slip rings.|
|A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
|Q5: Do you supply OEM and ODM ?|
|A: Yes, we supply OEM and ODM.|
|Q6: What technical data should be provided for our customized slip ring model.|
A: If you want to costomize the special slip ring model, you need provide details as below:
d.channels(the No. of single wire besides cable)
f.the signal type and related
g.operating temperature h.IP(sealing requirements)
|Q7: How long is your production lead time?|
|A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
|Q8: What's your delivery port?|
|A: Our delivery port is Shenzhen|
|Q9: How do you delivery our goods?|
|A: Usually small orders can be deliveried by air, big orders can be deliveried by sea.
It can be negotiated before delivering.
|If you have any other question, pls contac us without any hesitation.|
