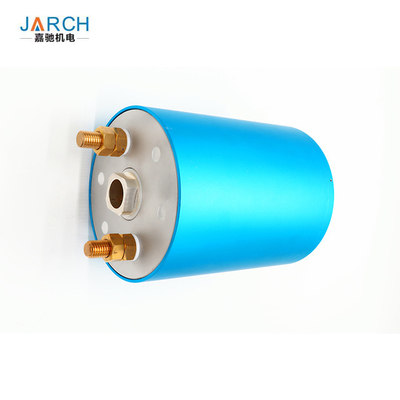

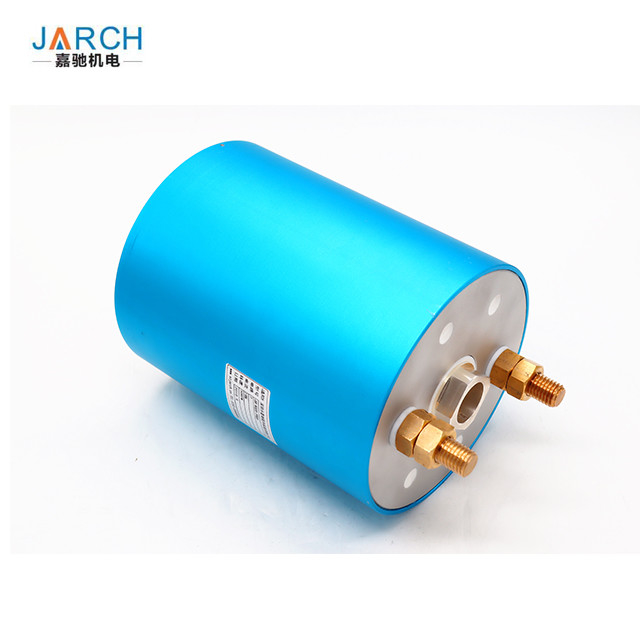

Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings

Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: JARCH
Certification: CE
Model Number: JSR- BC020-2P800

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: US$500/PCS
Packaging Details: Standard Export Package
Delivery Time: 30 WORKING DAYS
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 500PCS/WEEK
Get Best Price Contact Now

Detail Information

Housing Material: Alum. Circuits No: 2 Circuits
Current Power: 800A Protection Grade: IP51
Application: Floating Production, Storage And Offshore Loading (FPSO) Slip Ring Name: Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings

Product Description

JARCH Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings

More news pls have a look of : Click here---Application of conductive slip ring in offshore cable drum



Product Description

Mainly applied production equipments such as beer machine,liquid filling machine

***The interior adopts the precious metal brush wire structure, with long service life and no maintenance;

***Can work 10 meters underwater or work outdoors,Underwater equipment;

***ID/OD 45mm/135mm, shaft connection.

Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings 0

Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings 1


  • Designed for underwater operations, waterproof work and design.
  • Industrial grade products, stator flange/shaft, IP65, IP68 protection class.
  • Gold - gold contact, the use of imported seals and military grade plating treatment.
  • Multi-point contact contact, outlet using waterproof Glen, cable and so on.
  • Can be customized according to the requirements.



Technical Data
Circuits No 4 circuits 10A ID/OD 45mm/135mm
Voltage 440 VDC/VAC Operating speed 0~200RPM
Housing material S316L Torque 0.1N.m;+0.03N.m/6 circuits
Working life

>80millions revolutions(depends

on working speed,environment)

Contact material Precious metal:gold-gold
Electrical Noise <10mΩ @6VDC,50mA,5RPM Contact Resistance <20mΩ(AWG16#,300mm)
Dielectric Strength 800VDC@50Hz,10s Lead wire Spec UL Teflon@Awg22(5A),Awg16
Insulation Resistance 1000MΩ@600VDC,10s Lead wire length 300mm
Work Temperature -40℃ to 85℃ IP grade IP68
Mechanical vibration MIL-SID-810E Work Humidity 10% to 85% RH
*** *** Underwater operation depth 10 meters
Inside material precious metals Certificate CE,FCC



Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings 2



Waterproof Slip rings are designed specifically for underwater operarion equipment, on board equipment and waterproof work.



Advantages of waterproof slip ring:



1. Industrial grade products:IP65.IP68 protection grade;

2. Gold to gold contact: adopting imported seals and military grade plating treatment;

3. Multi-point contacts: outgoing line uses waterproof gran circle and cable.



IP68 Shaft mounted underwater working 10m Waterproof operation Slip Rings in ROV Technical,winch,Underwater equipment



JARCH main products:



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Retractable Hose Reel

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series

17. Slip Ring Carbon Brush



18.Collector Ring Assembly

Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings 3



Company Information

JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.

Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings

Packaging & Delivery:

Packaging Details: Standard Export carton Package
Delivery Detail: Sample 3 days / Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......



FAQ



Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.

A: If you want to costomize the special slip ring model, you need provide details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen





Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings 4

Carbon Brushes Slip Ring High Current Slip Ring Contact 800A Bore Slip Rings 5
