Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-HS008-8S

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 1000 - 1500 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 20-25 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500pcs/week
Get Best Price Contact Now

Detail Information

Housing Material: Aluminium Alloy Contact Material: Precious Metal:Gold-Gold
Lead Wire: UL Teflon® Awg26,Awg22 Lead Length: 300mm
Outer Size: 44mm Voltage: 250Vac/Vdc
Current: 2A Max Speed: 10000RPM
Circuits: 2-16
Highlight:

slip ring connector

,

rotary electrical joint

Product Description

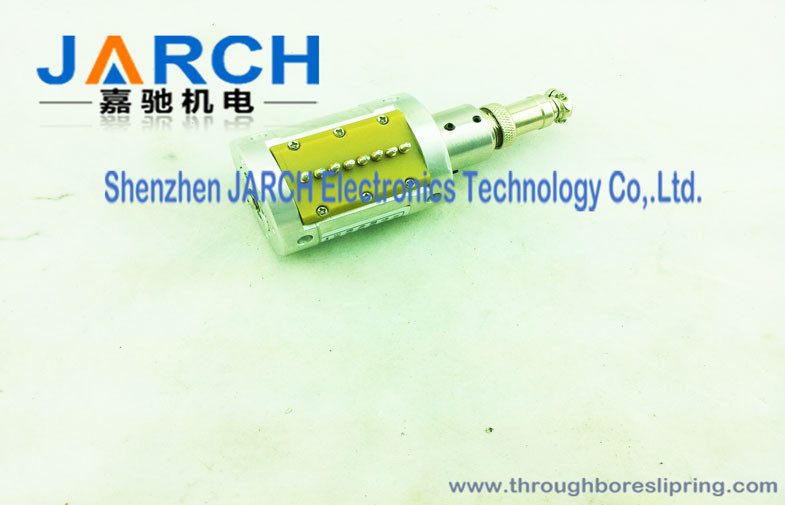

10000rpm High Speed Slip Ring for Ethernet /  rotary index tables OD 44mm



Feature:

1.High speed up to 10000rpm

2.OD:44mm

3.For ethernet or rotary tables

4.Precision ball bearings for long life

5.Protectiion:IP54



Quick Details:



Model Number: JSR-HS008 Inner Size(mm): ---
Outer Size: 44mm Circuits: 2 ~ 16
Volt AC/DC(V): mV~250Vac/Vdc Current(A):  2A
Speed(rpm): 10000 rpm Protection: IP54




Packaging & Delivery:



Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......



Description:


Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.



JARCH HS Series high speed slip ring provides 2 ~ 16 circuits and operational speeds up to 10,000 rpm. Our fiber brush technology minimizes contact wear and resultant debris while it extends operational life.



The HS008 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required.



Benefits:





  • Unique signal handling performance with minimal electrical circuit noise
  • Tight packaging to fit in the most demanding space constraints
  • Fully compatible with both analog and TTL control level signals
  • Precision ball bearings for long life
  • Sealed units available,IP67 optional
  • Rugged anodized aluminum construction
  • Available with Ethernet
  • Rapid delivery



Dimensions:
 10000RPM High Speed Slip Ring for Ethernet /  rotary index tables OD:44mm 0


Model Explanation:



10000RPM High Speed Slip Ring for Ethernet /  rotary index tables OD:44mm 1



Specifications



Rings 2~8 Current Signal(2A)
Voltage mV~250 VDC/VAC Max speed 10000RPM
Through bore size -- Overall diameter 44mm
Housing Material Aluminium Alloy Torque 0.05N.m;+0.03N.m/6rings
Working life 200million Contact material Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 500VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22
Insulation resistance 200MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 200°C Protection IP54
Materials Lead Free, ROHS Certified CE,FCC,UL,ROHS



Applications:



• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics
