Capsule Define Slip Ring Connectors OD 22mm 24 Circuits 2A Rotary Connector
Product Details:
Place of Origin: | Shenzhen , China |
Brand Name: | JARCH |
Certification: | CE,FCC,ROHS |
Model Number: | JSR-CS022-24A |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | US $ 10 - 30 / Piece |
Packaging Details: | Gift box |
Delivery Time: | 5-10 days |
Payment Terms: | Ex works, L/C,T/T, Western Union |
Supply Ability: | 2000CS/week |
Detail Information |
|||
Outer Size: | 12.4mm | Lead Length: | 250mm |
---|---|---|---|
Lead Wire: | UL Teflon® Awg28,color Coded,silver Plated Copper | Voltage: | 240Vac/240Vdc |
Current: | 2A/ring Maximum | Circuits: | 24 |
Speed: | 250RPM | ||
High Light: | miniature slip ring,mini slip ring |
Product Description

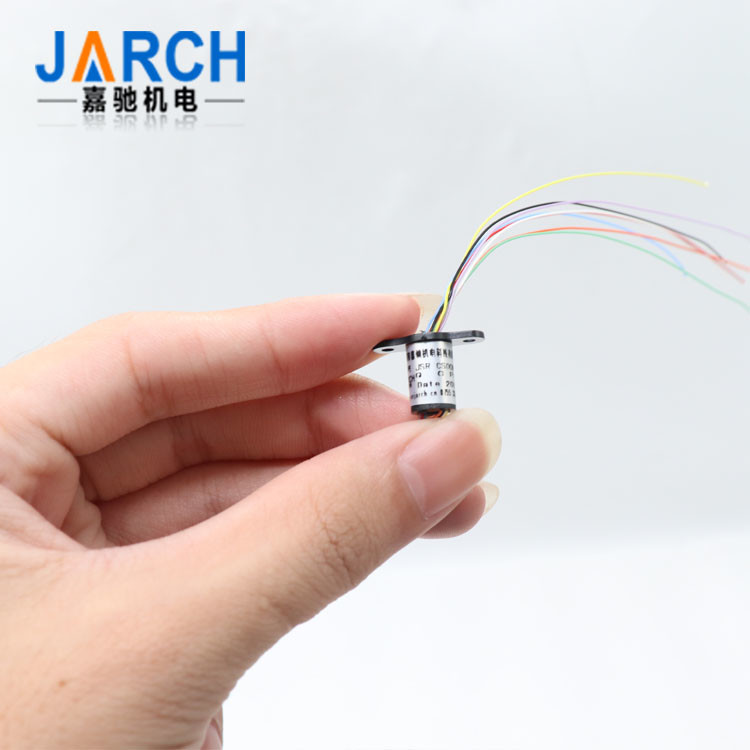

Capsule Define Slip Ring Connectors OD 22mm 24 Circuits 2A Rotary Connector
Quick Detail:
Model Number: | JSR-CS022-12A | Current Rating: | 2A/Ring maximum |
Outer Size: | 12.4mm | Circuits: | 24 |
Volt AC/DC(V): | mV~240Vac/Vdc | Contact Material: | Gold-Gold contacts |
Speed(rpm): | 250RPM | Lead Wire: | UL Teflon Awg28,color-coded, |
Packaging & Delivery:
Packaging Details: | Standard Export carton Package |
Delivery Detail: |
Sample 3 days / Order depends on quantity |
Description:
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units,It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
The CS series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The CS012-06-A, with 6 wires and compact 12.4mm body diameter, which we call our mini slip ring .It using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings.
Benefits:
· Smoother running.
· Higher design precision
· Lower electrical noise.
· Lower torque, lower contact resistance
· Rapid delivery
Dimensions:
Model Explanation:
Specifications:
Operating Speed | 0-300 rpm |
Number of Circuits | 24 |
Voltage | 240 VAC/DC |
Current Rating | 2A per circuit |
Temperature Range | -20°Cto +60°C |
Contact Material | Gold to Gold |
Lead Size | 28# silver plated copper |
Lead Length | Standard 250 mm(9.843inch) |
Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
Insulation Resistance | 100 MΩ @ 500 VDC |
Electrical Noise | 1mΩMin |
Applications:
- CCTV Monitoring System.
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Robotics
- Laboratory equipment
- Manufacturing and process control equipment
