12.4mm Miniature Capsule Rotary Slip Ring Gold to Gold Contact Material 12 Circuit
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Price:||US $ 10 - 30 / Piece|
|Packaging Details:||Gift box or custom packing|
|Delivery Time:||5-10 days|
|Payment Terms:||Ex-works, L/C,T/T, Western Union, MoneyGram|
|Contact Material:||Precious Metal:Gold-Gold||Lead Wire:||UL Teflon® Awg28,color Coded,silver Plated Copper|
|Outer Size:||12.4mm||Current Size:||2A Per Circuit|
|Insulation Resistance:||100 MΩ @ 500 VDC||Electrical Noise:||1mΩMin|
miniature slip ring,
mini slip ring

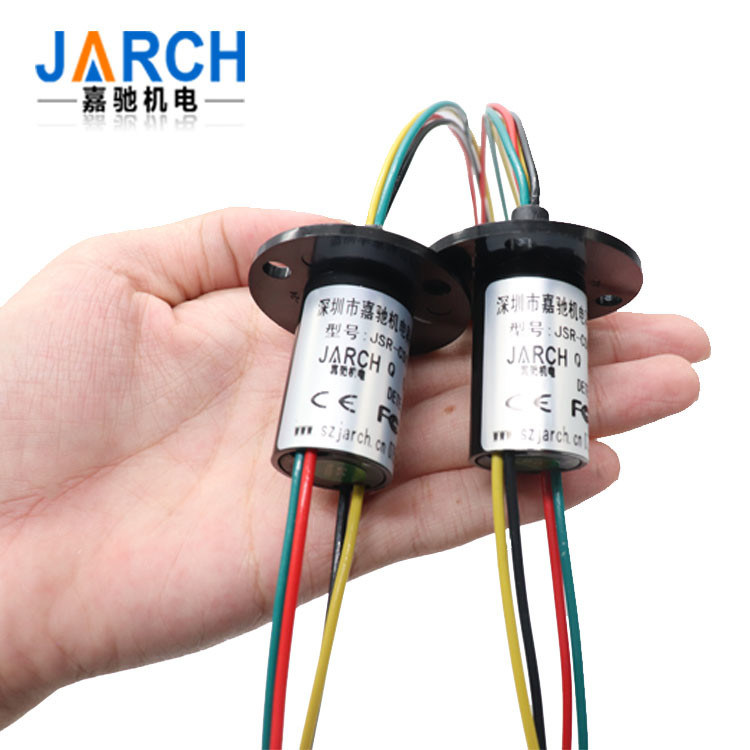

12.4mm Miniature Capsule Rotary Slip Ring Gold to Gold Contact Material
|Model Number:||JSR-CS012-6A||Current Rating:||2A/Ring maximum|
|Volt AC/DC(V):||mV~240Vac/Vdc||Contact Material:||Gold-Gold contacts|
|Speed(rpm):||250RPM||Lead Wire:||UL Teflon Awg28,color-coded,|
Packaging & Delivery:
|Packaging Details:||Standard Export carton Package|
Delivery time for Sample 3 days / Delivery time for Order depends on quantity
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units,It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
The CS series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The CS012-06-A, with 6 wires and compact 12.4mm body diameter, which we call our mini slip ring .It using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings.
· Smoother running.
· Higher design precision
· Lower electrical noise.
· Lower torque, lower contact resistance
· Rapid delivery
|Operating Speed||0-300 rpm|
|Number of Circuits||12|
|Current Rating||2A per circuit|
|Temperature Range||-20°Cto +60°C|
|Contact Material||Gold to Gold|
|Lead Size||28# silver plated copper|
|Lead Length||Standard 250 mm(9.843inch)|
|Dielectric Strength||≥500 VAC @50Hz, between each circuit|
|Insulation Resistance||100 MΩ @ 500 VDC|
- CCTV Monitoring System.
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Laboratory equipment
- Manufacturing and process control equipment
