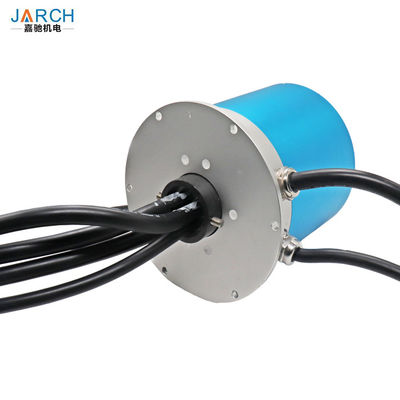

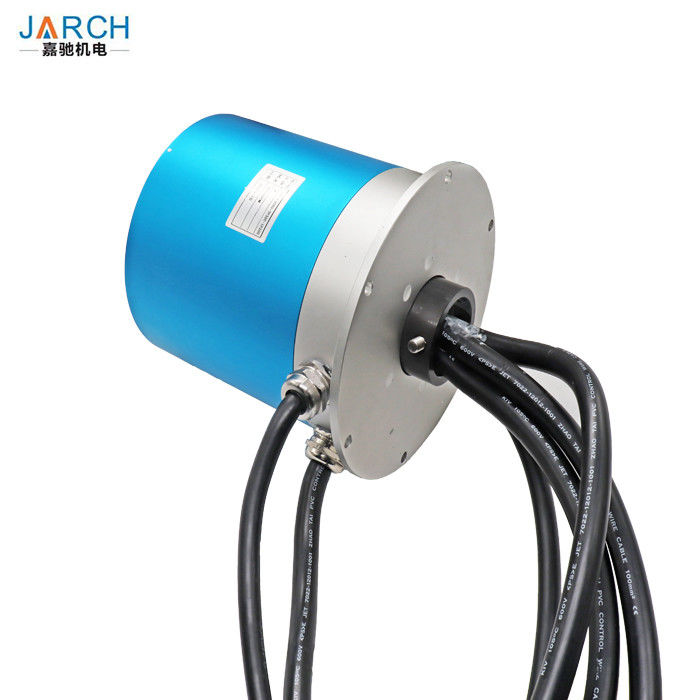

FCC 350A Large Current Slip Ring Wind Turbine Slip Rings For Crane
Product Details:
| Place of Origin: | Shenzhen , China |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-BC055-5P350 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US $ 10 - 30 / Piece |
| Packaging Details: | Gift box or custom packing |
| Delivery Time: | 5-10 days |
| Payment Terms: | Ex-works, L/C,T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Housing Material: | Alu. | Contact Material: | Carbon |
|---|---|---|---|
| Current: | 350A | Voltage: | 400Vac/Vdc |
| Max Speed: | 300RPM | Outer Size: | BOX |
| Circuits: | 5 Circuits | Protection: | IP65 |
| Lead Wire: | Customer Optional | ||
| High Light: | FCC Large Current Slip Ring,350A Large Current Slip Ring,Crane Wind Turbine Slip Ring |
||
Product Description
5 Circuits 350A Large Current Slip Ring Wind Turbine Slip Rings For Crane Rotary Joint
Quick Details:
| Model Number: | JSR-BC055-5P350 | Inner Size(mm): | no hole |
| Outer Size: | BOX | Circuits: | 5 |
| Volt AC/DC(V): | mV~400Vac/Vdc | Current(A): | 350A |
| ASpeed(rpm): | 300RPM | Protection: | IP65 |
Description:
5 Circuits 350A Large Current Slip Ring Wind Turbine Slip Rings For Crane Rotary Joint
JARCH high current slip ring , compact through bore slip ring, which is research and development of specializing consume electronics, small wind turbine equipment, revolving stage of lights industry, and the material used gold to gold contact, ensure the stabity and long working life.
JARCH high current slip ring machinery has a strong technology research and development strength and experienced engineers, the company successfully developed the single way of large current collector ring, large current slip ring series products, the maximum current of 800A a/ways.
product transmission performance is stable, high quality, high protection grade, can be widely used in rotating machine, rotary welding machine and other industries.
Benefits:
● Up to hundreds Ampere
● Transfers control and data signals
● Over-long lifetime, no need maintenance, no need lubrication
● Designed for offshore working environment
Dimensions:
The Dimensions of Slip Ring Will Be Advised When Rings And Current Details Are Options . Please Contact JARCH Technical Department.
Specifications
| Rings | 2~36 | Current | 80A |
| Voltage | mV~400 VDC/VAC | Max speed | 50RPM |
| Through bore size | None | Overall diameter | Box |
| Housing Material | SS304 | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | 50million | Contact material | Carbon |
| Electrical noise | <5 mΩ | Contact Resistance | <2mΩ |
| Dielectric strength | 1000VDC@50Hz | Lead Wire | Customer Option |
| Insulation resistance | 500MΩ@600VDC | Lead Lengths | Optional |
| Operating Temp. | -40°C to 80°C | Protection | IP66 |
| Materials | Lead Free, ROHS | Certified | CE,FCC,UL,ROHS |
5 Circuits 350A Large Current Slip Ring Wind Turbine Slip Rings For Crane Rotary Joint
Applications:
• Packaging / wrapping machinery
• Industrial machinery
• rotary index tables
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
Installation Instructions
Shaft Mounted
JARCH engineers its slip rings for reliability and performance in the field, helping you avoid unplanned downtime. Our slip ring offerings include:
Miniature slip rings
Hollow shaft slip rings
Throughbore slip rings
HD slip rings
High current slip rings
Harsh environment slip rings
Custom slip rings
Quick turn orders, world-class support and competitive pricing are available for all our slip rings.
Flange mounted:
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
FAQ
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
| A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. |
||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
| Q4: what's the working life of your slip rings. | ||||||||||
| A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. |
||||||||||
| Q5: Do you supply OEM and ODM ? | ||||||||||
| A: Yes, we supply OEM and ODM. | ||||||||||
| Q6: What technical data should be provided for our customized slip ring model. | ||||||||||
|
A: If you want to costomize the special slip ring model, you need provide details as below: a.operatring speed(RPM) c.outline size d.channels(the No. of single wire besides cable) f.the signal type and related g.operating temperature h.IP(sealing requirements) |
||||||||||
| Q7: How long is your production lead time? | ||||||||||
| A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products, 15 to 40 days for complex customized porducts. |
||||||||||
| Q8: What's your delivery port? | ||||||||||
| A: Our delivery port is Shenzhen | ||||||||||
| Q9: How do you delivery our goods? | ||||||||||
| A: Usually small orders can be deliveried by air, big orders can be deliveried by sea. It can be negotiated before delivering. |
||||||||||
| Remark: | ||||||||||
| If you have any other question, pls contac us without any hesitation. |
