Hydraulic Rotary Union 8mm Air Tube Electrical Slip Rings
Product Details:
| Place of Origin: | Shenzhen , China |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-HY012-36E-1G08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiation |
| Packaging Details: | Gift box or custom packing |
| Delivery Time: | 5-10 days |
| Payment Terms: | Ex-works, L/C,T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs/week |
|
Detail Information |
|||
| Circuits: | 2-26 | Inner Size: | 6mm |
|---|---|---|---|
| Outer Size: | 56mm | Tube Size: | 8mm |
| Passage Size: | 8mm | Housing Material: | Aluminium Alloy |
| Contact Material: | Precious Metal:Gold-Gold | Lead Wire: | UL Teflon® Awg26,Awg22,Awg16 |
| Lead Length: | 300mm | Voltage: | 380Vac/Vdc |
| Current: | 2A/5A/15A | Max Speed: | 300RPM |
| High Light: | 300rpm through bore slip ring,aluminium alloy electric slip ring |
||
Product Description

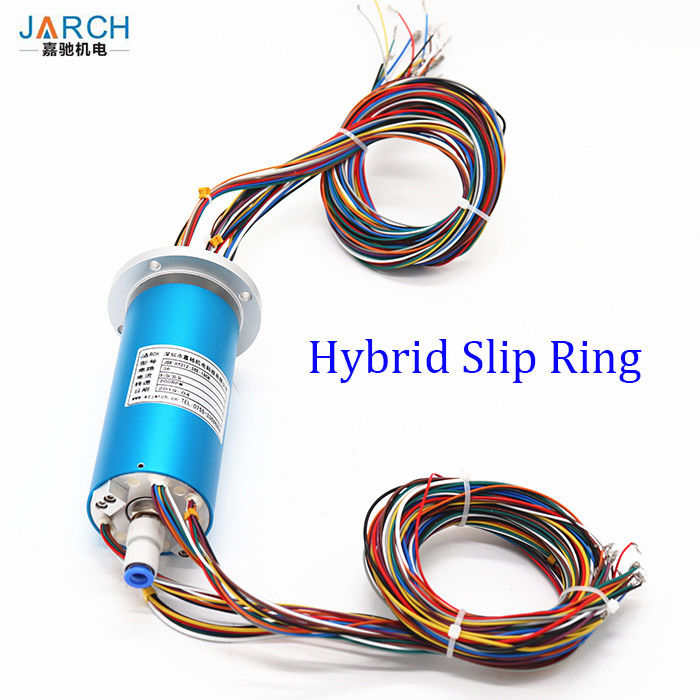

Electrical Slip Rings Industrial 8mm Air Tube Electric Slip Ring Hydraulic Rotary Union
Feature:
1.ID/OD:6/56MM
2.36 Circuits,5A/15A current
3.1 Passage with 8mm tube
4.Max speed:300rpm
5.Fully compatible with both analog and TTL control level signals
Quick Details:
| Model Number: | JSR-HY012-36E-1G08 | Inner Size(mm): | 6mm |
| Outer Size: | 56mm | Circuits: | 36 |
| Volt AC/DC(V): | mV~380Vac/Vdc | Current(A): | 2A/5A/15A |
| Speed(rpm): | 300RPM | Tube Size | 8mm |
Description:
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
JARCH HY Series Pneumatic Electrical Rotary Union Support 2-12 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
The JSR-HY012-36E-1G08 provide 1 passage rotary union combine 36 circiuts 2A signal or 15A Power electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.
Electrical Slip Rings Industrial 8mm Air Tube Electric Slip Ring Hydraulic Rotary Union
Benefits:
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Low Cost ,Preferential prices
· Small size
· Rapid delivery
Dimensions:
Model Explanation:
Electrical Specifications:
| Rings | 2~36 | Current | Signal(2A) or 5A/10A/15A |
| Voltage | mV~380 VDC/VAC | Max speed | 300RPM |
| Through bore size | 6mm | Overall diameter | 56mm |
| Housing Material | Aluminium Alloy | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | 50million | Contact material | Precious Metal:Gold-Gold |
| Electrical noise | <5 mΩ | Contact Resistance | <2mΩ |
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Teflon® Awg26,Awg22,Awg16 |
| Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Protection | IP54 (IP68 Optional) |
| Materials | Lead Free, ROHS | Certified | CE,FCC |
Applications:
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
Installation Instructions:
Flange mounted:
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time for Sample 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
