Electrical Rotary Joint Hybrid 300RPM Pneumatic Slip Ring
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Packaging Details:||Gift box or custom packing|
|Delivery Time:||5-10 days|
|Payment Terms:||Ex-works, L/C,T/T, Western Union, MoneyGram|
|Outer Size:||56mm||Tube Size:||8mm|
|Passage Size:||8mm||Housing Material:||Aluminium Alloy|
|Contact Material:||Precious Metal:Gold-Gold||Lead Wire:||UL Teflon® Awg26,Awg22,Awg16|
380Vac precision ball bearings,
8mm tube ethernet slip ring

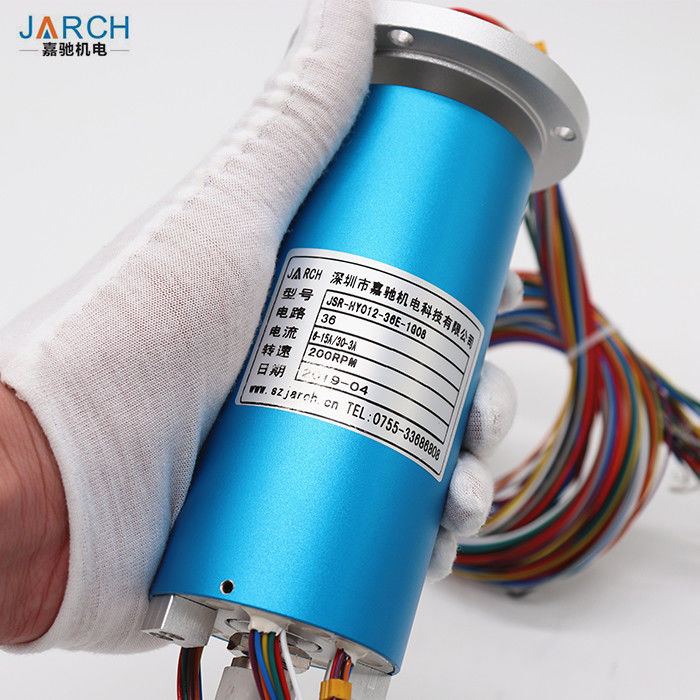

1 Passage Professional Pneumatic Electrical Rotary Joint Flange Mounting , 56mm Outer Size
2.2-10 Circuits,5A/15A current
3.1 Passage with 8mm tube
5.Fully compatible with both analog and TTL control level signals
|Model Number:||JSR-HY012-36E-1G08||Inner Size(mm):||6mm|
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
JARCH HY Series Pneumatic Electrical Rotary Union Support 2-12 passage way Pneumatic/Hydraulic, it can combine with power,signal,Ethernet,USB,Devicenet,Control Net,Canbus on request. It also could be mounted by shaft or optional flange mounting.Passage media types can use Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
The JSR-HY012-10E-1G provide 1 passage rotary union combine 10 circiuts 2A signal or 15A Power electrical slip ring.The slip ring provide a rotary flange can be install on a rotary table.
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Low Cost ,Preferential prices
· Small size
· Rapid delivery
|Rings||2~36||Current||Signal(2A) or 5A/10A/15A|
|Voltage||mV~380 VDC/VAC||Max speed||300RPM|
|Through bore size||6mm||Overall diameter||56mm|
|Housing Material||Aluminium Alloy||Torque||0.05N.m;+0.03N.m/6rings|
|Working life||50million||Contact material||Precious Metal:Gold-Gold|
|Electrical noise||<5 mΩ||Contact Resistance||<2mΩ|
|Dielectric strength||1000VDC@50Hz||Lead Wire||UL Teflon® Awg26,Awg22,Awg16|
|Insulation resistance||500MΩ@600VDC||Lead Lengths||300mm(12")|
|Operating Temp.||-40°C to 80°C||Protection||IP54 (IP68 Optional)|
|Materials||Lead Free, ROHS||Certified||CE,FCC|
