Rotary Electrical Interface Capsule Slip Ring Swivel Joint For Medical Equipment
Product Details:
| Place of Origin: | Shenzhen , China |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-HD24 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | US $ 10 - 30 / Piece |
| Packaging Details: | Gift box or custom packing |
| Delivery Time: | 5-10 days |
| Payment Terms: | Ex-works, L/C,T/T, Western Union, MoneyGram |
| Supply Ability: | 2000pcs/week |
|
Detail Information |
|||
| Outer Size: | Mm | Circuits: | 24 |
|---|---|---|---|
| Current: | A | Voltage: | 240Vac/240Vdc |
| Contact Material: | Precious Metal:Gold-Gold | Lead Wire: | UL Teflon® Awg26,Awg22,Awg16,color Coded |
| Speed: | 250RPM | ||
| High Light: | miniature slip ring,mini slip ring |
||
Product Description

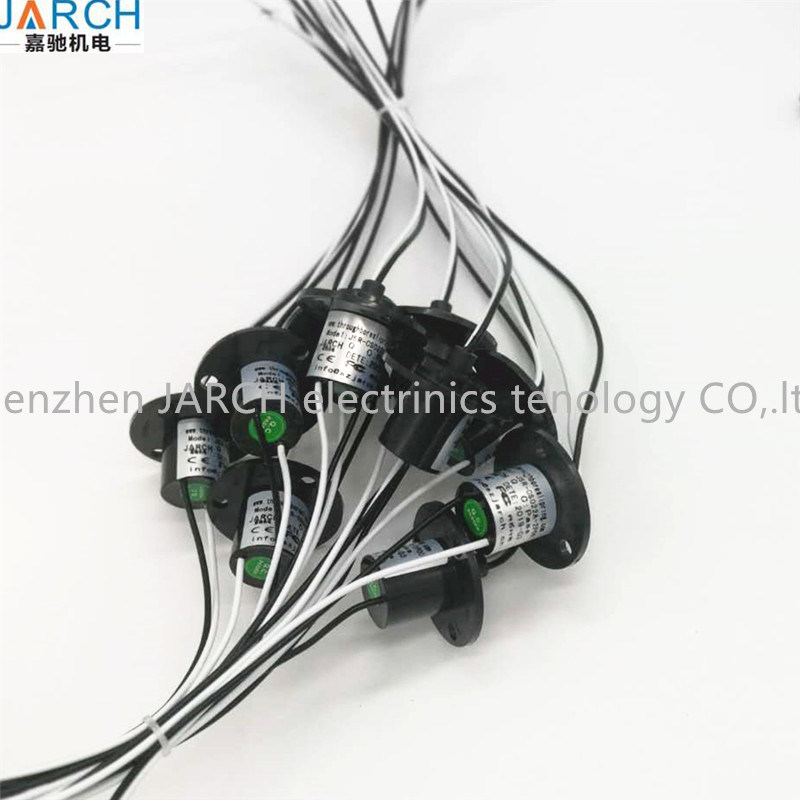

rotary electrical interface,capsule slip ring, swivel or electrical rotary joint for medical equipment use
Quick Details:
JARCH capsule slip ring products are widely used in a variety of smart devices ,among diverse work rotating electrical systems: such as medical equipment, chemical reactor equipment, lifting gear equipment, CNC machinery equipment, wind power generation equipment , smart appliances, optical communication equipment, wire stranding equipment, robotics, robotic arm, the revolving door, model aircraft, aviation, automobile, shipbuilding, machinery, packaging machinery, lighting display equipment, recreational facilities, mining equipment. Our company has long provided conventional slip ring products and special slip ring for the development of well-known manufacturers of domestic production.
rotary electrical interface,capsule slip ring, swivel or electrical rotary joint for medical equipment use
Description:
The CS series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The CS022-3P10-5S it using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings.
Benefits:
- Transfers control and data signals
- Fiber brush technology provides maintenance-free operation (no lubrication required)
- Modular design meets special requirements through off-the-shelf manufacturing techniques
- Customized configurations for your application
- Quick shippments
rotary electrical interface,capsule slip ring, swivel or electrical rotary joint for medical equipment use
Dimensions:
Model Explanation:
Specifications:
- Contact Material
Gold alloy brush,Gold plated rings
- Current Rating
2A, per ring, maximum
- Number of Circuits
12
- Operating Speed
250 rpm* continuous
- Housing Material
Engineering Plastics
- Lead Wire
UL Teflon® Awg28,color-coded, silver-plated
- Lead Lengths
250mm
- Voltage
210 VDC / 240 VAC
- Operating Temp.
-40°C to 80°C
- Torque
Approx. ≤0.39 g·m (for reference )
- Dielectric Strength
≥600V@50Hz between each circuit
- Insulation Resistance
600MΩ@ 300VDC
- Noise
15 milliohms maximum tested @ 6 VDC, 40 milliamps when running @ 5 - 15 rpm
- Resistance to pull
Radial 2KG,Axial 0.5KG
- Protection
IP51
Applications:
- CCTV Monitoring System.
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Robotics
- Laboratory equipment
- Manufacturing and process control equipment
Contact US
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
