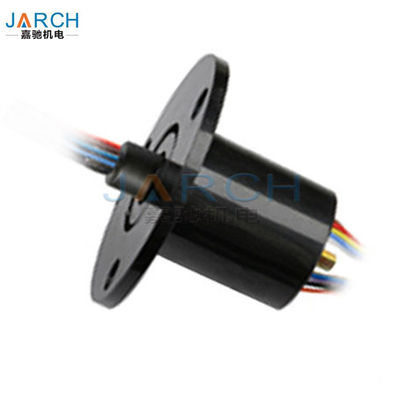

HD Video High Definition Capsule Slip Ring with 16 Circuits 1080P 1 Channel Coaxial
Product Details:
| Place of Origin: | Shenzhen , China |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-HD16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | Gift box or custom packing |
| Delivery Time: | 5-10 days |
| Payment Terms: | Ex-works, L/C,T/T, Western Union, MoneyGram |
| Supply Ability: | 2000pcs/week |
|
Detail Information |
|||
| Outer Size: | Mm | Circuits: | 16 |
|---|---|---|---|
| Current: | 2A | Voltage: | 240Vac/240Vdc |
| Contact Material: | Precious Metal:Gold-Gold | Lead Wire: | UL Teflon® Awg26,Awg22,Awg16,color Coded |
| Speed: | 250RPM | Feature: | HD SDI Slip Ring |
| Highlight: | miniature slip ring,mini slip ring |
||
Product Description
HD Video High Definition Capsule Slip Ring with 16 Circuits 1080P 1 Channel Coaxial
Quick Details:
| Model Number: | JSR-HD16 | Current Rating: | 2A/Ring maximum |
| Outer Size: | Circuits: | 16 | |
| Volt AC/DC(V): | mV~240Vac/Vdc | Contact Material: | Gold-Gold contacts |
| Speed(rpm): | 250RPM | Lead Wire: | UL Teflon Awg28,color-coded, |
Description:
HD slid ring, can transmit HD-SDI, HD signal.Power supply, signal and hd video signal transmission provided by 12-24 circuit and 2A/ circuit as well as a pair of coaxial SDI rotating joint are available. There are various shapes and sizes for customers to choose from.
The 300-HD series is an extension of the Orbex 300 series miniature capsule slip ring series. The HD series is designed to transfer uncompressed, broadcast quality, high definition video through a rotating joint. The slip ring can be used to transfer 1080p or 1080i HD-SDI video signals using RF coaxial connectors with 50 ohm specific impedance MMCX connectors using standard RG178, RG316, or RG174 coaxial cable.
- HD-SDI interface for broadcast quality video transmission
- Compact Size
- Low Friction
- Quick delivery from stock
- CE-and RoHS complieant
- Low Cost
Benefits:
- Transfers control and data signals
- Fiber brush technology provides maintenance-free operation (no lubrication required)
- Modular design meets special requirements through off-the-shelf manufacturing techniques
- Customized configurations for your application
- Quick shippments
Model Explanation:
Applications:
- CCTV Monitoring System.
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Robotics
- Laboratory equipment
- Manufacturing and process control equipment
Contact Us:
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
Can't find the right slip rings solution?
At JARCH Company, we strive to meet the needs of our customers. If an assembly from our standard model does not fit your requirements, our design team will work with you to design a slip ring assembly that will meet your company's exact needs. With over 19 years of experience JARCH has amassed over 10,000 drawings, thousands of custom slip ring designs and experiences supporting customers worldwide.
FAQ
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
| A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. |
||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
| Q4: what's the working life of your slip rings. | ||||||||||
| A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. |
||||||||||
| Q5: Do you supply OEM and ODM ? | ||||||||||
| A: Yes, we supply OEM and ODM. | ||||||||||
| Q6: What technical data should be provided for our customized slip ring model. | ||||||||||
|
A: If you want to costomize the special slip ring model, you need provide details as below: a.operatring speed(RPM) c.outline size d.channels(the No. of single wire besides cable) f.the signal type and related g.operating temperature h.IP(sealing requirements) |
||||||||||
| Q7: How long is your production lead time? | ||||||||||
| A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products, 15 to 40 days for complex customized porducts. |
||||||||||
| Q8: What's your delivery port? | ||||||||||
| A: Our delivery port is Shenzhen | ||||||||||
| Q9: How do you delivery our goods? | ||||||||||
| A: Usually small orders can be deliveried by air, big orders can be deliveried by sea. It can be negotiated before delivering. |
||||||||||
| Remark: | ||||||||||
| If you have any other question, pls contac us without any hesitation. |
