Ultra Thin Pcb Slip Ring 14 Circuits
|Place of Origin:||Shenzhen , China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pc|
|Price:||US $ 20 - 40 / Piece|
|Packaging Details:||Gift box or custom packing|
|Delivery Time:||5-10 days|
|Payment Terms:||Ex-works, L/C,T/T, Western Union, MoneyGram|
|Lead Length:||250mm||Lead Wire:||24# Silver Plated Copper|
|Contact Material:||Precious Metal:Gold-Gold||Voltage:||240Vac/240Vdc|
through hole slip ring,
slip ring assemblies

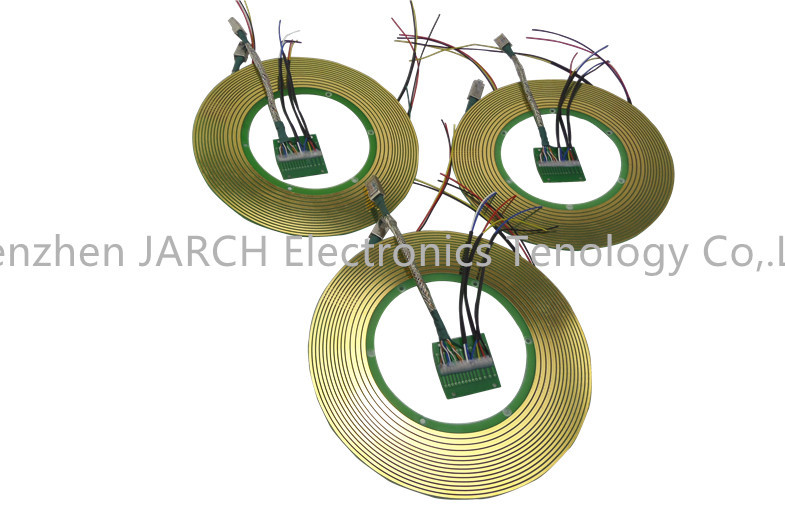

Through large bore 108mm 14 circuits pancake slip ring ultra thin pcb slipring 5mm for medical equipments
ultra-thin disk slip ring
gold alloy brush,gold plated rings
More thickness available
OEM is welcome
|Model Number:||JSR-PS108-14S||Current Rating:||10A|
|Volt AC/DC(V):||mV~240Vac/Vdc||Contact Material:||Gold-Gold contacts|
Packaging & Delivery:
|Packaging Details:||Standard Export carton Package|
Delivery time:15 days after got the payment
Shipping:BY DHL, FedEx, UPS or TNT......
Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;
Hole size: 5108mm , Thickness:5mm
2,3,4,6,8,12,18,24 circuit version
The PS053, with 2 ~ 24 circiuts and compact 5mm body thickness, which we call our disk slip ring .
- Longer lead lengths available
- Power and signal combinations
- Rotor and stator lead exits
- gold alloy brush,Gold plated rings
- IP65 are optional
- More thickness available
|Operating Speed||0-300 rpm|
|Number of Circuits||2 ~ 24|
|Current Rating||10A per circuit|
|Temperature Range||-20°Cto +80°C|
|Contact Material||Gold to Gold|
|Lead Size||22# silver plated copper|
|Lead Length||Standard 250 mm(9.843inch)|
|Dielectric Strength||≥500 VAC @50Hz, between each circuit|
|Insulation Resistance||100 MΩ @ 500 VDC|
- Filling equipment
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Laboratory equipment
- Manufacturing and process control equipment
