23 DBm Fiber Optic Rotary Joint
Product Details:
| Place of Origin: | Shenzhen , China |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-FO-06-SF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Gift box or custom packing |
| Delivery Time: | 10-20 days |
| Payment Terms: | Ex works, L/C,T/T, Western Union, MoneyGram |
| Supply Ability: | 20pcs/Month |
|
Detail Information |
|||
| Housing Material: | Stainless Steel | Wavelength Range: | 650-1650nm |
|---|---|---|---|
| Optical Power Handling: | 23 DBm | Dimensions: | 6.8mm Diameter*28mm Length |
| Estimated Cycle Life: | 200-400 Million Revolutions | Weight: | 10g/pc |
| IP Rating: | IP 68 For All Models | Connector Types: | FC, SC, ST, SMA, Or LC (and APC Finishes) |
| Maximum Speed: | 2,000 Rpm | ||
| High Light: | fiber optic slip ring,fibre optic rotary joint |
||
Product Description

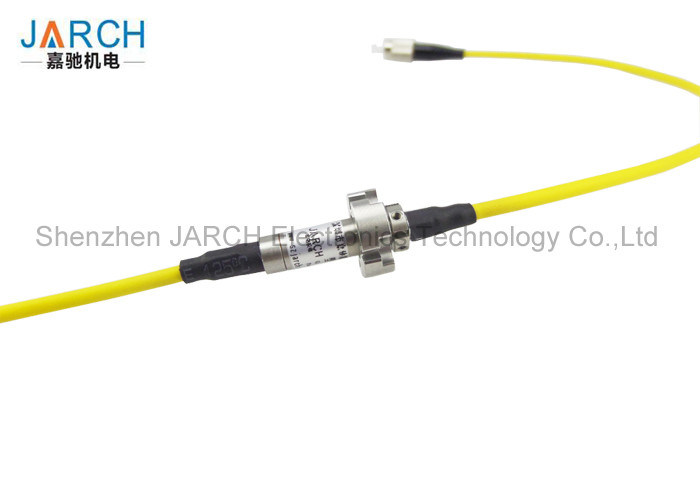

JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint
Feature:
1. Multi-mode fiber optic slip ring
2.Max speed up to 2000rpm
3.Resistance to electromagnetic interference
4.Good sealing
5.Can be used in extreme natural environment.
SF series Fiber Optic Rotary Joints (FORJs) are extremely compact. So small they can even be used in the middle of fluid flows. They are the world's smallest and lightest. They feature very low insertion loss and impressive return loss performance. Model SF typically yields return loss figures higher than 60 dB.
Benefits:
- Using light signal transmission, no electromagnetic leakage.
- Good sealing.
- Resistance to electromagnetic interference
- No contact transmission, no wear and tear.
- Long life, can be up to 10 million RPM.
- No friction, can be used in inflammable and explosive environment.
- Can be used in extreme natural environment.
- High magnetic current interference, also can work normally.
| SPECIFICATIONS | |
| PARAMETERS | VALUES |
| Wavelength range | 650-1650 nm |
| Insertion loss | <2 dB (typical: <0.5 dB) |
| Insertion loss ripple | <+/-0.25 dB (typical: +/-0.15 dB) |
| Return loss (SM) | >40 dB (typical: 45 dB, 23 C), >55 dB (MJXA) |
| Maximum speed | 2,000 rpm |
| Water submersion | 1 m, (model RPC for pressure compensation) |
| Pulling strength | 10 N (900 um buffer) |
| Start up torque | <0.01 Nm |
| Estimated life cycle | >500 million revolutions (1,000 rpm, 365 days, continous) |
| Optical power handling | 23 dBm |
| Working temperature | -40 to 85 C |
| Storage temperature | -50 to 85 C |
| Package style | Pigtails on both ends |
| Housing material | Stainless steel |
| Fiber types | Single or multimode w/3 mm jacket (Kevlar/PVC) |
| Connector types | FC, SC, ST, SMA, or LC (and APC finishes) |
| Dimensions | 6.8 mm dia. x 28 mm length |
| Weight | 10 g |
| Vibration | MIL-STD-167-1A |
| Mechanical shock | MIL-STD-810G |
| IP rating | IP 68 for all models |
Applications:
• Between in undersea robot and control ship
• Between in radar antenna and on-board signal processing system
• With the chariot rotating tower car body console
• Between in welding robot and console
• Remote mechanical input and output devices and control
• The photoelectric theodolite
• The connection between the platform and spacecraft tracking
Note: All insertion loss and return loss measurements are performed by joining the FORJ to the light source through fusion splice (without the use of connectors). Insertion loss of all receptacle type of FORJs, such as RST, RFC, and RFCX, are measured with connectors of similar type. Their return loss is not measured.
