6.8mm Micro Fiber Optic Rotary Joint Multimode 1 Channel With Light Signal Transmission

Good quality Capsule Slip Ring for sales
Good quality Capsule Slip Ring for sales
We have done over 5 years partnership with JARCH. Its Quality control and after sales Service is so nice. I'll go on jobs to JARCH for sure.

—— Mr. Jürgen

I really recommend, a great team and good quality. Very good. I will buy again.

—— Mr.David

good seller, fast delivery, the quality is excellent, thank you!

—— Mr.Rapeepong

I'm Online Chat Now

6.8mm Micro Fiber Optic Rotary Joint Multimode 1 Channel With Light Signal Transmission

China 6.8mm Micro Fiber Optic Rotary Joint Multimode 1 Channel With Light Signal Transmission supplier
6.8mm Micro Fiber Optic Rotary Joint Multimode 1 Channel With Light Signal Transmission supplier 6.8mm Micro Fiber Optic Rotary Joint Multimode 1 Channel With Light Signal Transmission supplier 6.8mm Micro Fiber Optic Rotary Joint Multimode 1 Channel With Light Signal Transmission supplier

Large Image :  6.8mm Micro Fiber Optic Rotary Joint Multimode 1 Channel With Light Signal Transmission

Product Details:

Place of Origin: Shenzhen
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-FO-06-SF

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: US$300-500/piece
Packaging Details: Gift box or custom packing
Delivery Time: 10 days
Payment Terms: D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Dimensions: 6.8 Mm Dia. X 28 Mm Length Wavelength Range: 650-1650 Nm
Return Loss (SM): >40 DB (typical: 45 DB, 23 C), >55 DB Maximum Speed: 2,000 Rpm
Start Up Torque: <0.01 Nm Optical Power Handling: 23 DBm
IP Rating: IP 68 For All Models

JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint



Product Description
JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint

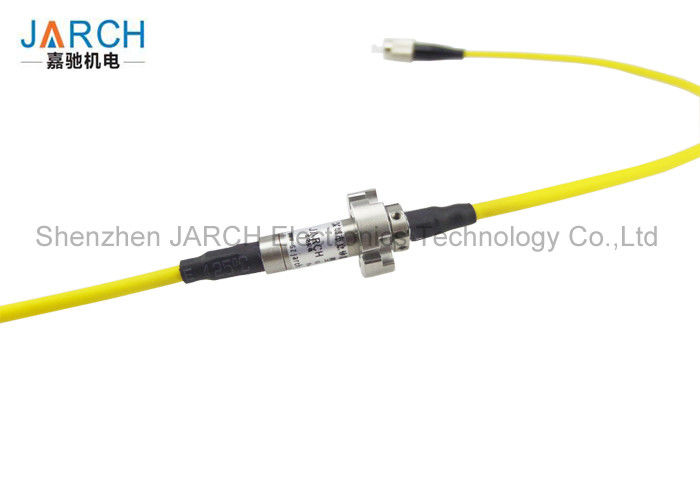

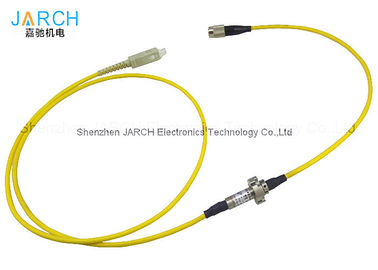

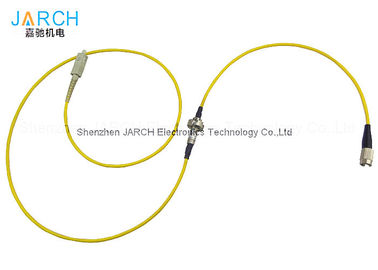

SF series Fiber Optic Rotary Joints (FORJs) are extremely compact. So small they can even be used in the middle of fluid flows. They are the world's smallest and lightest. They feature very low insertion loss and impressive return loss performance. Model SF typically yields return loss figures higher than 60 dB.




SPECIFICATIONS

PARAMETERS VALUES
Wavelength range 650-1650 nm
Insertion loss <2 dB (typical: <0.5 dB)
Insertion loss ripple <+/-0.25 dB (typical: +/-0.15 dB)
Return loss (SM) >40 dB (typical: 45 dB, 23 C), >55 dB (MJXA)
Maximum speed 2,000 rpm
Water submersion 1 m, (model RPC for pressure compensation)
Pulling strength 10 N (900 um buffer)
Start up torque <0.01 Nm
Estimated life cycle >500 million revolutions (1,000 rpm, 365 days, continous)
Optical power handling 23 dBm
Working temperature -40 to 85 C
Storage temperature -50 to 85 C
Package style Pigtails on both ends
Housing material Stainless steel
Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
Connector types FC, SC, ST, SMA, or LC (and APC finishes)
Dimensions 6.8 mm dia. x 28 mm length
Weight 10 g
Vibration MIL-STD-167-1A
Mechanical shock MIL-STD-810G
IP rating IP 68 for all models







Benefits



JARCH FORJ Miniature fiber rotary joints,6.8mm Micro optical fiber rotating joint

  • Using light signal transmission, no electromagnetic leakage.
  • Good sealing.
  • Resistance to electromagnetic interference
  • No contact transmission, no wear and tear.
  • Long life, can be up to 10 million RPM.
  • No friction, can be used in inflammable and explosive environment.
  • Can be used in extreme natural environment.
  • High magnetic current interference, also can work normally.






Installation Instructions

.jpg

Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery



Applications:

• Between in undersea robot and control ship

• Between in radar antenna and on-board signal processing system

• With the chariot rotating tower car body console

• Between in welding robot and console

• Remote mechanical input and output devices and control

• The photoelectric theodolite

• The connection between the platform and spacecraft tracking





Note: All insertion loss and return loss measurements are performed by joining the FORJ to the light source through fusion splice (without the use of connectors). Insertion loss of all receptacle type of FORJs, such as RST, RFC, and RFCX, are measured with connectors of similar type. Their return loss is not measured.
