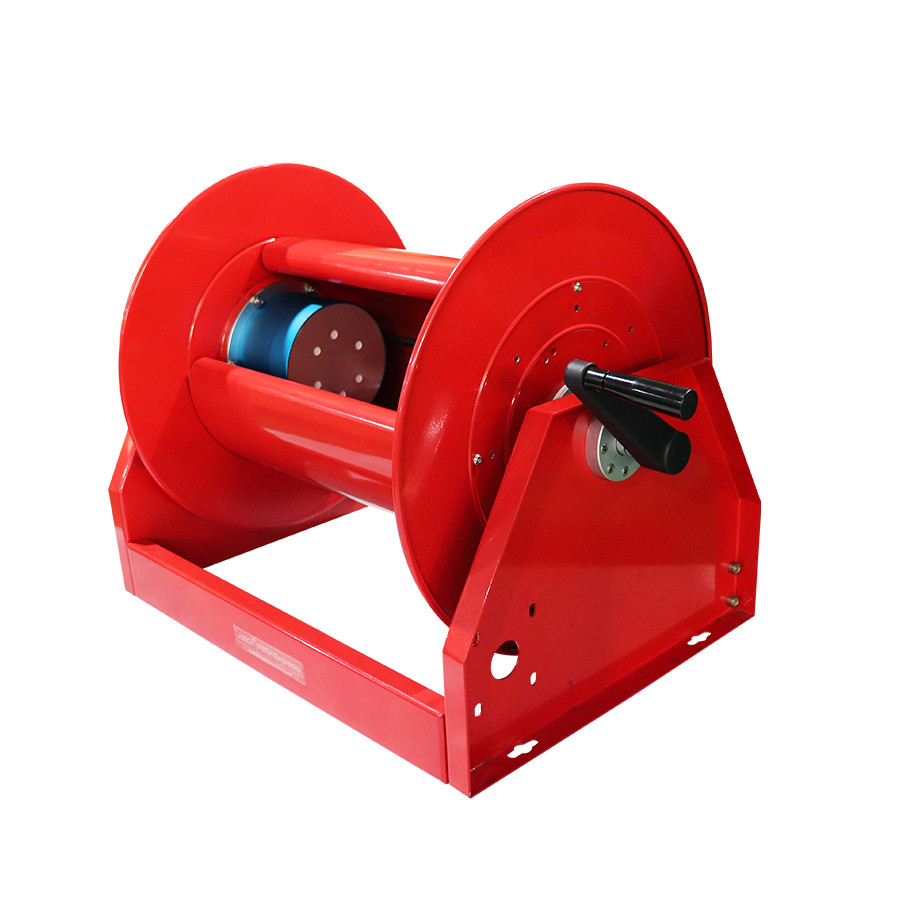

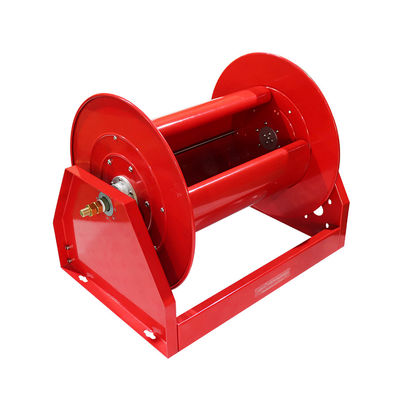

200mts Slip Ring Hand Crank Reels 240v Automatic Retractable Hose Reel Cable Reel
Product Details:
Place of Origin: | Shenzhen,Guangdong |
Brand Name: | JARCH |
Certification: | CE FCC ROHS |
Model Number: | JSR-HM |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | USD$100-500/Piece |
Packaging Details: | Standard Export Paper carton or custom packing |
Delivery Time: | 7 working days |
Payment Terms: | D/P, D/A, T/T, Western Union, MoneyGram,Paypal |
Supply Ability: | 500Piece/week |
Detail Information |
|||
Application: | Industrial Equipment | Hose I.D.: | 3/4",3/8'',1/2'',1/4'' |
---|---|---|---|
Hose Length: | 50 Ft. HOSE/cable | Drive Type: | Motot,hand Crank |
Hose/cable Included: | Yes | Reel Grade: | Heavy Duty Reel |
Shaft Material: | Steel | ||
High Light: | 200mts hand crank reels,Slip Ring hand crank reels,240v Retractable Hose Reel |
Product Description
JARCH 200mts cable reel slip ring hand crank reels 240v automatic retractable cable reel
Vacuum Hose Reels--Ultimate Duty Low Profile Reel
JARCH's series hose reels are designed to facilitate larger diameter 3/4" and 1" hose up to 50 ft. They feature a high quality external drive spring and a heavy gauge all-bolted together frame.,also work for power cable.This is the most compact reel in its class, making it ideal for mounting in truck cabinets or other areas where space is limited. |
Reel Specifications and Dimensions
Benefits
***Robust roller guides - High impact UHMW composite roller guides have outstanding wear and corrosion resistance.
***Containerized external drive spring is easily and safely serviced.
***Ductile iron fluid path is strong and reliable.
***Oversized cast aluminum latch and ratchet combined with a stainless steel latch spring offer the longest possible life.
CAD Drawings
Application
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
4. Hybrid slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
7. Capsule slip ring series
8. Pancake slip ring series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
12.Miniature slip ring series
13.Wind turbine slip ring series
14.Ethernet slip ring series
15.Explosion proof slip ring series
16.Mercury slip ring series
Packaging Details: | Standard Export carton Package |
Delivery Details: | Delivery time for Sample: 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
To increase spring tension:
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until the loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
For how many wraps of "pre-tension" to put on the reel, please reference the chart below.
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact JARCH Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
4.Material leaking from swivel
O-ring worn out or wrong O-ring for material being handled
Replace O-rings with O-ring kit or replace with correct rings for material being handled.
Swivel maybe loose or not enough pipe thread sealant on shaft threads
Replace O-rings with O-ring kit or replace with correct rings for material being handled.
If you have any questions, pls contact us without any hesitation.
