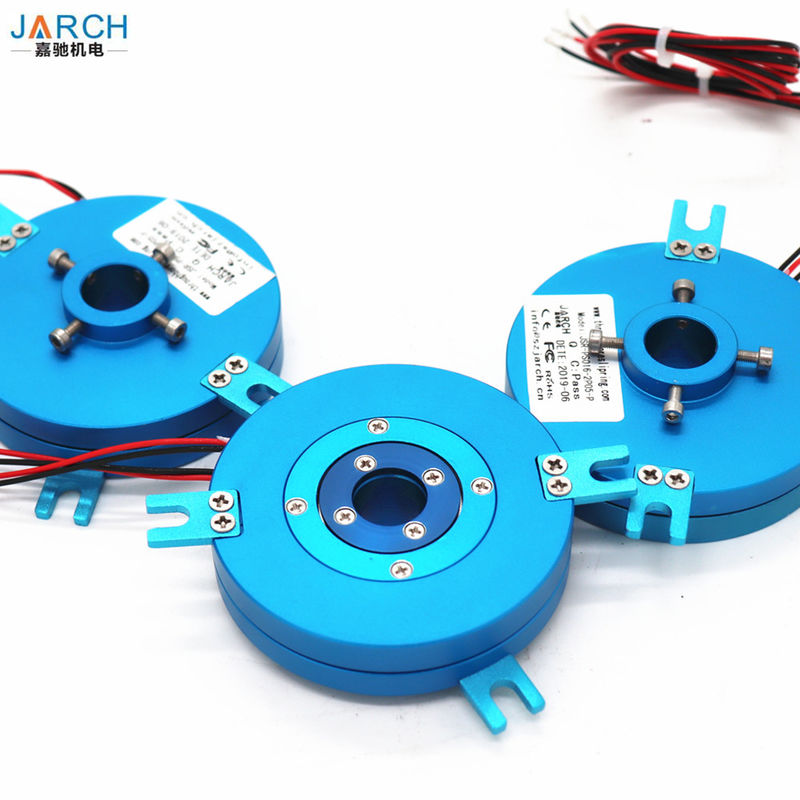

FCC IP54 Hollow Shaft Slip Rings 1000mm ID Electrical Slip Ring
Product Details:
| Place of Origin: | Guangdong,CN |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-PS016-2P05-P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | US$99-300/PIECE |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 WORKING DAYS |
| Payment Terms: | T/T,PAYPAL |
| Supply Ability: | 1000 PICES/ PER WEEK |
|
Detail Information |
|||
| ID: | 3-1000mm | OD: | 10-1500mm |
|---|---|---|---|
| Contact Material: | Precious Metal:Gold-Gold | Housing Material: | Aluminium Alloy |
| Protection Level: | IP54/IP68 | Max Speed: | 250~500RPM |
| Circuits: | 2~72 | Current(A): | 2A/5A/15A/20A/30A |
| High Light: | IP54 Hollow Shaft Slip Rings,FCC Hollow Shaft Slip Rings,1000mm ID Electrical Slip Ring |
||
Product Description
High Speed 50mm Hollow Shaft Slip Rings,Through hole Slip Rings
Through Bore Slip Ring Product Details
Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.
Custom slip rings are also available—Contact us to discuss your custom requirements.
| Size | Body Diameter | Bore Diameter | Signal Count |
| TH03 | 17 mm | 3 mm | 2-8 circuits |
| TH05 | 22 mm | 4.5 mm | 2-8 circuits |
| TH12 | 54 mm | 12.7 mm | 2-24 circuits |
| TH25 | 78 mm | 25.4 mm | 2-48 circuits |
| TH38 | 99 mm | 38.1 mm | 2-48 circuits |
| TH50 | 120 mm | 50 mm | 2-72 circuits |
| TH60 | 135 mm | 60 mm | 2-96 circuits |
| TH70 | 155 mm | 70 mm | 2-96 circuits |
| TH80 | 180 mm | 80 mm | 2-96 circuits |
| TH90 | 190 mm | 90 mm | 2-96 circuits |
| TH100 | 203 mm | 100 mm | 2-96 circuits |
| TH300 | *** | *** | *** |
| TH500 | *** | *** | *** |
JARCH TH Series Through Bore Slip Rings
JARCH TH Series through bore slip rings are ideal for applications where signals and power need to be transferred, and a through-hole is required to pass either a shaft or other feed through. Designed for compact spaces, they are especially well-suited slip rings for use in wind turbines and generators.
High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
TH Series hollow shaft slip rings use Orbex’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.
Features & Benefits of TH Series Through Bore Slip Rings
- Multiple sizes available
- Modular design
- Durable construction for long working life
- Maintenance free operation
- Easily customizable—Contact us for custom slip ring units
- CE and RoHS Compliant
Common Hollow Shaft Slip Ring Applications
- Wind generator slip rings
- Rotary tables
- Packaging machinery
- Bottling machinery
- Cable reel through bore slip rings
- Robotic and automated equipment
- Machinery turrets and tool changers
- Medical equipment
- Downhole inspection equipment
- Pan and tilt heads
Contact JARCH today for the through bore electric slip rings your application needs. Contact us for CAD files and solid models.
Product Effects
| Small generator slip ring | Wind power equipment | Surveillance cameras | Encoder slip ring | Mechanical arm | Beer production equipment |
| Rotating light box | Milk production equipment | Rotary silver plating production line | Helicopter | Rotating camera | Radar communication |
| Rolling machine | Flight equipment | Hot roller | Tank rotating turret | Molding machine | Revolving door |
| Automatic winding machine | Rides | LED advertising light | Production line | High speed ball | Shadowless lamp |
