JARCH 5 circuits 20A slipring flange type slip rings Through bore 25mm electric rotary joint contact



Slip rings are electromechanical devices that permit the transmission of power and/or electrical signals between stationary and rotating structures or equipment. These devices are used in electromechanical systems that require continuous rotation while transmitting power/signals and can improve performance, simplify operation, and eliminate potentially dangerous wires that might otherwise protrude from movable joints.

Operationally, slip rings can be used on any sort of rotating electromechanical equipment to transfer power, control circuits, and/or analog/digital signals. They can commonly be found in everything from electrical generators to wind turbines to heliostats.

In simplified terms, a slip ring provides a way of making an electrical or data connection point through a rotating assembly.

5 circuits 20A slipring flange type slip rings Through bore 25mm electric rotary joint contact



Electrical slip ring Specification



Circuits 5
Current Rating 20A
Voltage 240 V AC/DC
Dielectric Strength ≥1000V@50Hz between circuits
Insulation ≥500MΩ@500VDC
Hole Diameter 25mm
Working Speed 0~300 RPM
Contact Precious metal
Housing AU
Wire Length Stator:300mm; Rotor:300mm
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP54



  •

Electrical slip ring Product Display

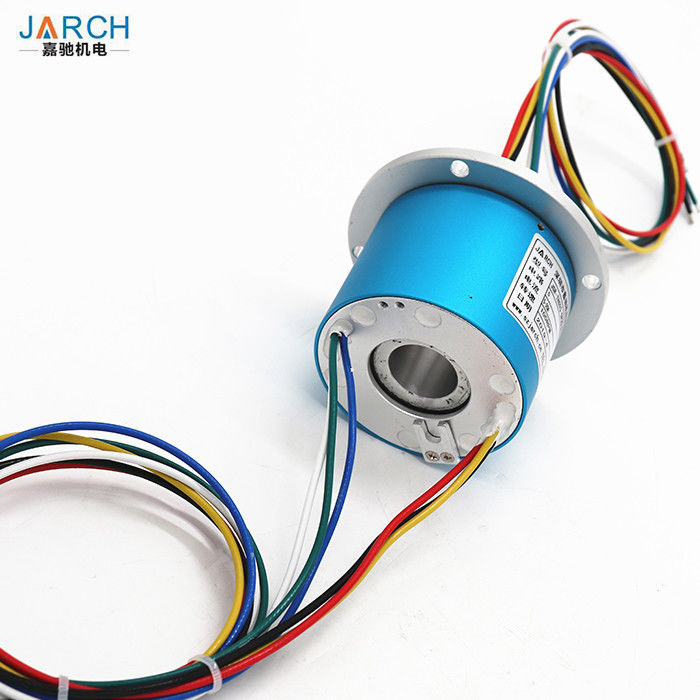

5 Circuits 300RPM 20A Through Bore Slip Ring 25mm Rotary Joint Slip Ring 0



Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufactures like housing or other mounting-related mechanical parts.

Through Bore Slip Ring Product Details

Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.

Custom slip rings are also available—Contact us to discuss your custom requirements.

5 Circuits 300RPM 20A Through Bore Slip Ring 25mm Rotary Joint Slip Ring 1
JARCH TH Series Through Bore Slip Rings

5 Circuits 300RPM 20A Through Bore Slip Ring 25mm Rotary Joint Slip Ring 2
5 Circuits 300RPM 20A Through Bore Slip Ring 25mm Rotary Joint Slip Ring 3
5 Circuits 300RPM 20A Through Bore Slip Ring 25mm Rotary Joint Slip Ring 4

JARCH TH Series through bore slip rings are ideal for applications where signals and power need to be transferred, and a through-hole is required to pass either a shaft or other feed through. Designed for compact spaces, they are especially well-suited slip rings for use in wind turbines and generators.



Through bore size 3mm to 900mm

Circuit number 2-350

Operation speed:up to 250rpm, 800rpm, 1500rpm

Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.

Power circuit and Ethernet signal circuit can be integrated to one unit slip ring

ABS plastic housing and AL housing are optional

Flexible, color-coded, silver-plated, Teflon® insulated lead wires

Contact material silver to silver coating

Standard wire leads length is 500mm

Standard temperature is -20°C to +80°C

Insulation strength 500V AC@50HZ 60S

Insulation resistant 500MΩ 500VDC

Long life cycles up to 80 million cycles

Protection grade IP 51, IP54, IP 65

Ethernet circuits can transmission 100Mbps, 1Giga data.

Features & Benefits of TH Series Through Bore Slip Rings



  • Multiple sizes available
  • Modular design
  • Durable construction for long working life
  • Maintenance free operation
  • Easily customizable—Contact us for custom slip ring units
  • CE and RoHS Compliant

High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
TH Series hollow shaft slip rings use Orbex’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.



Contact JARCH today for the through bore electric slip rings your application needs. Contact us for CAD files and solid models.



5 Circuits 300RPM 20A Through Bore Slip Ring 25mm Rotary Joint Slip Ring 5



Common Hollow Shaft Slip Ring Applications

  • Wind generator slip rings
  • Rotary tables
  • Packaging machinery
  • Bottling machinery
  • Cable reel through bore slip rings
  • Robotic and automated equipment
  • Machinery turrets and tool changers
  • Medical equipment
  • Downhole inspection equipment
  • Pan and tilt heads
  • Typical Applications:

    Industrial machinery-machining center, rotary index table

    Heavy equipment turrets, cable reels, test equipment

    Packaging machines, palletizing machines, magnetic clutch

    Process equipment

    Rotary sensors, emergency lighting, robotics

    Medical equipment

    radar system

    labeling
