100RPM 2 Circuits 10A IP54 16mm Through Bore Slip Ring
|Place of Origin:||Guangdong,CN|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 PCS|
|Packaging Details:||Standard Export Package|
|Delivery Time:||5-8 WORKING DAYS|
|Supply Ability:||1000 PICES/ PER WEEK|
|Contact Material:||Precious Metal:Gold-Gold||Housing Material:||AU,S304/316|
16mm Through Bore Slip Ring,
IP54 Through Bore Slip Ring,
10A Welding Equipment Slip Ring

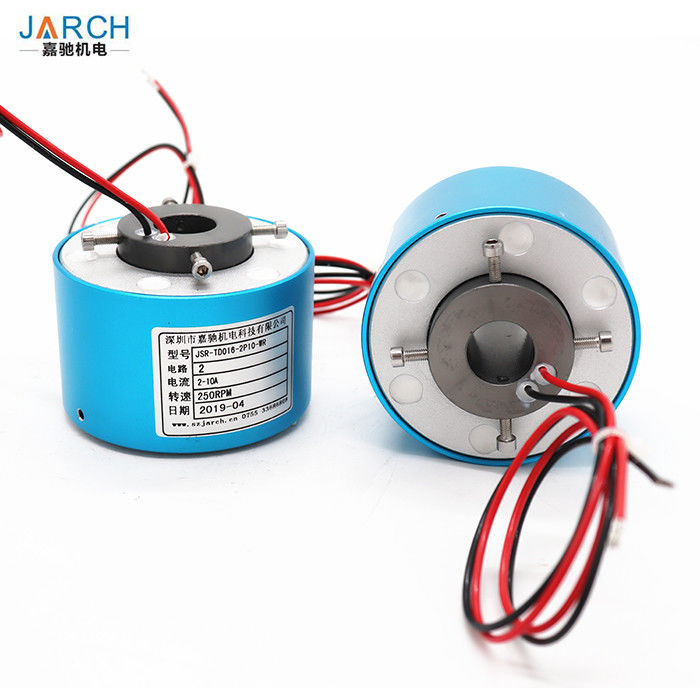

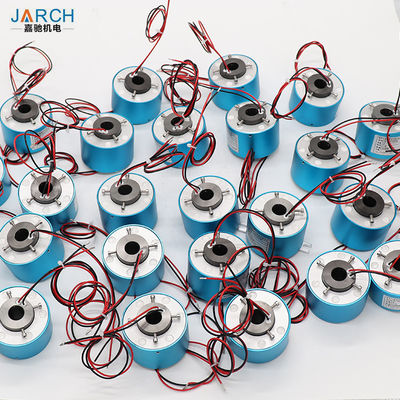

IP54 16mm Through Hole Slip Ring Of 2 Circuits 10A For Welding Equipments
Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufactures like housing or other mounting-related mechanical parts.
Through Bore Slip Ring Product Details
Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.
Custom slip rings are also available—Contact us to discuss your custom requirements.
|Size||Body Diameter||Bore Diameter||Signal Count|
|TH03||17 mm||3 mm||2-8 circuits|
|TH05||22 mm||4.5 mm||2-8 circuits|
|TH12||54 mm||12.7 mm||2-24 circuits|
|TH25||78 mm||25.4 mm||2-48 circuits|
|TH38||99 mm||38.1 mm||2-48 circuits|
|TH50||120 mm||50 mm||2-72 circuits|
|TH60||135 mm||60 mm||2-96 circuits|
|TH70||155 mm||70 mm||2-96 circuits|
|TH80||180 mm||80 mm||2-96 circuits|
|TH90||190 mm||90 mm||2-96 circuits|
|TH100||203 mm||100 mm||2-96 circuits|
JARCH TH Series Through Bore Slip Rings
JARCH TH Series through bore slip rings are ideal for applications where signals and power need to be transferred, and a through-hole is required to pass either a shaft or other feed through. Designed for compact spaces, they are especially well-suited slip rings for use in wind turbines and generators.
Through bore size 3mm to 900mm
Circuit number 2-350
Operation speed:up to 250rpm, 800rpm, 1500rpm
Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.
Power circuit and Ethernet signal circuit can be integrated to one unit slip ring
ABS plastic housing and AL housing are optional
Flexible, color-coded, silver-plated, Teflon® insulated lead wires
Contact material silver to silver coating
Standard wire leads length is 500mm
Standard temperature is -20°C to +80°C
Insulation strength 500V AC@50HZ 60S
Insulation resistant 500MΩ 500VDC
Long life cycles up to 80 million cycles
Protection grade IP 51, IP54, IP 65
Ethernet circuits can transmission 100Mbps, 1Giga data.
Features & Benefits of TH Series Through Bore Slip Rings
- Multiple sizes available
- Modular design
- Durable construction for long working life
- Maintenance free operation
- Easily customizable—Contact us for custom slip ring units
- CE and RoHS Compliant
High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
TH Series hollow shaft slip rings use Orbex’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.
Contact JARCH today for the through bore electric slip rings your application needs. Contact us for CAD files and solid models.
Common Hollow Shaft Slip Ring Applications
- Wind generator slip rings
- Rotary tables
- Packaging machinery
- Bottling machinery
- Cable reel through bore slip rings
- Robotic and automated equipment
- Machinery turrets and tool changers
- Medical equipment
- Downhole inspection equipment
- Pan and tilt heads
Industrial machinery-machining center, rotary index table
Heavy equipment turrets, cable reels, test equipment
Packaging machines, palletizing machines, magnetic clutch
Rotary sensors, emergency lighting, robotics
