120A Bore 60mm 10 Circuits 250rpm Rotary Slip Ring
|Place of Origin:||Guangdong,CN|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 PCS|
|Packaging Details:||Standard Export Package|
|Delivery Time:||5-8 WORKING DAYS|
|Supply Ability:||1000 PICES/ PER WEEK|
|Contact Material:||Precious Metal:Gold-Gold||Housing Material:||Aluminium Alloy|
Bore 60mm Rotary Slip Ring,
250rpm Rotary Slip Ring,
120A Hollow Shaft Slip Ring

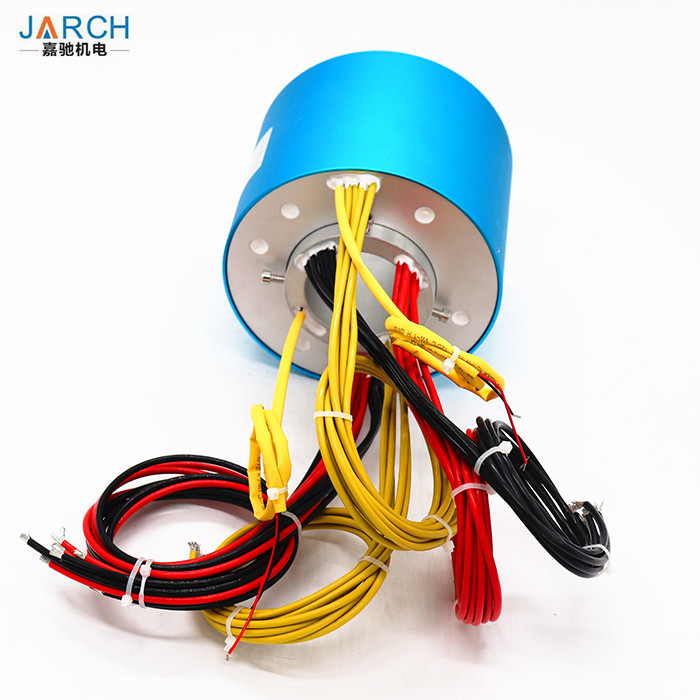

Bore Size 60mm 10 Circuits Contact Points 120A Rotary Union 3 Signals Hollow Shaft Slip Ring Cable Reel
JARCH TH Series Through Bore Slip Rings
JARCH TH Series through bore slip rings are ideal for applications where signals and power need to be transferred, and a through-hole is required to pass either a shaft or other feed through. Designed for compact spaces, they are especially well-suited slip rings for use in wind turbines and generators.
Through bore size 3mm to 900mm
Circuit number 2-350
Operation speed:up to 250rpm, 800rpm, 1500rpm
Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.
Power circuit and Ethernet signal circuit can be integrated to one unit slip ring
ABS plastic housing and AL housing are optional
Flexible, color-coded, silver-plated, Teflon® insulated lead wires
Contact material silver to silver coating
Standard wire leads length is 500mm
Standard temperature is -20°C to +80°C
Insulation strength 500V AC@50HZ 60S
Insulation resistant 500MΩ 500VDC
Long life cycles up to 80 million cycles
Protection grade IP 51, IP54, IP 65
Ethernet circuits can transmission 100Mbps, 1Giga data.
High Performance, Long-Life Hollow Shaft Slip Rings
Also known as hollow shaft slip rings, our through bore slip rings use a modular design that allows for unprecedented flexibility with respect to package size and circuit count. We can provide numerous combinations of high current power circuits and low current signal circuits to meet your application requirements.
Standard units can be supplied in any of ten standard sizes, with bore diameters from 3mm to 100mm. Large diameter through bore slip rings are available as custom solutions.
TH Series hollow shaft slip rings use Orbex’s advanced channeled brush technology to greatly increase service life. This innovative design provides multiple contact points and low contact force, dramatically reducing wear in demanding applications.
Continuous transmission of signal and data under 360° rotation freely
Apply advanced fiber brush technology, free of maintenance or lubricating oil.
Low torque, smooth rotation
Electrical noise＜0.01 Ω
Multi-contact points in each circuit, low contact pressure, low noise, low contact wear
Standardized & modularized design;
Customized solutions also available
Through Bore Slip Ring Product Details
Whether you’re looking for a wind generator slip ring, slip rings for robotic manufacturing equipment, or a solution for any other challenging application, JARCH has what you need. General specifications for our hollow shaft slip rings are listed below.
Custom slip rings are also available—Contact us to discuss your custom requirements.
|Size||Body Diameter||Bore Diameter||Signal Count|
|TH03||17 mm||3 mm||2-8 circuits|
|TH05||22 mm||4.5 mm||2-8 circuits|
|TH12||54 mm||12.7 mm||2-24 circuits|
|TH25||78 mm||25.4 mm||2-48 circuits|
|TH38||99 mm||38.1 mm||2-48 circuits|
|TH50||120 mm||50 mm||2-72 circuits|
|TH60||135 mm||60 mm||2-96 circuits|
|TH70||155 mm||70 mm||2-96 circuits|
|TH80||180 mm||80 mm||2-96 circuits|
|TH90||190 mm||90 mm||2-96 circuits|
|TH100||203 mm||100 mm||2-96 circuits|
Features & Benefits of TH Series Through Bore Slip Rings
- Multiple sizes available
- Modular design
- Durable construction for long working life
- Maintenance free operation
- Easily customizable—Contact us for custom slip ring units
- CE and RoHS Compliant
Common Hollow Shaft Slip Ring Applications
- Wind generator slip rings
- Rotary tables
- Packaging machinery
- Bottling machinery
- Cable reel through bore slip rings
- Robotic and automated equipment
- Machinery turrets and tool changers
- Medical equipment
- Downhole inspection equipment
- Pan and tilt heads
Industrial machinery-machining center, rotary index table
Heavy equipment turrets, cable reels, test equipment
Packaging machines, palletizing machines, magnetic clutch
Rotary sensors, emergency lighting, robotics
Contact JARCH today for the through bore electric slip rings your application needs. Contact us for CAD files and solid models.
