1000psi 200ft 2 Wheels Reel Cart 50m Optical Fiber Drum roller,hand crank type hose reel cable reel
|Place of Origin:||China|
|Model Number:||CA32112 L-wheel|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Carton Box Package,export carton|
|Delivery Time:||10 days|
|Payment Terms:||D/P, T/T, Western Union,Paypal|
|Supply Ability:||1000 set/month|
|Material:||Metal||Type:||Hot Sell Outdoor Hose Reel|
|Color:||Black And Red And Customize||Product Name:||Hose Reel,Auto Retractable Diesel Hose Ree|
|Length:||10m 15m 20m 25m 30m 35m For Option||Usage:||Irrigation,Clean House.water Flower,AIR/ELECTRICITY/WATER TRANSMISSION,water Garden,clean Floo|
|Metal Type:||Steel||Package:||Carton Box Package,export Carton|
|Size:||1" 3/4"1/2" 3/8",25FT/50FT/75FT/100 FT/ OEM||Application:||120volt Cord Reel 50m Cable Reel Stand Empty Optical Fiber Drum 2 Wheels Reel Cart|
200ft Optical Fiber Drum,
1000psi Optical Fiber Drum

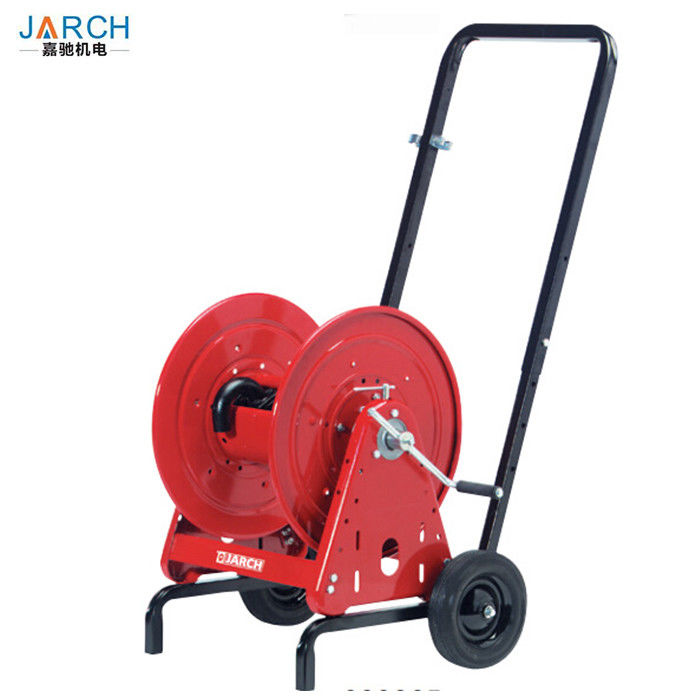

Steel Reel Works 1000psi 200ft. Heavy Duty Hand Crank Air Water Hose Reel Drum
120volt cord reel 50m cable reel stand empty optical fiber drum 2 wheels reel cart
Download the CAD Drawing: 2D Drawing 3X112PDF.pdf
JARCH Cable Reels provide a superior solution to compactly manage large lengths of cable for your applications.
• Industrial Duty Spring Reels
• Mill Duty Spring Reels
• Motorized Reels
• Slip Ring Assemblies
1. Material Composition: Steel & rubber
2. Diamensions: Contact us to get more informations
3. Package: Carton Box
4. Wheel: 2 wheels and 4 wheels
5. QTY: 550PCS/40'HC
6. Four / Two wheel durable hose reel cart
Reel Specifications and Dimensions
|Part Number||CA32112 L|
|Hose I.D. (in)||1/2"|
|Hose O.D. (in)||.750|
|Hose Length (ft)||200|
|Hose End (in)|
|Inlet (in)||1/2 NPT(F)|
|Reel Outlet (in)||1/2 NPT(F)|
|Max Temperature (°F)||250|
Fluid Path Materials
Heavy Duty Hand Crank Hose Reel
General Air Hose Reels Benefits
- Hose replacement made easy - the goose neck can easily be removed to simplify adding long lengths of hose to the reel.
- Full flow stress free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
- Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.
- Easy to add tension - The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.
To increase spring tension:
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact jarch Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
4.Reel will not latch
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
|Packaging Details:||Standard Export carton Package|
|Delivery Details:||Delivery time for Sample: 5 days / Delivery time for Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......
