Product Details:

Place of Origin: CHINA
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-CRES-L9000-0980-E2

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: US$400-1000/SET
Packaging Details: Standard Export WOODEN carton or custom packing,Bare Reel for Ethernet Cable Reels Power Cord Reels
Delivery Time: 5-15 DAYS
Payment Terms: D/P, T/T, Western Union,PAYPAL
Supply Ability: 1000SET/WEEK
Get Best Price Contact Now

Detail Information

Cord Ending: Bare Reel Material: Steel,S304,S316
Length: 10~30M Conductors: 4
Application: Telecommunication Product Name: Bare Reel For Ethernet Cable Reels Power Cord Reels
High Light:

30m auto retractable hose reel

,

s316 retractable extension cord reel

Product Description

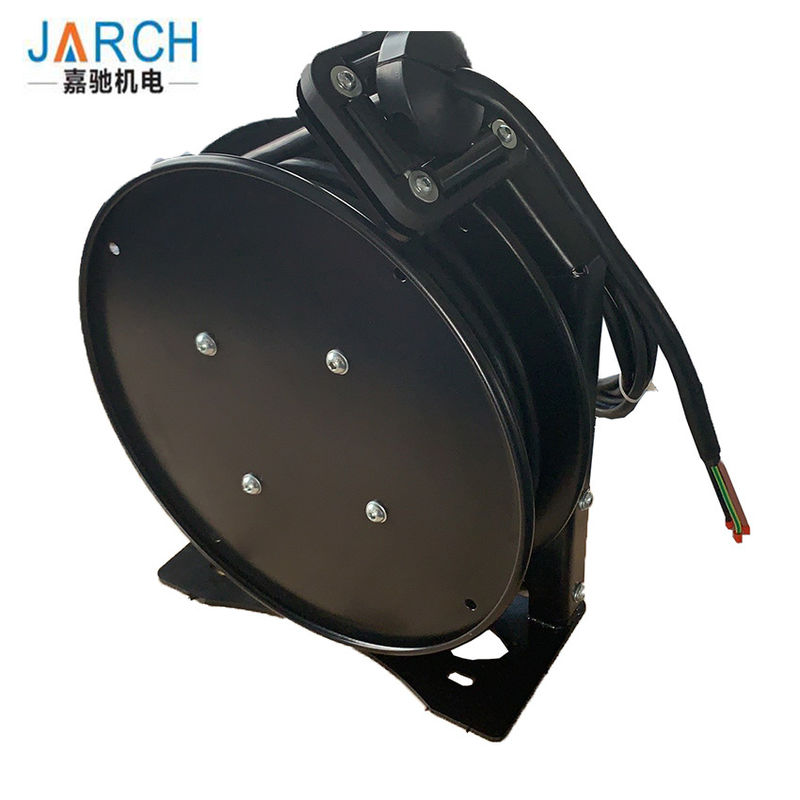

JARCH Auto retractable Compact efficient Heavy Duty Power Cord Reel with no Accessory

Product Description

JARCH’s series L 9000 power cord reels offer many different styles of outlets. Easy to mount and structurally strong, the power cord reels have robotically welded heavy gauge steel frame that attaches to most structurally sound surfaces. For indoor, non-weather tight applications only.

Auto Retractable steel s304 S316 Heavy Duty Power Cord cable Reel 0Auto Retractable steel s304 S316 Heavy Duty Power Cord cable Reel 1Auto Retractable steel s304 S316 Heavy Duty Power Cord cable Reel 2







Auto Retractable steel s304 S316 Heavy Duty Power Cord cable Reel 4 Auto Retractable steel s304 S316 Heavy Duty Power Cord cable Reel 5
We powder coat parts individually before installation for superior coverage and better protection against corrosion. You won't have to worry about your spring losing its strength or breaking from normal usage.



Features of Auto-Retractable steel s304 S316 Heavy Duty Power Cord cable Reel



***Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.



*** Heavy duty collector ring – A robust collector ring assures maximum conductivity current flow.



*** Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.



*** Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.





Packaging & Shipping
Packaging Details: Standard Export Carton or Wooden Package
Delivery Details: Delivery time for Sample: 5 days / Delivery time for Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......



Auto Retractable steel s304 S316 Heavy Duty Power Cord cable Reel 6



FAQ



To increase spring tension:

Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.



To reduce spring tension:

This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.

*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.



2.How do I install a new drive spring and set pre-turns?



We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.



3.Can my spring driven reel be made "constant tension"?



While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.

Please contact Reelcraft Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.



4.Reel will not latch



This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
