JARCH Bare Ethernet Cable Compact Cable Reel , Power Cord Reels 4 Conductors spring cable reel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JARCH |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-L7000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US$400-1000/SET |
| Packaging Details: | Standard Export WOODEN carton or custom packing,Bare Reel for Ethernet Cable Reels Power Cord Reels |
| Delivery Time: | 5-15 DAYS |
| Payment Terms: | D/P, T/T, Western Union,PAYPAL |
| Supply Ability: | 1000SET/WEEK |
|
Detail Information |
|||
| Cord Ending: | Bare Reel | Material: | Steel,S304,S316 |
|---|---|---|---|
| Length: | 10~30M | Conductors: | 4 |
| Application: | Telecommunication | Product Name: | Bare Reel For Ethernet Cable Reels Power Cord Reels |
| High Light: | extension cord reel,extension cable reel |
||
Product Description

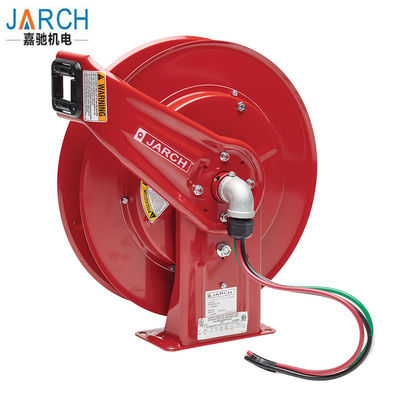

JARCH Bare Reel for Ethernet Cable Reels Power Cord Reels
JARCH’s series L 7000 power cord reels offer many different styles of outlets. Easy to mount and structurally strong, the power cord reels have robotically welded heavy gauge steel frame that attaches to most structurally sound surfaces. For indoor, non-weather tight applications only.
|
|
| We powder coat parts individually before installation for superior coverage and better protection against corrosion. | You won't have to worry about your spring losing its strength or breaking from normal usage. |
Reel Specifications
| Weight | 41 lbs |
|---|---|
| Series | L 7000 |
| Cord Ending | Bare Reel |
| AWG | 6 |
| Cord/Cable Length | 35' |
| Volts | 220 |
| Amps | 45 |
| Conductors | 4 |
| Cord/Cable Included | No |
| Type | SOOW |
Features
***Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
*** Heavy duty collector ring – A robust collector ring assures maximum conductivity current flow.
*** Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
*** Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
| Packaging Details: | Standard Export Carton or Wooden Package |
| Delivery Details: | Delivery time for Sample: 5 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
To increase spring tension:
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact jarch Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
Founded in 2006, Shenzhen JARCH Electromechanical Technology Co., Ltd. is located in Shenzhen,China. We are a professional enterprise engaged in the manufacture and sale of Cable Reels & Hose Reels. We can supply a wide range of products to meet ever-changing market demands. Customized orders are welcomed,we can offer the best solution for your equipments.Outputting 1,000,000 sets every year, our main markets include North America,Eastern Europe,South Asia,Northern Europe,Western Europe,Oceania. Our company insists on the principle of Providing the High quanlity Product to customer in the Best Price.We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Please contact us at any time for more information.
