Metal Retractable Hose Reel Multi Positional Guide Arm Facilitates Ceiling / Wall / Floor Mount hose reels
Product Details:
Place of Origin: | China |
Brand Name: | JARCH |
Certification: | CE,FCC,ROHS |
Model Number: | 7800 OLB21 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | US$500-1000 |
Packaging Details: | Standard Export Paper carton or custom packing,ceiling, wall or floor mount Metal Clean Air Hose Reel |
Delivery Time: | 15 days |
Payment Terms: | D/P, T/T, Western Union,PAYPAL |
Supply Ability: | 1000 unit/week |
Detail Information |
|||
Material: | Metal | Hose Length: | 50 Ft./15m |
---|---|---|---|
Hose Included: | No | Hose I.D: | 1/2 In(13mm) |
Hose O.D: | 7/8 In( 22mm) | Drive Type: | Spring |
Max Pressure: | 500 Psi/35 Bar | ||
High Light: | cable reel drum,extension cord reel |
Product Description

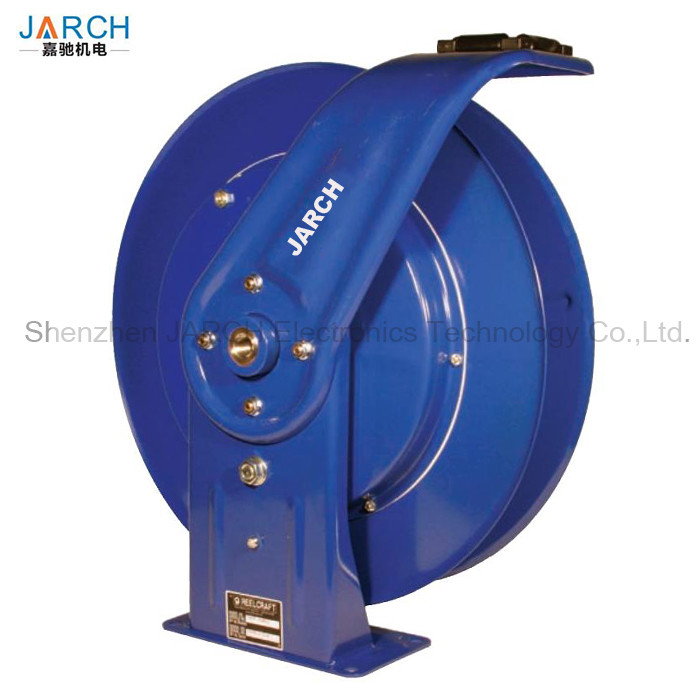

JARCH Multi-positional guide arm facilitates ceiling, wall or floor mount Metal Clean Air Hose Reel
JARCH's
Series 7000 is now available as a safe and efficient respitory
component. It features strength and reliability as with every other Series
7000, and in addition the fluid path is non-corrosive stainless steel.
Reelcraft’s 7800 OLB21 clean air reel is designed to reduce the operator’s
burden of managing long lengths of hose. When the reel is not in use,
expensive respitory hoses are stored up and out of harms way. The reel
holds 50’ of 1/2” I.D. neoprene hose.
|
JARCH Multi-positional guide arm facilitates ceiling, wall or floor mount Metal Clean Air Hose Reel
Reel Specifications and Dimensions
JARCH Multi-positional guide arm facilitates ceiling, wall or floor mount Metal Clean Air Hose Reel
Benefits
JARCH Multi-positional guide arm facilitates ceiling, wall or floor mount Metal Clean Air Hose Reel
Installation
CAUTION
Be sure reel base is securely grounded to mounting surface. Check for continuity following installation. On painted surfaces, remove paint at bolt location, use external tooth lockwashers or run ground wire from reel base to grounded object. Failure to ground will prevent reel from performing its intended function and could result in personal injury.
Mount reel to grounded, metal surface using four holes in mounting base. To minimize wear on cable and cable guide, reel should be
mounted in direct line with work so that cable is pulled out as straight as possible during use. See figures 1 & 2.
Application
If you have any questions, please contact us without any hesitation.
JARCH Multi-positional guide arm facilitates ceiling, wall or floor mount Metal Clean Air Hose Reel
Packaging Details: | Standard Export carton Package |
Delivery Details: | Delivery time for Sample: 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
To increase spring tension:
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact jarch Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
4.Reel will not latch
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
