Signal Coaxial Line High Speed Slip Ring Medium Frequency 10M / 100M / 1000M Base T

China Signal Coaxial Line High Speed Slip Ring Medium Frequency 10M / 100M / 1000M Base T supplier

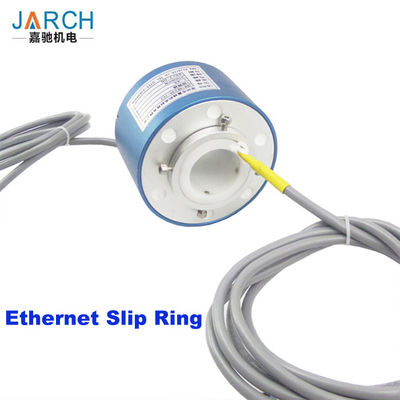

Large Image :  Signal Coaxial Line High Speed Slip Ring Medium Frequency 10M / 100M / 1000M Base T

Product Details:

Place of Origin: Guangdong,CN
Brand Name: JARCH
Certification: CE,FCC,ROHS
Model Number: JSR-MF038

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: US$100-300/PER PIECE
Packaging Details: CUSTOM PACKAGE
Delivery Time: 5-8 WORKING DAYS
Payment Terms: T/T,PAYPAL
Supply Ability: 1000PCS/PER WEEK
Contact Now
Detailed Product Description
Ethernet: 10M / 100M / 1000M BaseT Size: 40mm-100mm
Application: Rotating Stage Lights, Cable Ree Rating Current: 5A /Ring,10A /Ring,15A /Ring
Speed: 300Rpm/min Torque: 100N.cm
Seal Class: IP54 (IP68 Options) Can Combine More Circuits: 1-126 Rings

Product Description



JSR-MF038 series broadband conductive sliding rings, 25.4mm diameter through hole (applicable to any <=25.4mm), 86mm aluminum alloy structure of integral precision conductive sliding rings, can mix transmission power and current, signal, high-speed signal, etc. It has low torque, low loss and maintenance-free; low electrical noise, ultra-long life and other characteristics.


Integral precise conductive sliding ring with all-aluminium alloy structure can mix power, current, signal, high-speed signal, etc. It has the characteristics of low torque, low loss and maintenance-free, low electrical noise and long service life.



The JSR-MF038 series broadband slip ring Transmission Protocol is as below:

·232 485 422 protocol
·Profibus, LonWorks,CanBus,Video
·Device Net,Control Net
·USB 1.0,USB2.0

Ethernet:10M / 100M / 1000M BaseT



Ethernet Slip Ring2.jpg



Drawing of Broadband medium frequency USB high speed data line signal coaxial line Ethernet Slip Ring

Ethernet Slip Ring2drawing.jpg

Features



1. modular design, to meet the needs of higher current, speed, shape and so on.
2. diversified appearance to support more installation requirements
3. support signal, power supply and its mixed transmission.
4. unique contact design provides longer life and maintenance free operation (without lubricants).
5. supports 1-126 channel extensions.
6. it can be widely used in the industrial field.



Applications



1. industrial machinery:
Drilling platform, winding machine, end face processing machine, hot rolling machine
2. rotary table:
Winding machine, filling machine, bottle blowing machine, amusement equipment
3. cable reel:
Port machinery, hoisting and lifting equipment, Luqiao machinery and tower
4. test equipment:
Centrifuge test stand, separator and tester
5. robot:
Packaging equipment, stacking machine, process control equipment, press machine
6. exhibition / display equipment:
Car booth, revolving door, product booth, rotary restaurant
7. medical equipment:
Shadowless operating lights, helicopters, radar communication equipment
