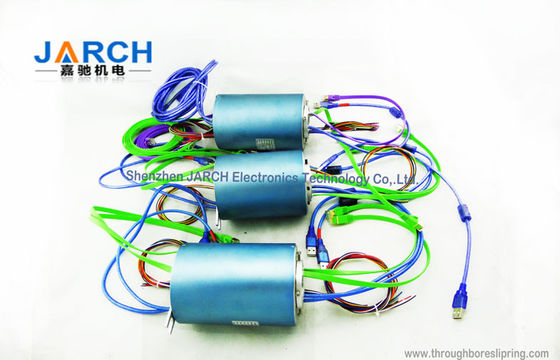

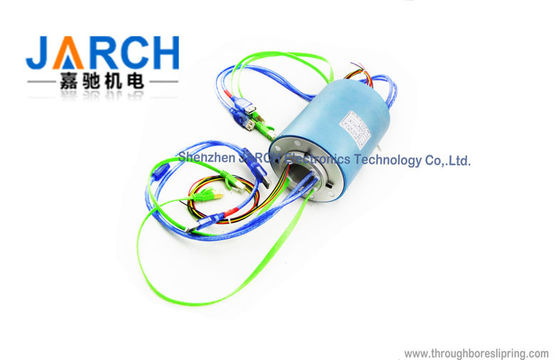

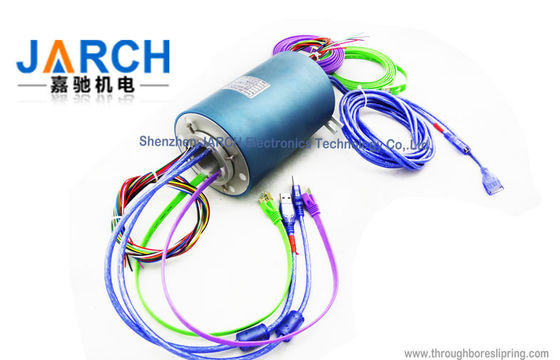

500Rpm 2 Channel USB Ethernet Slip Ring 1000Base-T Through Bore Size 20.4mm

China 500Rpm 2 Channel USB Ethernet Slip Ring 1000Base-T Through Bore Size 20.4mm supplier

Large Image :  500Rpm 2 Channel USB Ethernet Slip Ring 1000Base-T Through Bore Size 20.4mm

Product Details:

Place of Origin: Shenzhen , China
Brand Name: JARCH
Certification: CE, FCC,UL,ROHS
Model Number: JSR-HE020

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: US $ 100 - 200 / Piece
Packaging Details: Gift box or custom packing
Delivery Time: 5-10 days
Payment Terms: Ex-works, L/C,T/T, Western Union, MoneyGram
Supply Ability: 500CS/week
Detailed Product Description
Rings: 2-36 Connector: RJ45
Circuits: (2~24)2A +(1~2)1000Base-T+(1~2)USB Inner Size: 20.4mm
Outer Size: 78mm Lead Length: 300mm
Lead Wire: UL Teflon® Awg26,Awg22 Housing Material: Aluminium Alloy
Contact Material: Precious Metal:Gold-Gold Current: 2A/5A/10A
Voltage: 220Vac/Vdc Max Speed: 500 RPM
Broadband: Ethernet ( 1000 BaseT)

500Rpm 2 Channel USB Ethernet Slip Ring 1000Base-T Through Bore Size 20.4mm



Feature:

1.standard and on stock

2.Color-coded lead wires

3.Very low electric noise

4.Anti-jamming ,very low cost

5.Broadband:ethernet ( 1000 BaseT)



Quick Details:



Model Number: JSR-HE020 Inner Size(mm): 20.4mm
Outer Size: 78mm Circuits: (2~24)2A +(1~2)1000Base-T+(1~2)USB
Volt AC/DC(V): mV~200Vac/Vdc Current(A):  2A/5A/10A
Speed(rpm): 1~500RPM broadband:  Ethernet ( 1000 BaseT),





Packaging & Delivery:



Packaging Details: Standard Export carton Package
Delivery Details:

Delivery time:15 days after got the payment

Shipping:BY DHL, FedEx, UPS or TNT......



Description:


Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

The HE025 support 4 channel 1000M baseT ethernet slip rings, with through bore size 25.4mm(1.0"), overall diameter 78mm, are standard, off-the-shelf, Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.



Benefits:

  • Unique signal handling performance with minimal electrical circuit noise
  • Very low electric noise
  • Anti-jamming ,very low cost
  • Very low contact resistance (Less than 1mΩ)
  • No maintenance and better reliability than traditional sling rings
  • Suitable for signal and power transfer of rotating devices or instruments

Dimensions:

500Rpm 2 Channel USB Ethernet Slip Ring 1000Base-T Through Bore Size 20.4mm





Specifications





Ethernet Spec
Ethernet 100M/1000M base T Connector RJ45/USB
Power/Signal
Rings 2~36 Current Signal(2A) or 5A,10A,
Voltage mV~200VDC/VAC Max speed 500RPM
Through bore size 20.4mm(0.5") Overall diameter 78mm(2.2")
Housing Material Aluminium Alloy Torque 0.05N.m;+0.03N.m/6rings
Working life 50million Contact material Gold-Gold
Electrical noise <5 mΩ Contact Resistance <2mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon® Awg26,Awg22
Insulation resistance 500MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54
Materials Lead Free, ROHS Certified CE,FCC





Applications:



• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels



Installation Instructions
